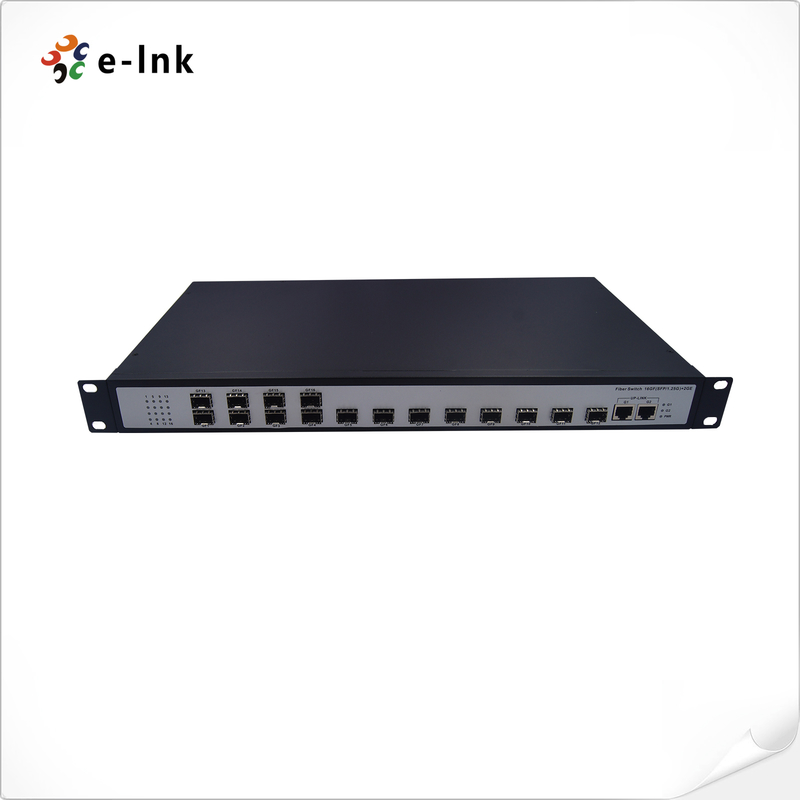

Unmanaged 16-port 100Base-FX SFP + 2-10/100/1000-TX Switch

Name: Unmanaged 16-port 100Base-FX SFP + 2-10/100/1000-TX Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-FS162
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-FS162

Document: E-link LNK-FS162 Series Fib....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Operating Temperature:	-10°C To 60°C	Dimension:	485 X 235 X 45 Mm
Weight:	2560g	Max Packet Length::	1522 Bytes
Casing:	Metal Case, IP40 Protection

Operating Temperature:	-10°C To 60°C
Dimension:	485 X 235 X 45 Mm
Weight:	2560g
Max Packet Length::	1522 Bytes
Casing:	Metal Case, IP40 Protection

Description

Unmanaged 16-port 100Base-FX SFP + 2-10/100/1000-TX Switch

Unmanaged 16-port 100Base-FX SFP + 2-10/100/1000-TX Switch

Product Advantages

► 16x100Base-FX SFP Ports + 2x10/100/1000Base-TX Ports

► Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDI-X at TX

► Supports external 100BASE SFP hot swap

► Supports 8K MAC address

► 1M bits frame buffer memory

► 19-inch 1U Rack

► Operating Temperature: -10°C to 60°C

► 110~240VAC Power Inputs

► Aluminum Case

► Lightning Protection Design

► 3-Year Warranty

Technical Indexes

Ethernet
Max Packet Length:	1522 Bytes
Address Table Size:	8K MAC Addresses
RJ45 Port	2*10/100/1000Base-T(X)
Optical Port:	16*100Base-X SFP
Environmental
Operating Temperature:	-10°C to 60°C
Storage Temperature:	-40°C to 85°C
Relative Humidity:	5% to 95% non-condensing
Electrical and Mechanical
Input Power:	110~220VAC
Power Consumption:	25W Max. ( Off-load)
	40W Max. (Full load)
Dimensions (WxDxH):	485 x 235 x 45 mm
Weight:	2560g
Casing:	Metal Case, IP40 protection
Regulatory Approvals
ISO9001
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV
