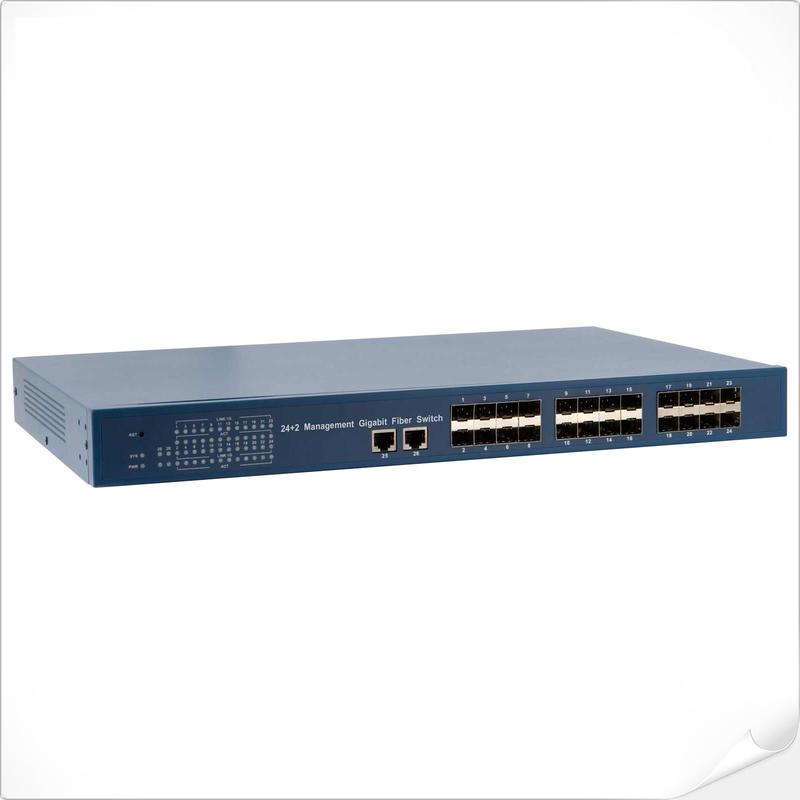

24SFP + 2xRJ45 Management Gigabit Fiber Switch

Name: 24SFP + 2xRJ45 Management Gigabit Fiber Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-FS242
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-FS242

Document: E-link LNK-FS242G Series Fi....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Operating Temperature:	0℃～40℃	Dimension:	440x230x44mm (1U19-inch Standard Chassis)
Power Consumption:	60W	MAC Address Table:	8K

Operating Temperature:	0℃～40℃
Dimension:	440x230x44mm (1U19-inch Standard Chassis)
Power Consumption:	60W
MAC Address Table:	8K

Description

24SFP + 2xRJ45 Management Gigabit Fiber Switch

24SFP + 2xRJ45 Management Gigabit Fiber Switch

Product Advantages

► Support for 802.1x authentication, and to provide users with access to authentication

► Wire-speed filtering - Storage - forward mode, providing a true non-blocking switching structure

► Support the function of port mirroring, port gathering, port speed limit

► Support the port-based VLAN and IEEE802.1Q based on VLAN

► Storm suppression: can be set with the Broadcast, multicast, DLF traffic

► Spanning Tree: Support the standard of IEEE 802.1d and IEEE 802.1w (Rapid Spanning Tree Protocol) and IEEE802.1s (Multiple Spanning Tree Protocol)

Technical Indexes

Product Type	24SFP Management gigabit fiber network switches
Support agreement	IEEE802.3, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak
Maximum frame length	9216B
Ports	24 1000M SFP optical ports + 2 Gigabit Rj45
Network Media	1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km.
Network Media	1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters.
VLAN Address Table	4K
MAC address table	8K
Cache	32Mbits
Backplane bandwidth	48Gbit
Filtering and forwarding rate	1000Mbps:1488000pps
Dimensions	440x230x44mm (1U19-inch standard chassis)
Use of the environment	Operating Temperature: 0℃～40℃;
	Humidity 10% ~ 90% non-condensing
	Storage temperature: -20℃~70℃; Storage Humidity 5% ~ 90% non-condensing
Power	Input :90-264VAC ,50-60HZ; output: 5V/12A
Power consumption	Power consumption: 60W

Overview

LNK-FS242 Management Gigabit fiber network switch is a L2/L4 Gigabit Managed Fiber Switch with 24 1000M SFP optical ports and 2 Rj45 Ports. The hard ware supports wire-speed switching of the second layer. Users can set all kinds of functions of the switch through the Ethernet port in WEB. Built-in ARP and DOS defense system can effectively defense the ARP, DOS and various virus attack, moreover, It is also equipped with many powerful features: a comprehensive QoS, spanning tree, a storm suppression, Bandwidth Control, IGMP Snooping, ACL access control, DHCP snooping etc. Very suitable for small and medium-sized enterprises, campus network, and the metropolitan area network aggregation applications.

Orderinng Information

Item	Description
LNK-FS242	24SFP + 2xRJ45 Management Gigabit Fiber Switch
