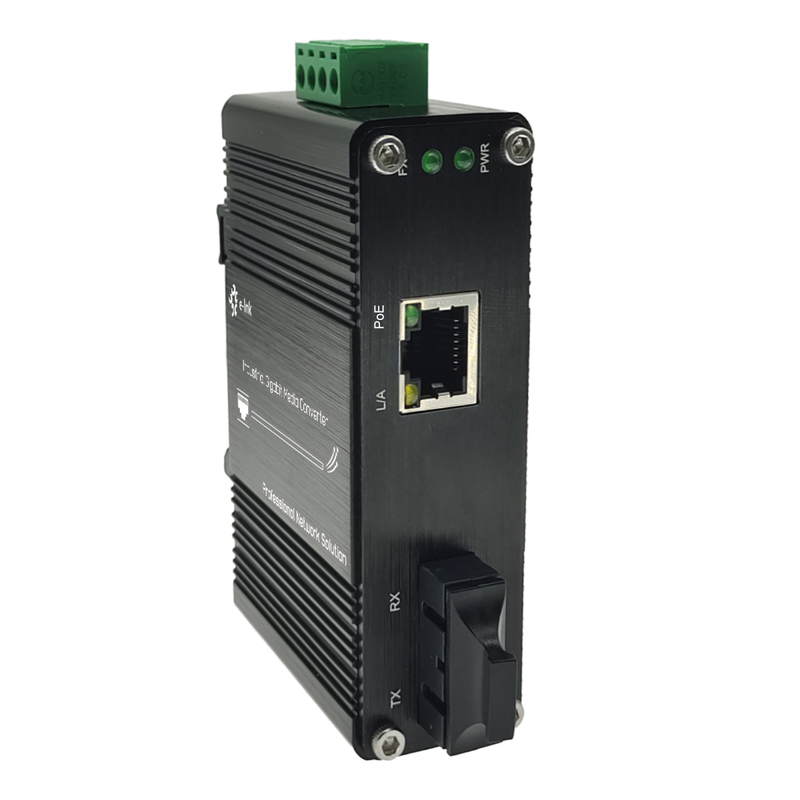

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter

Name: Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC3011P90 Series
Price: 218.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE,ISO9001

Model Number: LNK-IMC3011P90 Series

Document: EV0DDW~R.DOC

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Mounting Options:	DIN-Rail/Wall-mount	Dimensions (WxDxH):	95 X 70 X 30 Mm
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)
Input Power:	48~57VDC, 4-pin Terminal Block	Power Consumption:	95W Max
Optical Port:	1 X 1000Base-X SC

Mounting Options:	DIN-Rail/Wall-mount
Dimensions (WxDxH):	95 X 70 X 30 Mm
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)
Storage Temperature:	-40°C To 85°C (-40°F To 185°F)
Input Power:	48~57VDC, 4-pin Terminal Block
Power Consumption:	95W Max
Optical Port:	1 X 1000Base-X SC

Description

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter

Advantages

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 48~57VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

The LNK-IMC3011P90 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. The Ethernet port support 90W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC3011P90 Series is easy to mount on a DIN rail or in distribution boxes.


Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter 0

Application

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter 1

Ordering Information

Model	Description
LNK-IMC3011P90	Mini Industrial 90W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC3011P90-20	Mini Industrial 90W PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC3011P90S-20	Mini Industrial 90PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
