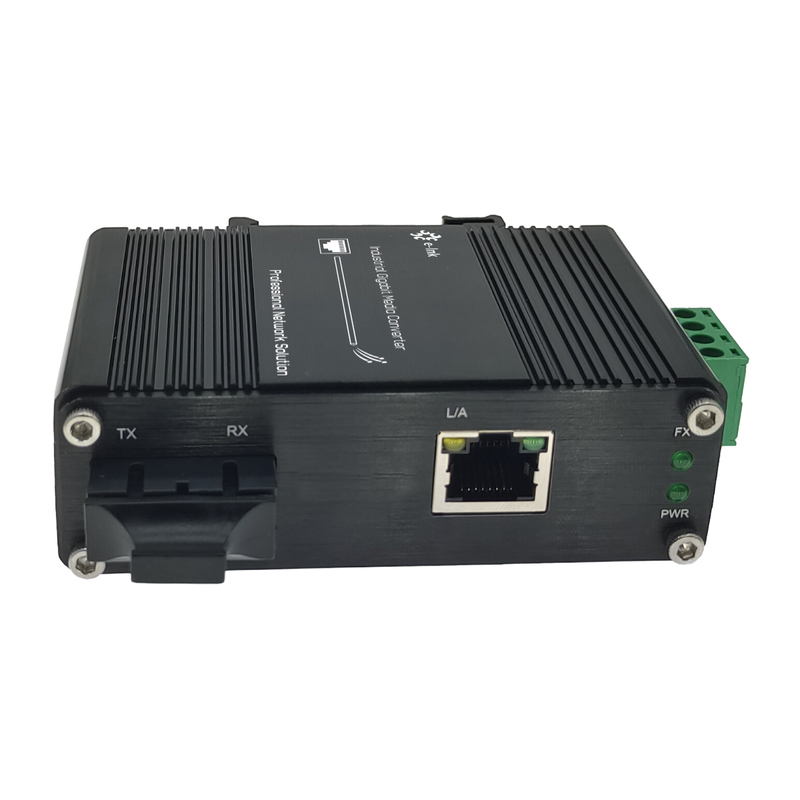

Mini Industrial 10/100Base-T to 100Base-FX Media Converter

Name: Mini Industrial 10/100Base-T to 100Base-FX Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC1100 Series
Price: 218.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE,ISO9001

Model Number: LNK-IMC1100 Series

Document: E095CR~E.DOC

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Mounting Options:	DIN-Rail/Wall-mount	Dimensions (WxDxH):	95 X 70 X 30 Mm
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)
Input Power:	12~48VDC, 2-pin Terminal Block K	Power Consumption:	3W Max
Optical Port:	1 X SC 100Base-FX

Mounting Options:	DIN-Rail/Wall-mount
Dimensions (WxDxH):	95 X 70 X 30 Mm
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)
Storage Temperature:	-40°C To 85°C (-40°F To 185°F)
Input Power:	12~48VDC, 2-pin Terminal Block K
Power Consumption:	3W Max
Optical Port:	1 X SC 100Base-FX

Description

Mini Industrial 10/100Base-T to 100Base-FX Media Converter

Advantages

► 1-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function

► 1-Port 100Base-FX SC

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Extensive LED indicators for network diagnostics

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

The LNK-IMC1100 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1100 Series are easy to mount on a DIN rail or in distribution boxes.


Mini Industrial 10/100Base-T to 100Base-FX Media Converter 0

Application

Mini Industrial 10/100Base-T to 100Base-FX Media Converter 1

Ordering Information

Model	Description
LNK-IMC1100	Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Multi-mode, 2km, 1310nm, SC
LNK-IMC1100-20	Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, 20km, 1310nm, SC
LNK-IMC1100S-20	Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, Single Fiber, 20km, 1310/1550nm, SC
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
