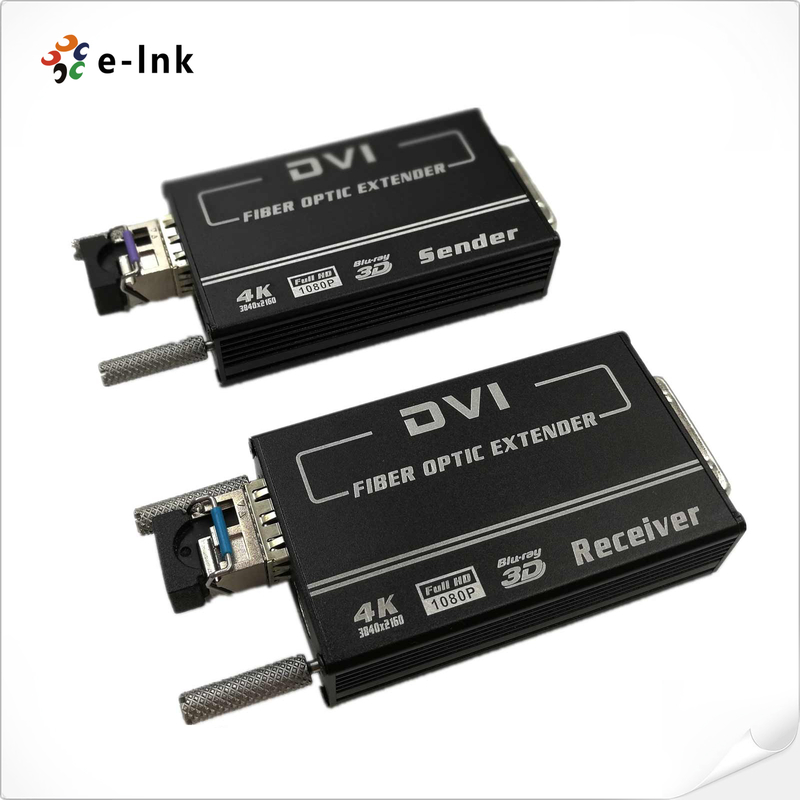

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID
Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID
Product Advantages
· Support DVI 1.0 and HDMI v1.4
· Support learn and store the display EDID info.
· Support resolutions up to 3840x2160/30P
· 7.1 channel LPCM, 192 kHz, 24-bit
· Support 3840*2160/60P(YUV 420)
· Plug and Play ,Built-in EQ(Receiver)
· Support 4K/30P@ Single-Link
· One fiber,One-way
· Bandwidth up to 10.2 Gbps
· Up to 80Km distance by Single-Mode Fiber
· Does not support the HDCP and CEC
· Low RFI / EMI
· Support 3D TV pass-through
· Surface-mountable
Technical Indexes
|
Parameter
|
Specifications
|
|
Compliance
|
DVI1.0,HDMI v1.4
|
|
Bandwith
|
10.2 Gbps
|
|
Supported Resolutions
|
3840x2160/30P,3840*2160/60P(YUV 420), 4096*2160/60P(YUV 420)
|
|
Digital Audio Support
|
7.1 channel LPCM, 192 kHz, 24-bit audio capability
|
|
Connections
|
|
DVI Input / DVI Output
|
1x DVI-D 18+1 Male connector
|
|
Optical
|
1x SFP+ port
|
|
Cable
|
|
Fiber Cable
|
9/125μ Single-Mode Fiber:≤80Km(default 1.4km)
|
|
DDC Support
|
|
EDID Support
|
An EDID memory built into the TX module can learn and store the display EDID info.
|
|
HDCP Pass-through Support
|
Does not support the HDCP and CEC
|
|
Mechanical
|
|
Construction
|
High-impact Alufer enclosure
|
|
Dimensions (L x W x H)
|
69mm x 42 mm x 18.2 mm
|
|
Net Weight
|
LNK-D4K-SM-S: 100 g LNK-D4K-SM-R: 100 g
|
|
Environmental
|
|
Operating Temperature
|
32° to +112° F. (0° to +50° C)
|
|
Storage Temperature
|
-40° to +185° F. (-40° to +85° C)
|
|
Operating Humidity
|
5% to 80% (non-condensing)
|
|
Storage Humidity
|
5% to 95% (non-condensing)
|
|
Power Requirements
|
|
External AC Power Adapter
|
Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A
|
|
Power Consumption
|
LNK-D4K-SM-S: 3 watts LNK-D4K-SM-R: 3.5 watts
|
|
Warranty
|
|
Limited Warranty
|
1 year
|
Overview
E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.
Application
· Digital Signage
· Traffic, industrial, military control
· LED signboards in streets and in stadiums
· LCD, Projector, Plasma display connection
· Medical Imaging Equipment
· Large video wall system
· Airplane On-board Video System
· TV Broadcast Station
· Conference Room Video Equipment
· Home Theater
Ordering Information
|
Model
|
Description
|
|
LNK-D4K-SM-S
|
Mini 4KX2K DVI Fiber Sender Manual EDID,DC5V1A
|
|
LNK-D4K-SM-R
|
Mini 4KX2K DVI Fiber Receiver Manual EDID,DC5V1A
|
