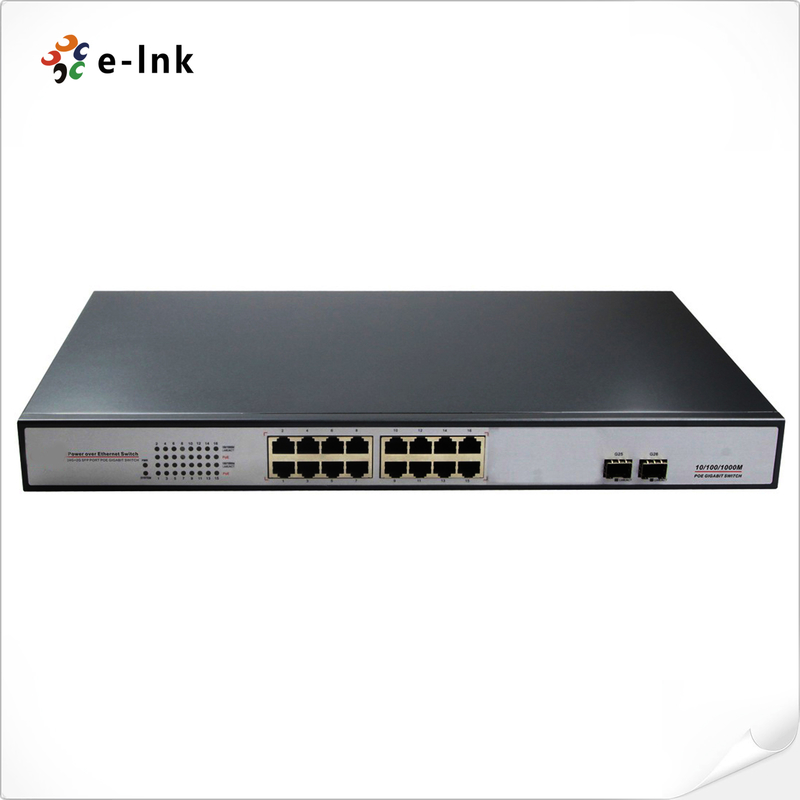

16G + 2SFP Unmanaged PoE Switch with PoE+

Product Name

16G + 2SFP PoE Switch with 16 Gigabit PoE Ports 25.5W

Model

LNK-2016GP-SFP

Connector Type

16x 10/100/1000M copper cable RJ45 ports(all ports support MDI/MDIX) + 2x 1000M SFP ports

Network Medium

10BASE-T: Cat3,4,5 UTP(≤100 meters);

100BASE-TX: Cat5 or later UTP(≤100 meters);

1000BASE-TX: Cat5 or later UTP(≤100 meters);

Performance Specifications

Backplane Bandwidth: 52Gbps

Network Delay: less than 20 microsecond

Packet Buffer: 96KB

Address Database: 8K

MTBF: 190,000 hours (about 21 years)

PoE Description

IEEE 802.3at, each port power is 25.5W;

Port1 to Port16 support PoE power;

PoE Power

IEEE802.3at standard, each port power is 25.5W, total power is 440W

Network Protocols

IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.3at

LED Indicator Status

Power, Network, PoE working status

Power Input

AC 100-240V, 50/60HZ input

Dimension

Dimension (LxWxH): 440 x 275 x 44.5mm

PoE Ports

16 ports support PoE

PoE Port Power

25.5W per PoE port,

PoE Standard

IEEE 802.3at

Working Environment

Operating Temperature: -20 ° ~ 55 ° C;

Storage Temperature: -40 ° ~ 75 ° C;

Humidity: 10% ~ 90%, non-condensing;

Storage Humidity: 10% ~ 95%, non-condensing;

Working Altitude: 3000 m (10,000 ft);

Storage Altitude: 3,000 m (10,000 ft)

Certification

CE mark, commercial

FCC Part 15 Class B

VCCI Class B

EN 55022 (CISPR 22), Class B

Transmission Distance

Depend on SFP Modules

Warranty

1 Year Warranty, Life-time Maintenance
