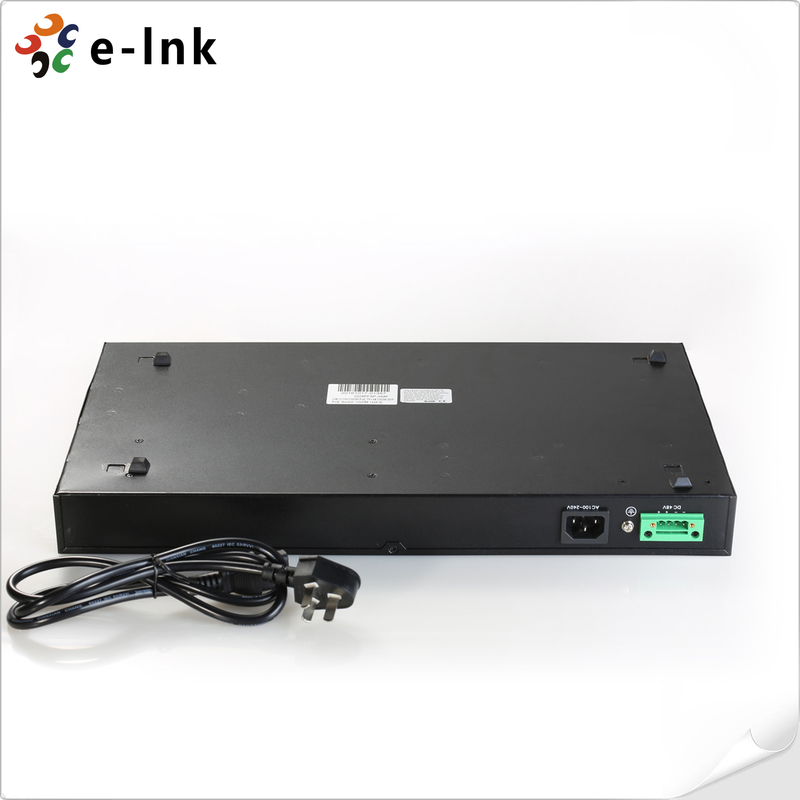

24-Port 10/100/1000Base-T + 4x1000Bae-SFP Managed PoE Switch

Name: 24-Port 10/100/1000Base-T + 4x1000Bae-SFP Managed PoE Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-M4024GP-SFP
Price: 80.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, Rohs

Model Number: LNK-M4024GP-SFP

Document: EIORDT~P.PDF

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Dimension (LxWxH):	44mm (H)×440mm(W)×260mm (D)	Operating Temperature::	-10~60℃
Power Consumption:	24W, PoE Power Supply Maximum 370W	Power:	DC48V

Dimension (LxWxH):	44mm (H)×440mm(W)×260mm (D)
Operating Temperature::	-10~60℃
Power Consumption:	24W, PoE Power Supply Maximum 370W
Power:	DC48V

Description

24-Port 10/100/1000Base-T + 4x1000Bae-SFP Managed PoE Switch

Product Advantages

· Support maximum 24 10/100/1000M RJ45 PoE ports and 4 1000M SFP uplink ports

· Each PoE port supports to auto discovery the standard power receiving device

· Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards

· Support 1000M port full rate, full-duplex non-blocking forwarding

· Support 9K giant frames

· Support 16K MAC learning, 12Mbits storage and forward cache space, 128G back plane bandwidth

· Support to choose one side with fixed metal casing, external power design, better for heat dissipating and installation

Technical Indexes

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree
PoE	PoE ports: 24 ports Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/power cutting
Wavelength	SFP Module: 850nm/1310nm/1490nm/1550nm
Distance	1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m
Port	24 1000M RJ45 ports (PoE optional): 10/100/1000Mbps 4 1000M SFP ports: 1000M SFP
MAC	16K
Buffer memory space	12Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC48V
Power consumption	24W, PoE power supply maximum 370W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	44mm (H)×440mm(W)×260mm (D)

Overview

E-link LNK-M4024GP-SFP is 28 ports 1000M PoE Ethernet switch, with 24 10/100/1000M RJ45 PoE ports and 4 1000M SFP uplink ports, include non-managed type and managed type, managed type supports web management and SNMP management(optional).

Ordering Information

Model	Description
LNK-M4024GP-SFP	24x10/100/1000M TP ports (24 POE-PSE -IEEE802.3af/at 15.4W/30W) + 4 1000M SFP Fiber cascaded/uplink, 1U rack type, inside power AC110V/220V, POE 390W,Total 430W, support WEB Management
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Rack-mount
