Mini Industrial Fiber Ethernet Media Converter 12~48VDC Terminal Block Power Input

Name: Mini Industrial Fiber Ethernet Media Converter 12~48VDC Terminal Block Power Input
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMCRS1100-SFP
Price: 52.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-Link

Certification: ROHS,FCC,CE

Model Number: LNK-IMCRS1100-SFP

Document: E9BYHY~L.PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: $45~60 / Piece

Packaging Details: Fiber Ethernet Media Converter standard export package

Delivery Time: 3 Working Days

Payment Terms: T/T,Western Union,

Supply Ability: 3000 Pcs/Month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      SFP Fiber Ethernet Media Converter, Industrial Fiber Ethernet Media Converter, 10/100Base-T Fiber Ethernet Media Converter


Serial Distance:	RS232: 15 Meters, RS485/422: 1000 Meters	Weight:	0.25Kg
Input Power:	12~48VDC, 4-pin Terminal Block	Operating Temperature:	-40°C To 75°C (-40°F To 167°F)
Casing:	Aluminum Case	Mounting Options:	DIN-Rail / Wall-mount

Serial Distance:	RS232: 15 Meters, RS485/422: 1000 Meters
Weight:	0.25Kg
Input Power:	12~48VDC, 4-pin Terminal Block
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount

Description

Mini Industrial Fiber Ethernet Media Converter 12~48VDC Terminal Block Power Input

Mini Industrial Fiber Ethernet Media Converter 12~48VDC Terminal Block Power Input Features

► 1 x 10/100BASE-T RJ45 port with auto MDI / MDI-X function

► 1 x SFP port,100Base-FX

► 1 x RS232/RS485/RS422 Serial port

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant

► Extensive LED indicators for network diagnostics

► Built-in surge and static protection

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C

►(-40°F to 167°F) operating temperature

Mini Industrial Fiber Ethernet Media Converter 12~48VDC Terminal Block Power Input Overview

LNK-IMCRS1100-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMCRS1100-SFP supports 10/100Base-T and 100Base-X SFP and RS232/RS485/RS422 serial data. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed. It converts a standard RS232/RS485/RS422 signal / RJ45 data to a fiber optic link as to extend the signal up to 2Km on multimode fiber and 80Km on single mode fiber.

Mini Industrial Fiber Ethernet Media Converter 12~48VDC Terminal Block Power InputTechnical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
Forward Filter Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Ethernet Port:	1 x RJ45
Optical Port:	1 x SFP 100Base-FX
Serial Port	1 x RS232/RS485/RS422 Industrial Terminal
RS232/RS485/RS422
Serial Interface	Industrial Terminal
Signal Ports	1Ch RS232 - 1Mbps 1Ch R485 - 1Mbps 2Ch RS485H- 2Mbps 2Ch RS485H can be grouped into 1Ch High Speed RS422
Baud Rate	RS485/RS422/RS232:4800-460800
Standard	EIA /TIA RS232/485/422
Serial Distance	RS232: 15 meters, RS485/422: 1000 meters
Rate	Max 2Mbps
RS-232	TXD, RXD, GND - Bi-directional
RS-485	D+, D-, GND - Bi-directional
Static protection	15KV electric static discharge (ESD) protection
Surge protection	1500W/sec surge protection
Electrical and Mechanical
Input Power:	12~48VDC, 4-pin terminal block
Power Consumption:	3W Max.
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount

Mini Industrial Fiber Ethernet Media Converter 12~48VDC Terminal Block Power Input Ordering Information

Model	Description
LNK-IMCRS1100-SFP	Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422
SFP Options	SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	SFP module is to be purchased separately.
Mounting Options	Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	Power Supply is to be purchased separately.

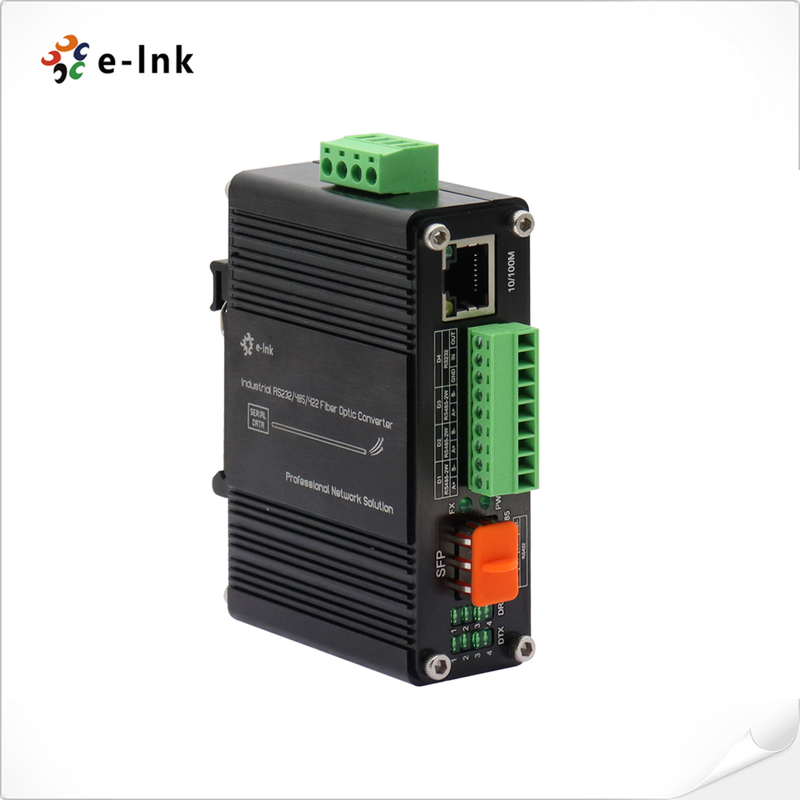

Mini Industrial Fiber Ethernet Media Converter 12~48VDC Terminal Block Power Input Pictures

Mini Industrial Fiber Ethernet Media Converter 12~48VDC Terminal Block Power Input
