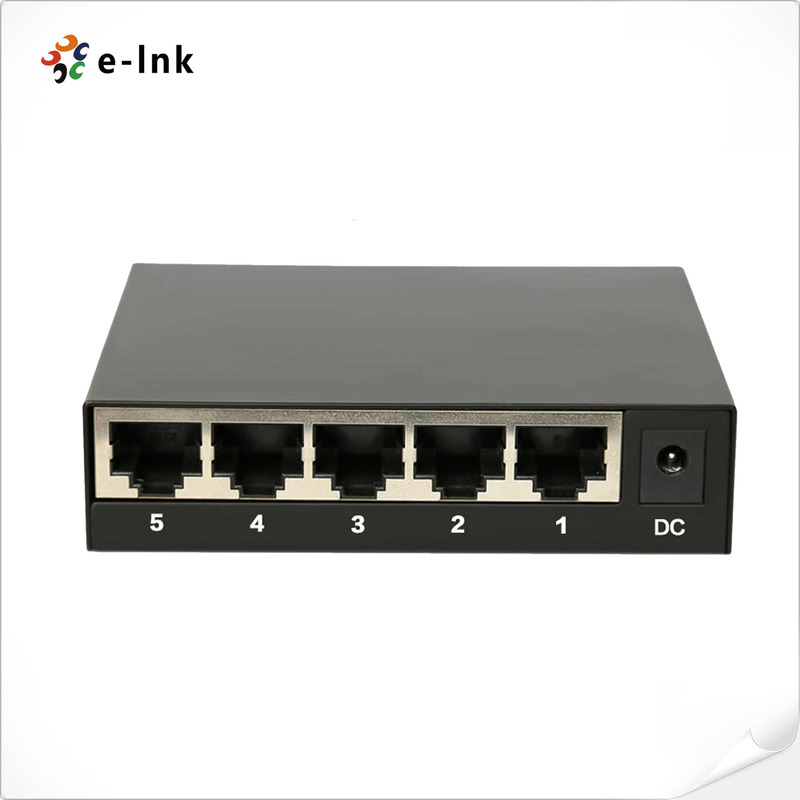

Unmanaged 5 port 10/100/1000Mbps Ethernet Switch

Name: Unmanaged 5 port 10/100/1000Mbps Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-305
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-305

Document: E-link LNK-305 Series Ether....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Dimension:	22mm (H)×68mm(W)×88mm (D)	Operating Temperature::	-10~60℃
Power:	DC5V/1A	Power Consumption:	1.5W
Transfer Method:	Store-and-Forward	Switching Capacity:	10G

Dimension:	22mm (H)×68mm(W)×88mm (D)
Operating Temperature::	-10~60℃
Power:	DC5V/1A
Power Consumption:	1.5W
Transfer Method:	Store-and-Forward
Switching Capacity:	10G

Description

Unmanaged 5 port 10/100/1000Mbps Ethernet Switch

Product Advantages

► Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

► Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

► Auto-MDI/MDIX eliminates the need for crossover cables

► Supports MAC address auto-learning and auto-aging

► Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware

► Fanless design ensures quiet operation

Technical Indexes

Parameter	Specification
Chipset	MTK7530U
Standards	IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Network Media (Cable)	10Base-T: UTP category 3, 4, 5 cable (maximum100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-Tx: UTP category 5, 5e cable (maximum 100m)
Switching Capacity	10G
MAC	4K Automatically learning, automatically Update
Number of Ports	5x 10/100/1000Mbps Auto-Negotiation ports
LED indicators	10/100/1000M Link/Act, Other Power
Bit error rate	<1/1000000000
Transfer Method	Store-and-Forward
MTBF	100000 hours
Power	DC5V/1A
Power consumption	1.5W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	22mm (H)×68mm(W)×88mm (D)

Overview

E-link LNK-305 series is 5 port 10/100/1000Mbps unmanaged switch, offer 5 port 10/100/1000Mbps auto negotiation port, high integration design, small and exquisite, portable, suit for medium and small office and home network. Using store-and-forward technology, combine with dynamic memory allocation, ensure allocate to each port effectively. Its wires peed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.

Ordering Information

Item	Description
LNK-305	Unmanaged Ethernet Switch: 5x10/100/1000M RJ45 Ports, DC5V 1A External Power Adapter
