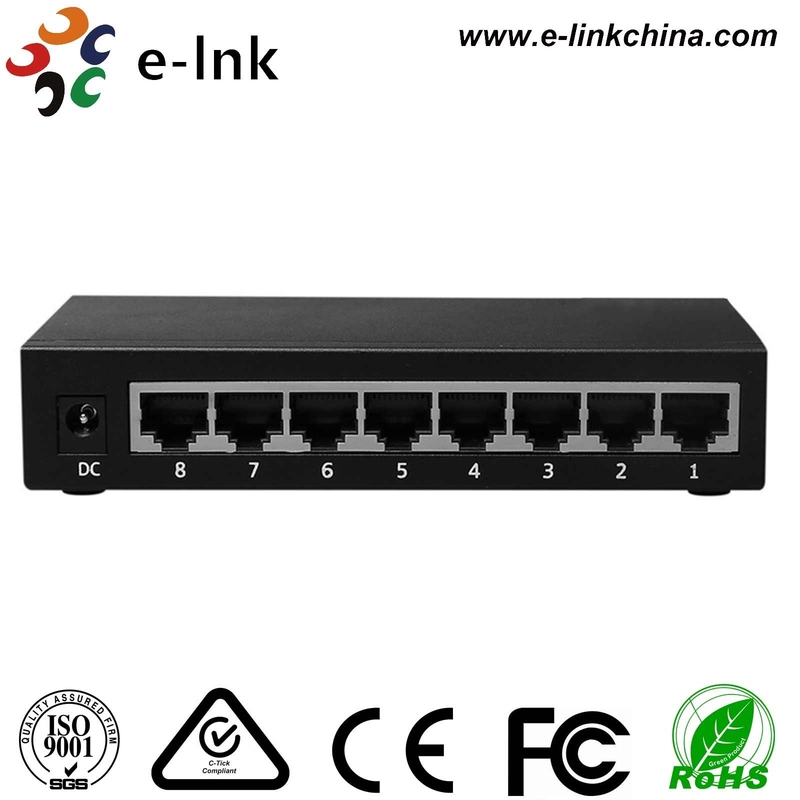

Unmanaged 8 port 10/100/1000Mbps Ethernet Switch

Name: Unmanaged 8 port 10/100/1000Mbps Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-308
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-308

Document: E-link Unmanaged 8-Port 100....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Dimension:	27mm (H)×77mm(W)×139mm (D)	Operating Temperature::	-10~60℃
Power:	DC5V/1A	Power Consumption:	1.5W
Transfer Method:	Store-and-Forward	Switching Capacity:	16G

Dimension:	27mm (H)×77mm(W)×139mm (D)
Operating Temperature::	-10~60℃
Power:	DC5V/1A
Power Consumption:	1.5W
Transfer Method:	Store-and-Forward
Switching Capacity:	16G

Description

Unmanaged 8 port 10/100/1000Mbps Ethernet Switch

Product Advantages

Complies with IEEE 802.3, IEEE 802.3u standards
8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
Supports MAC address auto-learning and auto-aging
LED indicators for monitoring power, link, activity
Metal case, desktop
External Power Adapter supply

Technical Indexes

Parameter	Specification
Chipset	RTL8370N
Standards	IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Network Media (Cable)	10Base-T: UTP category 3, 4, 5 cable (maximum100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-Tx: UTP category 5, 5e cable (maximum 100m)
Switching Capacity	16G
MAC	8K Automatically learning, automatically Update
Number of Ports	8x 10/100/1000Mbps Auto-Negotiation ports
LED indicators	10/100/1000M Link/Act, Other Power
Bit error rate	<1/1000000000
Transfer Method	Store-and-Forward
MTBF	100000 hours
Power	DC5V/1A
Power consumption	1.5W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	27mm (H)×77mm(W)×139mm (D)

Overview

E-link LNK-308 series is 8 port 10/100/1000Mbps unmanaged switch, offer 8 port 10/100/1000Mbps auto negotiation port, high integration design, small and exquisite, portable, suit for medium and small office and home network. Using store-and-forward technology, combined with dynamic memory allocation, ensure allocate to each port effectively. Its wire speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.

Ordering Information

Model	Description
LNK-308	8x 10/100/1000M Unmanaged Ethernet Switch, DC5V/1A
