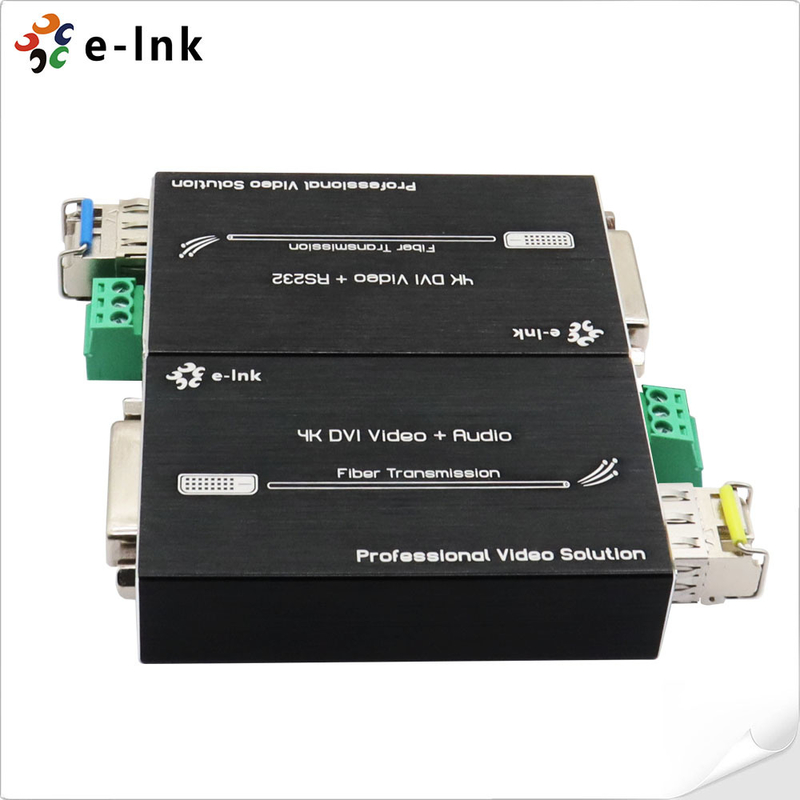

Mini 4K DVI Fiber Optic Extender with RS232

Name: Mini 4K DVI Fiber Optic Extender with RS232
Brand: E-link China Technology Co.,LTD
SKU: LNK-MDA4K-S20
Price: 229.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-MDA4K-S20

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 3-12working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Bandwidth:	10.2Gbps	Operating Temperature:	-10 ~ + 50°C
Storage Temperature:	-20 ~ + 80°C	Weight:	60g / 0.13 Lb
Safety Approvals:	CE, FCC, Rohs

Bandwidth:	10.2Gbps
Operating Temperature:	-10 ~ + 50°C
Storage Temperature:	-20 ~ + 80°C
Weight:	60g / 0.13 Lb
Safety Approvals:	CE, FCC, Rohs

Description

Mini 4K DVI Fiber Optic Extender with RS232

Advantage

► DVI 1.0 and HDCP1.2 Support

► DDC HPDT Signal Support

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Hot-Pluggable, EMI/RFI Resistant

► Operating Temperature: -10~50°C

Overview

The LNK-MDA4K Series 4K DVI Fiber Extender are designed to support transmission of

uncompressed DVI signal and audio signal over optical fiber up to distances of 80km, at a

resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission

over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers

are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal

for large-screen display, conferencing systems and home entertainment and so on. The device

has the ability of anti-interference, to ensure the stability of the signal.


Mini 4K DVI Fiber Optic Extender with RS232 0

Technical Indexes

RS232	3 Pin terminal, Baud rate ≤ 38400
Fiber Connector	SFP/LC
Bandwidth	10.2Gbps
Transmission Distance	300m (Over OM3 Fiber)
	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 ~ + 50°C
Storage Temperature	-20 ~ + 80°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours
Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb
Power Supply	5V DC (USB-C)
Power dissipation	<5W
Safety Approvals	CE, FCC, Rohs

Application

Mini 4K DVI Fiber Optic Extender with RS232 1

Ordering Information

Model	Description
Model	Description
LNK-MDA4K-MM	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S20	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S40	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S80	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
