10/100/1000M 8-TX + 2-FX Port Fiber Switch

Name: 10/100/1000M 8-TX + 2-FX Port Fiber Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-2800G 8
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-2800G 8

Document: E-link 2FX + 8TX Ethenet Sw....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Wavelength:	850nm/1310nm/1550nm	Operating Temperature::	-10~55ºC
Power Supply:	DC5V 2A (external)	Flow Control:	Full Duplex: Flow Control; Half Duplex: Back Pressure

Wavelength:	850nm/1310nm/1550nm
Operating Temperature::	-10~55ºC
Power Supply:	DC5V 2A (external)
Flow Control:	Full Duplex: Flow Control; Half Duplex: Back Pressure

Description

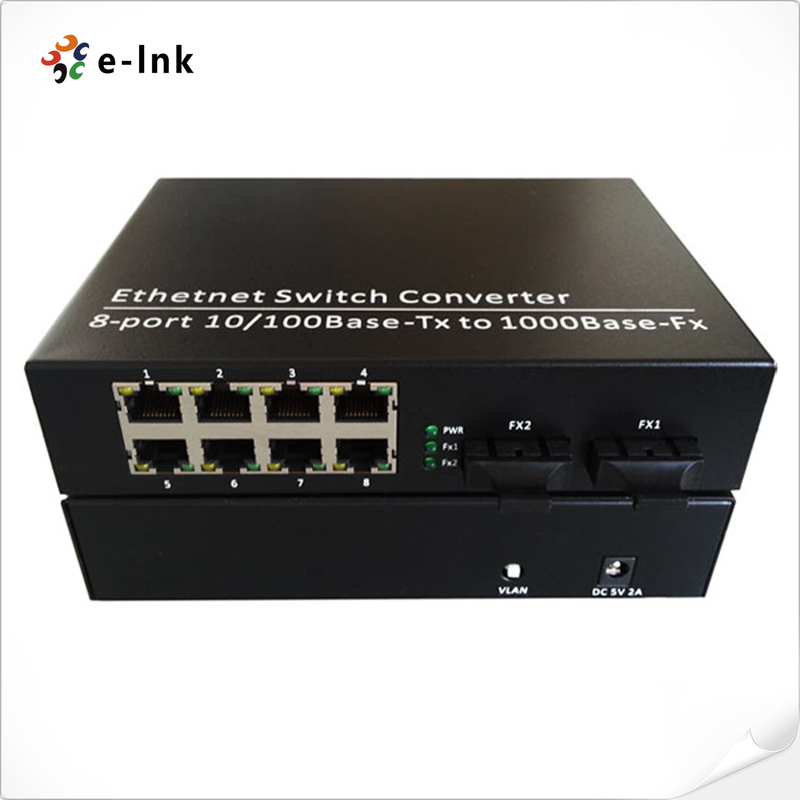

10/100/1000M 8-TX + 2-FX Port Fiber Switch

Product Advantages

· Switch Ethernet signals among 10/100/1000M UTP ports (T) and 1000M Optical Fiber Interfaces (X)

· Auto negotiation function, supports UTP ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation

· 1000M Fiber port supports 1000M and Full Duplex mode.

· Supports flow control and broadcast storm protection.

· Supports VLAN and QoS.

· Supports max 10K bytes frame.

· Low power consume (4W), low heat, and good reliability.

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps
Standard	IEEE802.3z/AB,10/100/1000Base-T and 1000Base-SX/LX
Wavelength	850nm/1310nm/1550nm
Transmission distance	Fiber Optic: Multimode Fiber:50/125,62.5/125μm Singlemode Fiber:8/125,8.7/125,9/125μm(the max distance up to 10~100 km) Category-5 twisted pairs: 100m
Port	8RJ45 ports: Connecting with STP/UTP category-5 twisted pairs 2SC or SFP Port
Conversion means	Media conversion, store-and-forward
Flow control	Full duplex: flow control; half duplex: back pressure
Error rate	<10^-9
MTBF	100,000 hours
MAC address table	1K
Power supply	DC5V 2A (external)
Power consumption	4W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Overview

LNK-2800G 8 port Gigabit Ethernet Switch with eight 10/100/1000M UTP ports and two 1000M Fiber Ports, which converting the 2 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission range from 100m over copper wires to 120Km (single-mode full-duplex mode).
