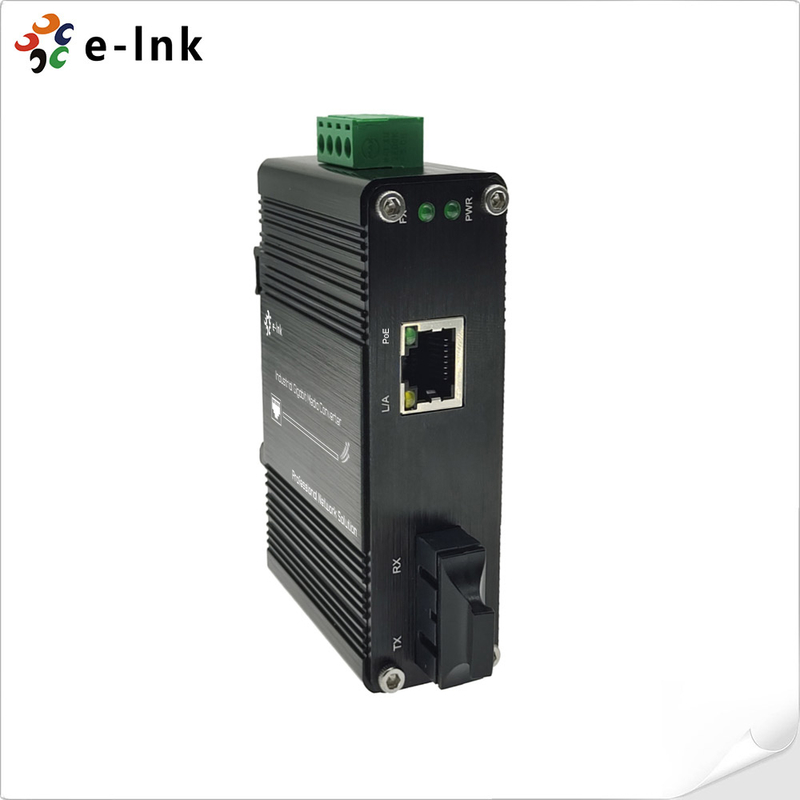

Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter

Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter

Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter Advantages

► 1-Port 10/100BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 100Base-FX SC

► IEEE802.3af/at compliant

► Up to 60W of power over 4-pairs

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter Overview

The LNK-IMC1100P60 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber. The Ethernet port support 60W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1100P60 Series are easy to mount on a DIN rail or in distribution boxes.

Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter Technical Indexes
