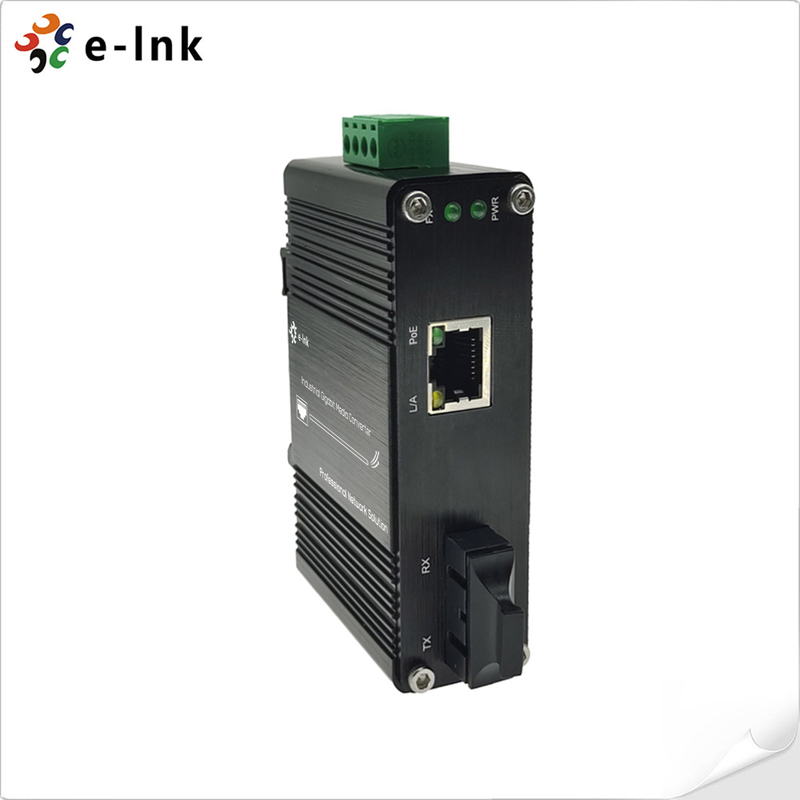

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter Advantages

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 48~57VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter Overview

The LNK-IMC3011P90 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. The Ethernet port support 90W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC3011P90 Series is easy to mount on a DIN rail or in distribution boxes.

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media ConverterTechnical Indexes
