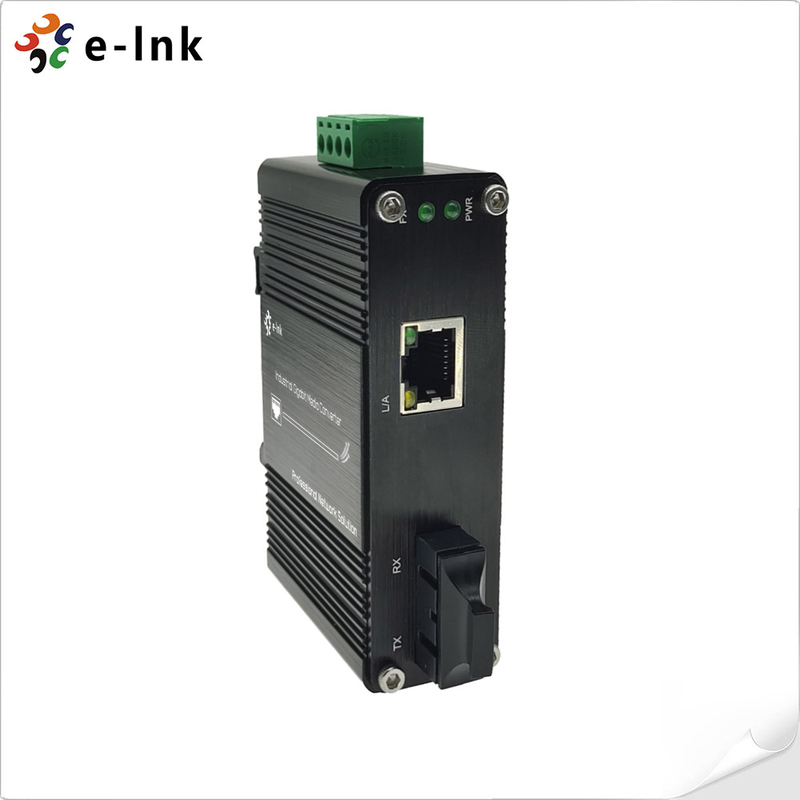

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-IMC3012

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Converter Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:
Keywords:
Industrial Media Converter
Operating Temperature:
-40°C To 75°C (-40°F To 167°F)
MTBF:
> 200,000 Hrs
Weight:
0.25KG
Dimensions (WxDxH):
95 X 70 X 30 Mm
Power Consumption:
3W Max
Keywords:
Industrial Media Converter
Operating Temperature:
-40°C To 75°C (-40°F To 167°F)
MTBF:
> 200,000 Hrs
Weight:
0.25KG
Dimensions (WxDxH):
95 X 70 X 30 Mm
Power Consumption:
3W Max
Description
Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter Advantages

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SC Port, 1000Base-X

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Extensive LED indicators for network diagnostics

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter Overview

The LNK-IMC3012 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC3012 Series are easy to mount on a DIN rail or in distribution boxes. This media converter supports both 100M and 1000M on fiber port, that makes it compatible with more devices.

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T



IEEE802.3u 100Base-TX



IEEE802.3ab 1000Base-T



IEEE802.3z 1000Base-X



IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)



148,800pps (100Mbps)



1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

1x RJ45

Optical Port:

1 x SC 1000Base-X

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter ordering information

Model

Description

LNK-IMC3012

Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-SX, Multi-mode, 550m, 850nm, SC

LNK-IMC3012-20

Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-LX, Single-mode, 20km, 1310nm, SC

LNK-IMC3012-S20

Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-BX, Single-mode, Single Fiber, 20km, 1310/1550nm, SC

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

24W/1A 24VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
