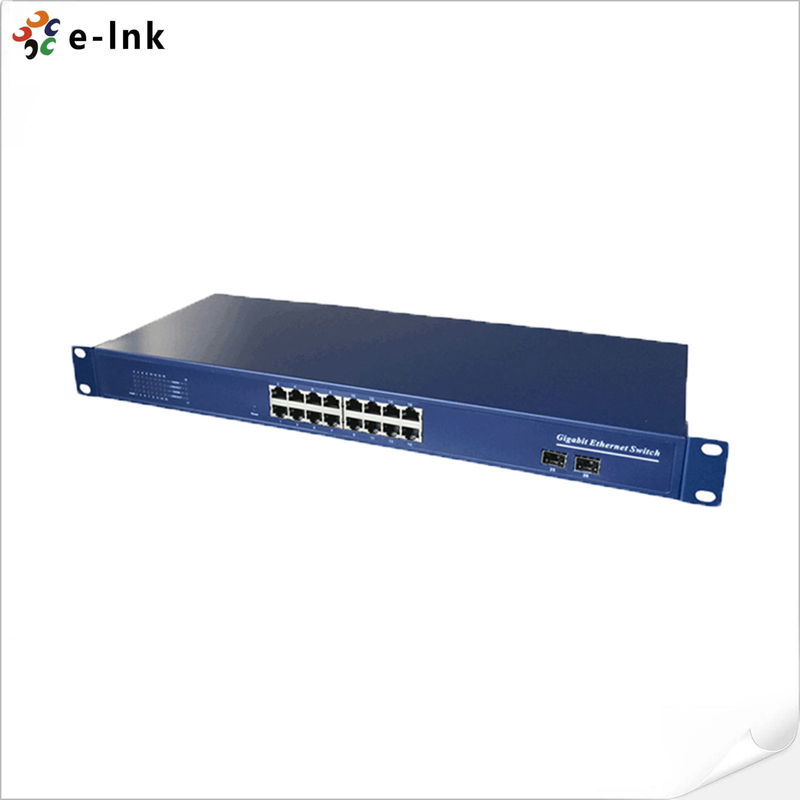

16-port 10/100/1000M Gigabit Switch with 2 SFP slots

Name: 16-port 10/100/1000M Gigabit Switch with 2 SFP slots
Brand: E-link China Technology Co.,LTD
SKU: LNK-216G-SFP
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CCC, CE, FCC, RoHS

Model Number: LNK-216G-SFP

Document: E-link 16G + 2SFP Ethernet ....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Dimension:	440×170×45mm	Operating Temperature::	-10~55ºC
Warranty:	2-year	Weight:	2.0kg

Dimension:	440×170×45mm
Operating Temperature::	-10~55ºC
Warranty:	2-year
Weight:	2.0kg

Description

16-port 10/100/1000M Gigabit Switch with 2 SFP slots

Product Advantages

· 16* 10/100/1000M Ethernet ports ,2*1000M SFP ports

· Support 10/100/1000M rate with auto-negotiation function,support MDI/MDIX and half/full-duplex with auto-negotiation function

· Each port has the complete LED Indicator light

· All ports support wire-speed forwarding

· Support IEEE802.1d Spanning Tree

· Support high performance QoS function on each port,support multicast

· Support IEEE 802.3x flow control and back pressure control

· Support 10K bytes Jumbo packet

Technical Indexes

Standards

IEEE802.3 10Base-T IEEE802.3u100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-SX/LX

IEEE802.3x Flow control IEEE802.1p QoS

IEEE802.1d Spanning Tree

IEEE802.1q VLAN

Certifications

CCC, CE, FCC, RoHS

Ethernet Port

Connector: RJ45

Data Rate: 10/100/1000M adaptive

Distance: 100m

UTP Type: UTP-5E or higher level

Fiber Port

Connector: SFP slot

Data Rate: 1.25Gbps

Optical Wavelength: 850nm/1310nm/1490nm/1550nm

Fiber Type: single mode 9/125μm, multi-mode 50/125μm, 62.5/125μm

Distance: 550m～100km

Performance

Processing Type: Store and Forward

Transmission mode: half/full-duplex with auto-negotiation function

MAC Table Size: 8K

Buffer Space: 4.1Mbit

Maximum Packet Length:10K bytes

Back bandwidth: 36G

Time Delay: ＜20μs

Power

Power type: external power supply

Input Voltage: AC100V～240V 50/60Hz

Connector: AC Socket

Power Consumption: 3W～10W

Environment

Storage Temperature:-40～70℃

Operating Temperature: -10～55℃

Relative Humidity: 5-90% ( no condensation)

Warranty

2-year

Physical Characteristics

Dimension: 440×170×45mm

Weight: 2.0kg

Color: Metal, Blue

Application

Overview

LNK-216G-SFP Series Ethernet Fiber Switch has 16 10/100/1000Mbps Ethernet ports and 2 SFP ports. All ports support wire-speed forwarding and Auto MDI/MDIX function. Users can choose different SFP modules in need. No configuration is required; it will instantly operate as soon as you power it up. This series is designed for 19 inches of rack chassis.

Ordering Information

Model	Description
LNK-216G-SFP	16-port 10/100/1000M Gigabit Switch with 2 SFP slots, not including SFP modules, standalone
