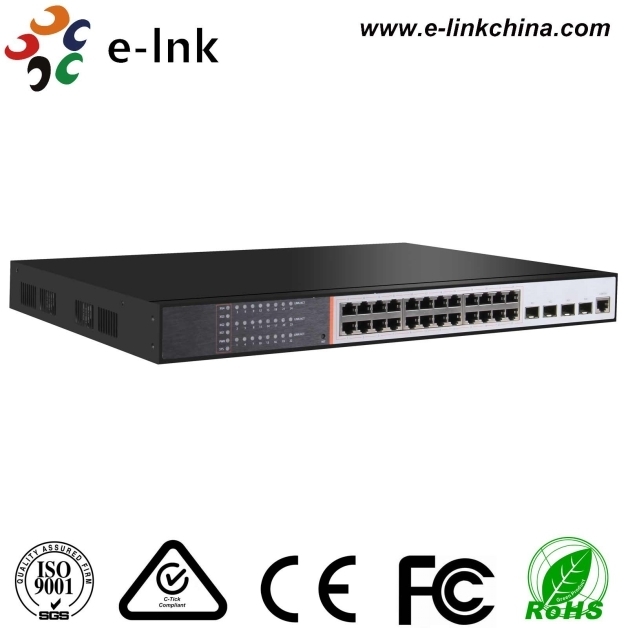

24 port Gigabit L2 managed switch

Name: 24 port Gigabit L2 managed switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-M2024G
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-M2024G

Document: E-link LNK-M2024G Series Et...d).pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              24 port L2 managed switch, Gigabit L2 managed switch, 24 Port Gigabit L2 managed switch


Weight:	5.5kg	Size（LxWxH）:	440mm X 350mm X 44 Mm
Operating Temperature::	0℃~40℃ (32℉~104℉)	Warranty:	1 Year

Weight:	5.5kg
Size（LxWxH）:	440mm X 350mm X 44 Mm
Operating Temperature::	0℃~40℃ (32℉~104℉)
Warranty:	1 Year

Description

24 port Gigabit L2 managed switch

24 port Gigabit L2 managed switch

Product Advantages

► IEEE 802.3,IEEE 802.3u,IEEE802.3ab,IEEE802.3x,IEEE802.3af standard

► Support upward port auto MDI/MDIX.

► Adopted storage forward switch system.

► Adopt three fans cooling design to guarantee the equipment stability；

► 24 port 10/100/1000Mbps port

► 4Mb Packet buffer memory

► Support IEEE 802.1x flow control；

► Support saving power function when port no connection

Technical Indexes

Network Interface	24port 10/100/1000M RJ45 port (Adaptive MDI/MDIX ) 4 Gigabit SFP port
Forwarding rate	Gigabit line speed forward
Network protocols and standards compliant	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-TX IEEE 802.3x Flow Control
Network protocol and standard	· network delay(100 to 100M bps):maximum 20 μs(using 64 byte packet) · network delay(100 Mbps ~ 100 Mbps ):maximum 10μs(using 64 byte packet)
LEDs Indicator	Power LINK/ACT
Power supply	Main board power supply:12VDC/1A
Dimensions	Size(LxWxH):440mm x 350mm x 44 mm Weight:5.5kg
Environment	Operating Temperature:0°~40°C Operating Humidity:10%~ 90%,(Non-condensing)
EMC	CE Class B FCC Part 15,Class B VCCI Class B C-Tick
Certificate	CE. FCC ROHS
Warranty	1 year

Application

24 port Gigabit L2 managed switch 0

Overview

LNK-M2024G is 24 port Gigabit managed switch, LNK-M2024G can resolve the problem of maintenance tedious, wireless coverage, terminal device powered, surveillance project. Maximum save the cost.

Ordering Information

Item

Description

LNK-M2024G

Fiber to Copper Ethernet Switch: 10/100/1000Mbps port (24ports) +

1000Mbps SFP (the 25,26,27,28th), not including SFP Modules; 100-240V AC VAC
