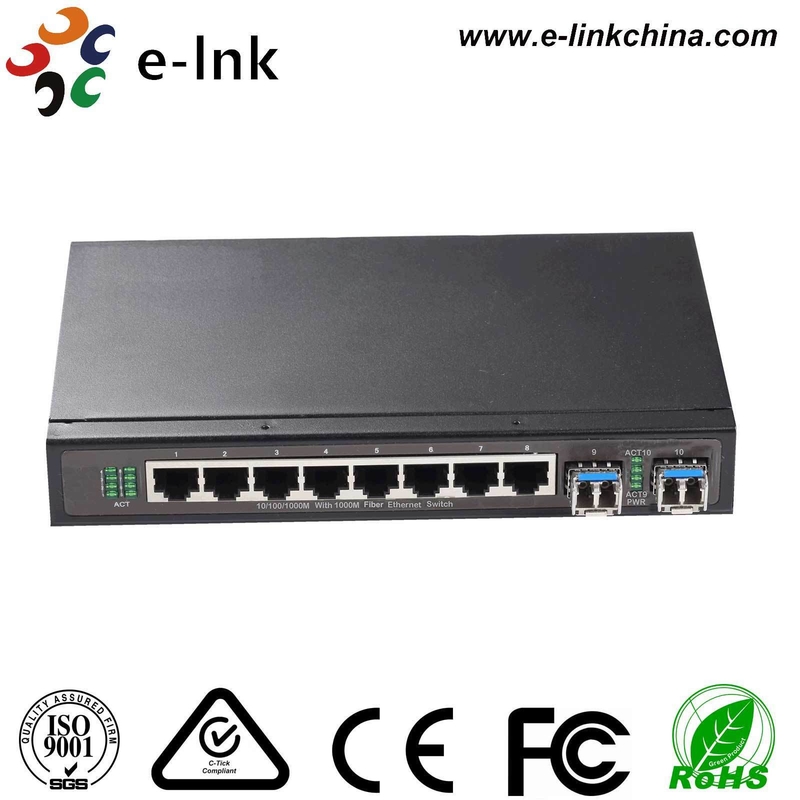

Managed 8 ports 10/100/1000M Gigabit Switch with 2 SFP slots

Name: Managed 8 ports 10/100/1000M Gigabit Switch with 2 SFP slots
Brand: E-link China Technology Co.,LTD
SKU: LNK-4300G
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-4300G

Document: E-link Managed 8G + 2SFP Et....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Wavelength:	850nm/1310nm/1550nm	Operating Temperature::	-10~55ºC
Power Consumption:	5W	Power Supply:	Internal: AC90~264V/DC100~380V Input

Wavelength:	850nm/1310nm/1550nm
Operating Temperature::	-10~55ºC
Power Consumption:	5W
Power Supply:	Internal: AC90~264V/DC100~380V Input

Description

Managed 8 ports 10/100/1000M Gigabit Switch with 2 SFP slots

Product Advantages

· Support 8 1000M (10/100/1000M adaptive) RJ45 ports and 2 1000M SFP port uplink

· It can build 1000M fiber internet

· Support SFP hot plug, Support Jumbo frames

· Support 100/1000M port full rate, full-duplex non-blocking forwarding

· Support 16K MAC learning, 2Mbit storage and forward cache space, 18G back plane bandwidth

· Support to provide wall-mounted hanger better for installation(optional), metal casing better for heat dissipating

Overview

LNK-M2800G-SFP Series supports SFP hot plug; Fiber port supports dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mod; Support to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements. The two additional dedicated Gigabit SFP Fiber ports are for uplinks with greater distance.

Technical Indexes

Network Standards	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN IEEE802.1p QoS, IEEE802.1d Spanning Tree
Wavelength	SFP Module: 850nm/1310nm/1490nm/1550nm
Distance	1000M SFP multi-mode:220m (fiber 62.5/125μm)/550m(fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m
Port	8 1000M RJ45 ports : 10/100/1000Mbps 2 1000M SFP: 1 Gbps, 1000M SFP
MAC	16K
Buffer memory space	2Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC12V/1A
Power consumption	10W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	70mm (H)×290mm(W)×185mm (D)

Application

Managed 8 ports 10/100/1000M Gigabit Switch with 2 SFP slots 0
