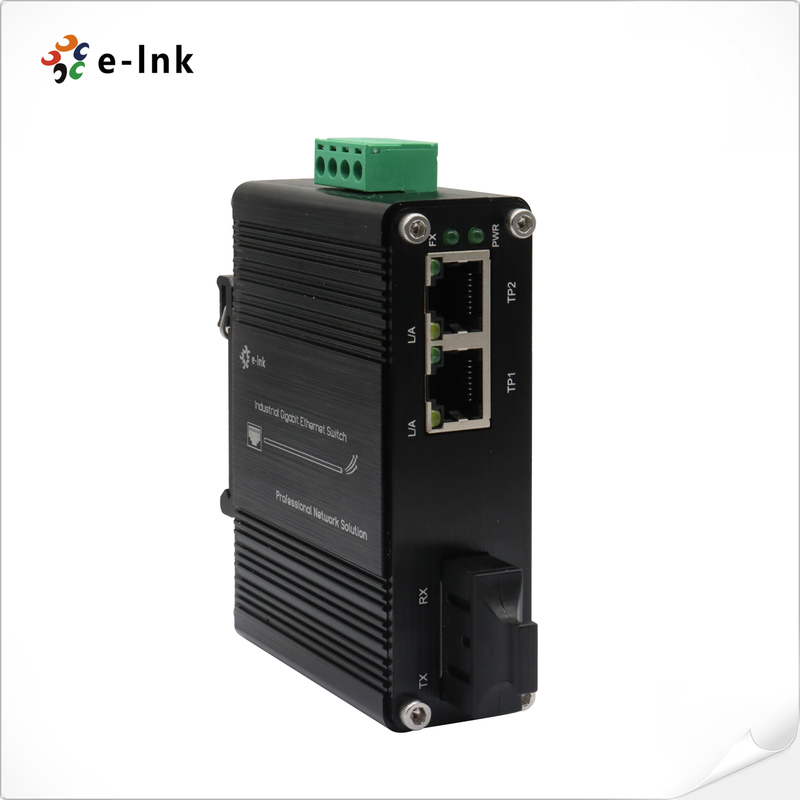

Mini Industrial 2-Port 10/100Base-TX to 100Base-FX Media Converter

Name: Mini Industrial 2-Port 10/100Base-TX to 100Base-FX Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC1200
Price: 64.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-IMC1200

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Converter Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      100Base-FX Media Converter, Industrial Media Converter 100Base-FX


Keywords:	Industrial Media Converter	Operating Temperature:	-40°C To 75°C (-40°F To 167°F)
MTBF:	> 200,000 Hrs	Weight:	0.25KG
Dimensions (WxDxH):	95 X 70 X 30 Mm	Power Consumption:	5W Max

Keywords:	Industrial Media Converter
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)
MTBF:	> 200,000 Hrs
Weight:	0.25KG
Dimensions (WxDxH):	95 X 70 X 30 Mm
Power Consumption:	5W Max

Description

Mini Industrial 2-Port 10/100Base-TX to 100Base-FX Media Converter

Mini Industrial 2-Port 10/100Base-TX to 100Base-FX Media Converter Advantages

► 2-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function

► 1-Port 100Base-FX SC

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Mini Industrial 2-Port 10/100Base-TX to 100Base-FX Media Converter Overview

The LNK-IMC1200 Series provides media conversion between 2-Port 10/100BASE-T and 1-Port 100BASE-FX Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions, easy to mount on a DIN rail or in distribution boxes.

Mini Industrial 2-Port 10/100Base-TX to 100Base-FX Media Converter Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Full duplex and flow control
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
Packet Buffer Memory:	128K bits
Max Packet Length:	1522 Bytes
Address Table Size	1K MAC Addresses
Interface
Connector:	2 x RJ45
Optical Port:	1 x SC 100Base-FX

Mini Industrial 2-Port 10/100Base-TX to 100Base-FX Media Converter ordering information

Model	Description
LNK-IMC1200	Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1200-20	Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200-S20	Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
