1200M HomePlug AV Powerline Adapter with PoE

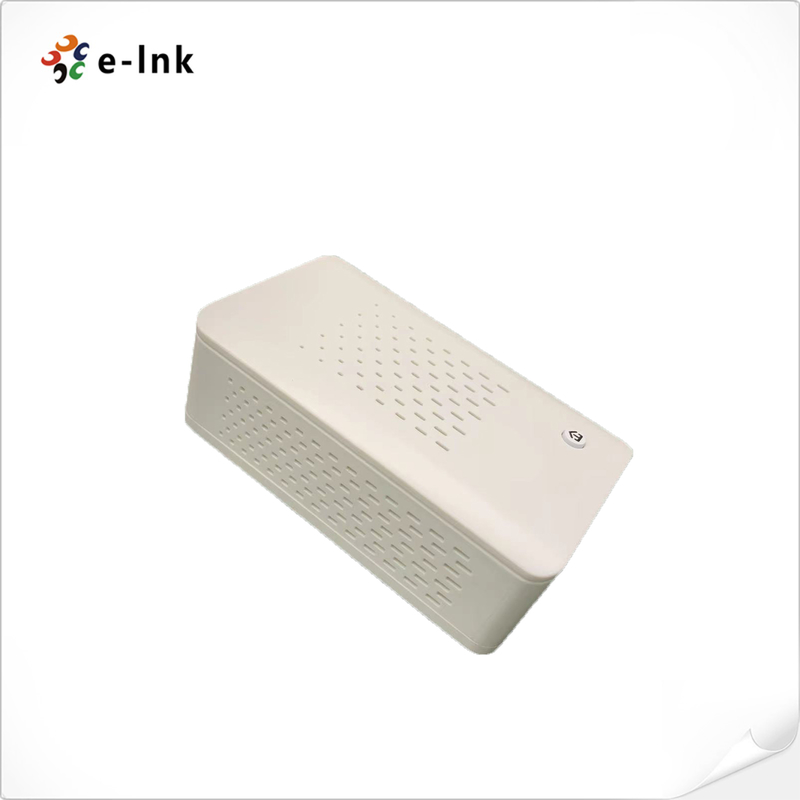

Name: 1200M HomePlug AV Powerline Adapter with PoE
Brand: E-link China Technology Co.,LTD
SKU: LNK-1200MH-POE(S)
Price: 57.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS

Model Number: LNK-1200MH-POE(S)

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Storage Temperature:	-20°C To 70°C	Mark:	CE
Housing:	Aluminum	Input Voltage:	100-240V AC
Mounting Type:	DIN-Rail Mount

Storage Temperature:	-20°C To 70°C
Mark:	CE
Housing:	Aluminum
Input Voltage:	100-240V AC
Mounting Type:	DIN-Rail Mount

Description

1200M HomePlug AV Powerline Adapter with PoE

Advantage

· High-Speed powerline adapter with Ethernet interface for fast data transfer over the existing household power supply

· The high-speed transfer rates of 1200Mbps even make it possible to transmit video in DVD quality

· No need new wires and use at any power socket with up to 500 meters

· Simple plug and easy to install fully compliant with IEEE802.3/802.3u,IEEE802.3at/af HomePlugAV/HomePlugAV2 standard

· Provide DC55V power for the PoE PD over CAT5e / CAT6

Overview

The LNK-1200MH-POE(S) Smart Link HomePlug AV2 1200Mbps Ethernet Adapter embarks on

a concept of No New Wires data communications, and it transforms your in-house powerline into

a networking infrastructure. It provides SmartLink Plus coupling to the Line-Neutral pair and the

Line-Ground pair of the AC mains. It successfully reduce "dead spot", increase throughput and

increase network coverage within a home. Surf the Internet and share data at the speed up to

1Gbps PHY rates through powerline, And Built-in PoE Injector to provide 55V/48V classification

power via CAT5E / CAT6.

Technical Indexes

Parameter	Specification
Transfer rate (PHY):	1200Mbps
Range:	up to 500m
Frequency Band	2~68 MHz
Access-Method:	OFDM
Powerline Connector:	EU, UK, AU and US
Network Connector:	1x RJ45 10/100Base-TX
Encoding:	128Bit AES-Encryption with key management
LED-Displays:	PLC (PLC signal light)
	ACT
	PWR (power light)
	ETH (Ethernet light)
	PoE (POE light)
Power supply:	100~240 VAC, 50/60 Hz
Power over Ethernet:	PoE function gets solved on the veins 4,5 (+) and 7,8(-), no data pairs, max. Output power 55VDC 30W/48VDC, 15.4W
Power consumption:	3.9 watts without PoE terminal, 35 watts maximum
Supported Standards:	IEEE 802.3 IEEE 802.3x IEEE 802.3u IEEE 802.3af IEEE 802.3at Auto MDI / X HomePlug AV2
Operating Systems:	Windows® XP32bit, Windows® Vista 32/64bit, Windows® 7 32/64bit, Linux®, Mac OS® X and all TCP/IP Operating Systems

Application

1200M HomePlug AV Powerline Adapter with PoE 0
