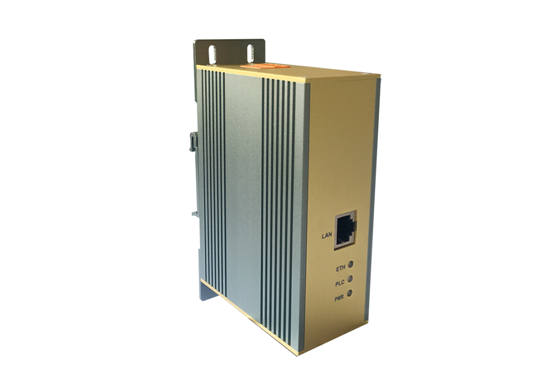

DIN-Rail Industrial 1200M Powerline Adapter

DIN-Rail Industrial 1200M Powerline Adapter

Advantage

• PLC2ETH systems are used for Conductor rails in interiors, e.g.in

• High storage warehouses
• Crane systems
• hoists
• Transport systems
• Hand-operated overhead conveyor systems
• Handling systems

•


  Slip ring bodies in

• Rotary cranes, excavators
• Water treatment works
• Amusement rides
• Manipulators
• Packing machines

•


  Cables for

• Cable reels
• Control cables
• Crane systems

Overview

Voltage or currents of the data signals on Bus systems are often too low to achieve a reliable and trouble-free data transmission. Sliding contact surfaces tend to form coddle layers and may cause short-time interruptions in contaminated environments. To achieve low and constant contact resistance between contact surfaces and current collector, PLC2ETH increases the power level of the data signals, In connection with double current collectors this allows a safe and reliable data transmission. The increase of the signal level also produces a strong insensibility to inductive and capacitive interference form neighboring conductors to the bus system (e.g. on cable reels, festoons or longer supplies).The transparent data transmission prevents relevant retardation times or long-time transmission records. Reference system with system connection to various automation computers with standard interfaces TCP/IP 10/100/1000 ETH is in operation.

Application
