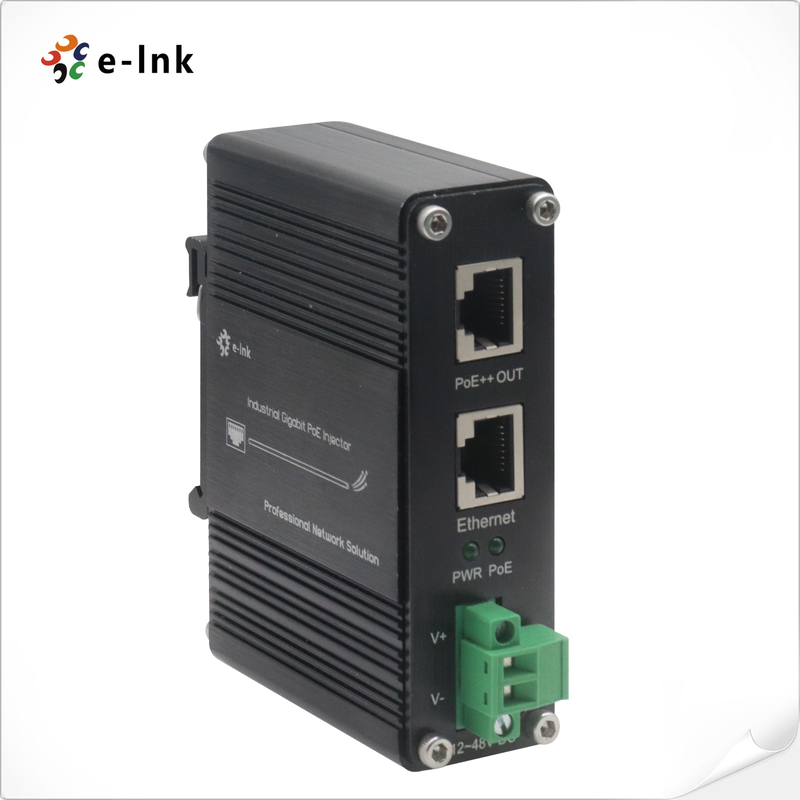

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)

Name: Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)
Brand: E-link China Technology Co.,LTD
SKU: LNK-INJ301-100
Price: 29.9 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-INJ301-100

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: $29.9

Packaging Details: Injector Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Industrial Gigabit PoE++ Injector, 802.3bt PoE++ Injector, 100W PoE++ Injector


Keywords:	Industrial Injector	Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
MTBF:	> 200,000 Hrs	Weight:	0.25KG
Dimensions (WxDxH):	95 X 70 X 30 Mm	Power Consumption:	100W Max

Keywords:	Industrial Injector
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
MTBF:	> 200,000 Hrs
Weight:	0.25KG
Dimensions (WxDxH):	95 X 70 X 30 Mm
Power Consumption:	100W Max

Description

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC) Advantages

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

► Support 100W PoE++ Power Sourcing Equipment

► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

► Support 10/100/1000Base-TX

► Extensive LED indicators for PoE diagnostics

► 12~48V DC wide range power input with power booster function

► Up to 100-watt PoE budget (48VDC), 100-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

► Supports DIN-Rail and Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temp

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC) Overview

The LNK-INJ301-100 product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt PoE++ 100W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 100W PoE output.

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC) Technical Indexes

Ethernet
Standards:	IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC) ordering information

Model	Description
LNK-INJ301-100	Hardened Gigabit 1-port Ethernet Input + 1-port 100W PoE++ Output Injector with 12~48V DC wide range power input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)
