Unmanaged Industrial 8-port 10/100/1000BASE-T (PoE+) Ethernet Switch

Name: Unmanaged Industrial 8-port 10/100/1000BASE-T (PoE+) Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC008GP
Price: 80.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, RoHS, FCC

Model Number: LNK-IMC008GP

Document: E-link LNK-IMC008GP Industr....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Weight:	0.6Kg	Dimensions (WxDxH)::	150 X 115 X 50 Mm
Mounting Options:	DIN-Rail / Wall-mount	Power Consumption:	30W Max Per Port (Alternative B Mode)

Weight:	0.6Kg
Dimensions (WxDxH)::	150 X 115 X 50 Mm
Mounting Options:	DIN-Rail / Wall-mount
Power Consumption:	30W Max Per Port (Alternative B Mode)

Description

Unmanaged Industrial 8-port 10/100/1000BASE-T (PoE+) Ethernet Switch

Product Advantages

► 8x10/100/1000Base-TX with PoE+

► Support IEEE802.3at PoE(30W per port)

► RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports 16K MAC address

► 2M bits frame buffer memory

► Supports DIN-Rail and Wall-mount installation

► Redundant Power Inputs

► -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

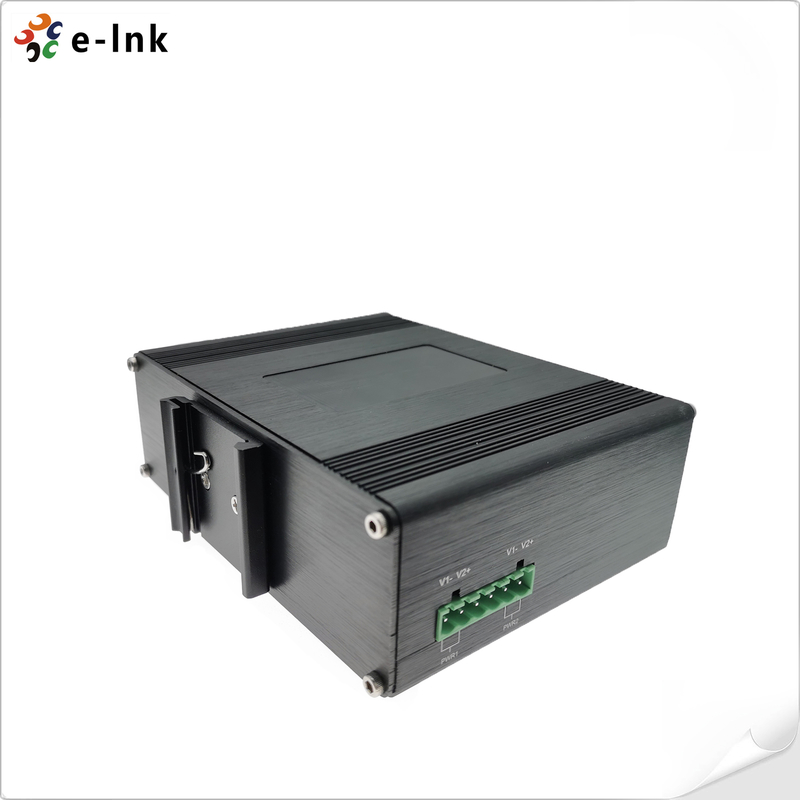

LNK-IMC008GP is an 8 ports 10/100/1000Base-TX Hardened Ethernet PoE switch. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Technical Indexes

Ethernet
Packet Buffer Memory:	2M bits
Switch Fabric:	16 Gbps
Max Packet Length:	10K Bytes
Address Table Size:	16K MAC Addresses
Interface
Connector:	8 x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	245W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at
PoE:
Port:	RJ45 Port 1 ~ Port 8
Max. Power per Port:	30W Max per port (Alternative B Mode)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet (Per Port):	Link/Activity
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount

Application

Unmanaged Industrial 8-port 10/100/1000BASE-T (PoE+) Ethernet Switch 0

Ordering Information

Model	Description
LNK-IMC008GP	Industrial 8-port 10/100/1000BASE-T (8-port PoE+) Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
