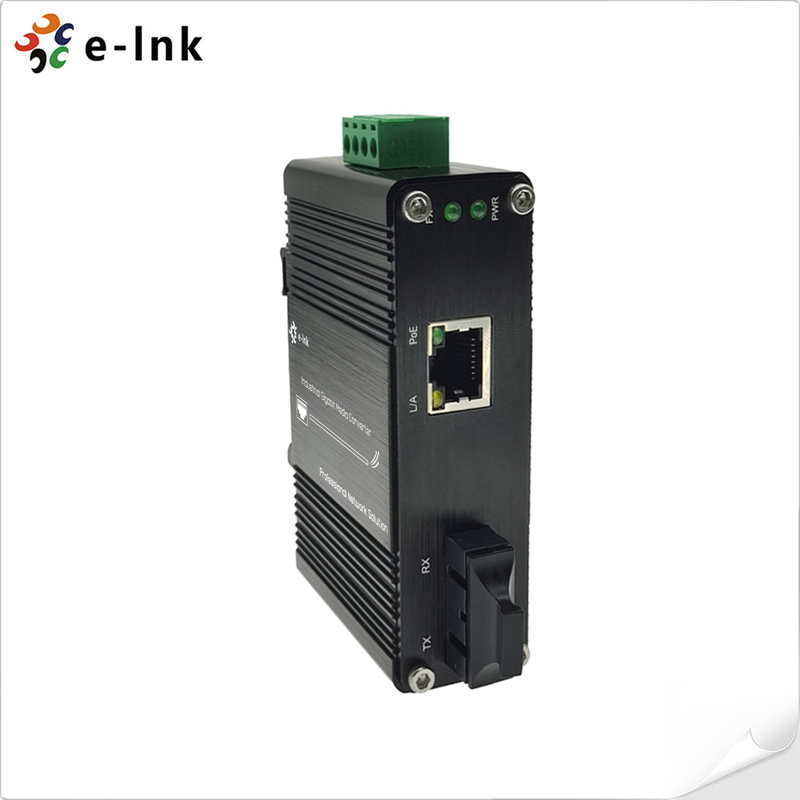

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter

Name: Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter
Brand: E-link China Technology Co.,LTD
SKU: The LNK-IMC3011P60
Price: 154.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS, FCC

Model Number: The LNK-IMC3011P60

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $39-270

Packaging Details: Media Converter Standard Export Package

Delivery Time: 5-8working days

Payment Terms: T/T,Western Union,,Paypal

Supply Ability: 100000pcs/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      60W PoE+ Media Converter, Mini Industrial Media Converter, 10/100/1000BASE-T Media Converter


Key Word:	Mini Industrial PoE Media Converter	Input Power:	12~48VDC
Weight:	0.25Kg	Dimensions (WxDxH）:	95 X 70 X 30 Mm
Operating Temperature:	-40°C To 75°C	Mounting Options:	DIN-Rail/Wall-mount

Key Word:	Mini Industrial PoE Media Converter
Input Power:	12~48VDC
Weight:	0.25Kg
Dimensions (WxDxH）:	95 X 70 X 30 Mm
Operating Temperature:	-40°C To 75°C
Mounting Options:	DIN-Rail/Wall-mount

Description

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter

Mini Industrial PoE Media Converter Advantages

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

► IEEE802.3af/at compliant

► Up to 60W of power over 4-pairs

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

The LNK-IMC3011P60 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. The Ethernet port support 60W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC3011P60 Series is easy to mount on a DIN rail or in distribution boxes.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2048K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x 1000Base-X SC
Electrical and Mechanical
Input Power:	12~48VDC, 4-pin terminal block
Output Power	48VDC
Power Consumption:	65W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC3011P60	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC3011P60-20	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC3011P60S-20	Mini Industrial PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
