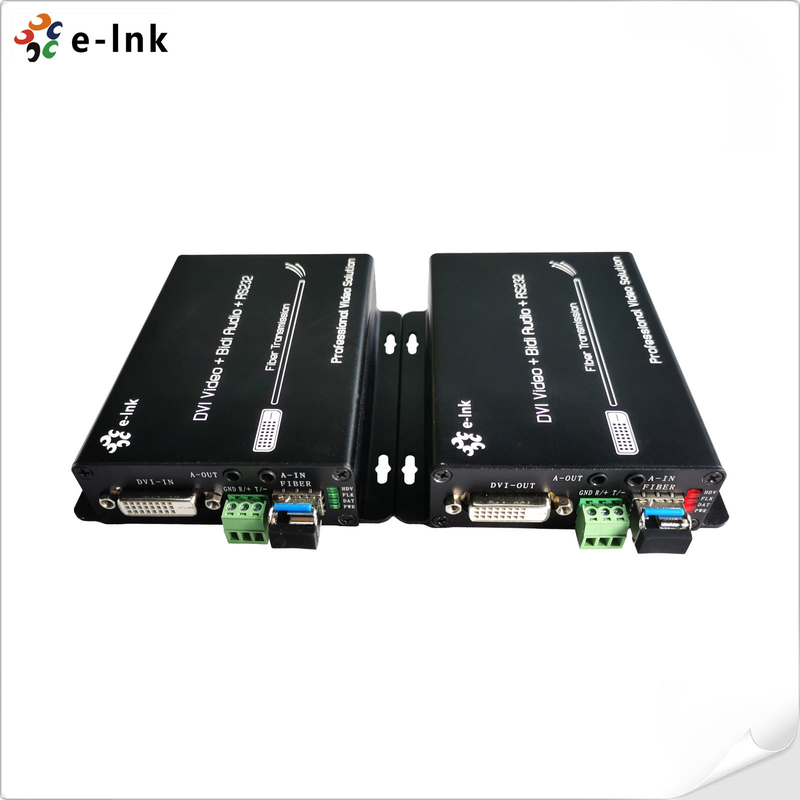

DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

Name: DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-DVI-1D1BA
Price: 229.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS

Model Number: LNK-DVI-1D1BA

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Transmitter:	1Ch Input + 1Ch Output	Receiver:	1Ch Input + 1Ch Output
Baud Rate:	≤115200	Fiber Type:	Single-mode
Power Supply:	The Power Adapter: DC 5V	Dimension (LxWxH):	120 X 83 X 28 (mm)

Transmitter:	1Ch Input + 1Ch Output
Receiver:	1Ch Input + 1Ch Output
Baud Rate:	≤115200
Fiber Type:	Single-mode
Power Supply:	The Power Adapter: DC 5V
Dimension (LxWxH):	120 X 83 X 28 (mm)

Description

DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

Advantage

► Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable;

► Support resolution up to 1920*1200@60Hz ;

► Special support 1600*1200 @60HZ

► Support external bidirectional stereo audio transmission;

► Compliance with DVI 1.0 and HDCP 1.2 standard;

Overview

The LNK-DVI-1D1BA Fiber optic extender provides extension of DVI signals long distances over one

fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio

transmission function. The extender can use for a wide range of applications requiring long distance

transmission of high resolution with high quality by its good stability and powerful security.


DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender 0

Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0 and HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Compliant	1080P@50/59.95/60Hz( Max 19201200@60Hz) 1080P@23.98/24/29.97/30Hz, 1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 16001200 @60HZ
	Connector	Female DVI-D
	Impedance	100Ω
	DVI Cable Range	<5Meter (Resolution up to 1920*1200@60Hz)
Audio	Interface	3.5MM external stereo audio
	Transmitter	1Ch Input + 1Ch Output
	Receiver	1Ch Input + 1Ch Output
RS232	Interface	3-Pin Terminal Block
	Baud Rate	≤115200
	Data Bits	8 bits
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	850nm/1310nm/1550nm
	Interface bandwidth	3Gbps
	Transmission distance	Multi-mode fiber: <500M Single-mode fiber: 0~80km
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 4W
	Temperature	Operating: -20℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	120 x 83 x 28 (mm)

Application

DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender 2
