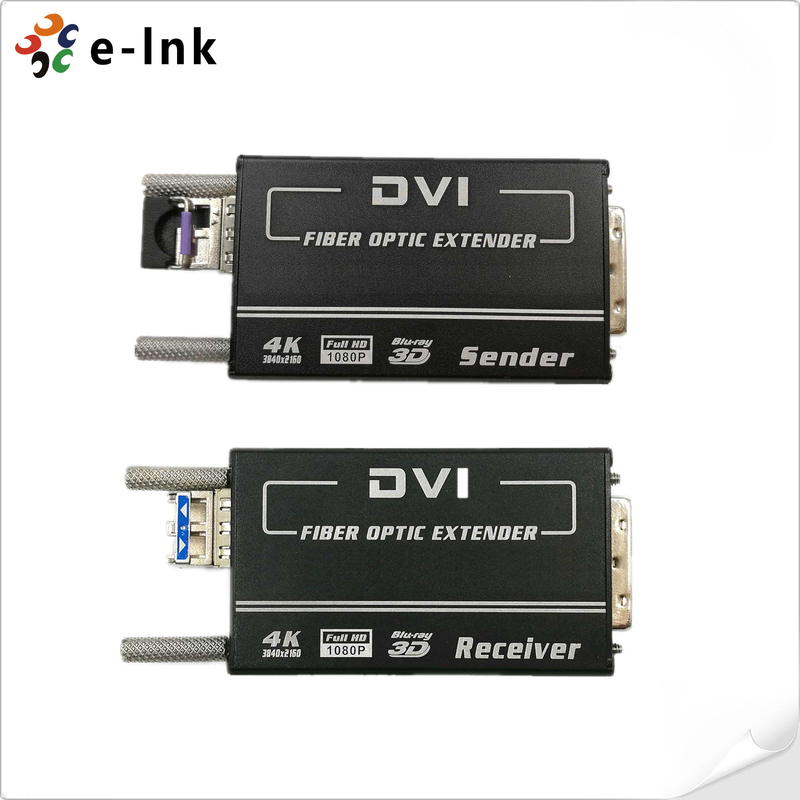

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS

Model Number: LNK-D4K-SM-S

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price
Contact Now
Specifications
Highlight:
Operating Temperature:
32° To +112° F. (0° To +50° C)
Storage Temperature:
-40° To +185° F. (-40° To +85° C)
Dimensions (L X W X H):
69mm X 42 Mm X 18.2 Mm
Net Weight:
100 G
DVI Input / DVI Output:
1x DVI-D 18+1 Male Connector
Optical:
1x SFP+ Port
Operating Temperature:
32° To +112° F. (0° To +50° C)
Storage Temperature:
-40° To +185° F. (-40° To +85° C)
Dimensions (L X W X H):
69mm X 42 Mm X 18.2 Mm
Net Weight:
100 G
DVI Input / DVI Output:
1x DVI-D 18+1 Male Connector
Optical:
1x SFP+ Port
Description
Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID

Advantage

► Support DVI 1.0 and HDMI v1.4

► Support learns and stores the display EDID info

► Support resolutions up to 3840x2160/30P

► 7.1 channel LPCM, 192 kHz, 24-bit

► Support 3840*2160/60P(YUV 420)

► Plug and Play ,Built-in EQ(Receiver)

Overview

E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in

the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without

any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows

the advantage of high performance and good signal quality as well as low cost.

The LNK-D4K-SM series is a high performance 4K Optical Extender that transmits high resolution DVI signals

over extreme distances using one fiber. This extender supports HDMI v1.4 signals with resolutions up to

4K (3840*2160/30p) over cable distances up to 80km (default 1.4km).


Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID 0

Technical Indexes

Parameter

Specifications

Compliance

DVI1.0,HDMI v1.4

Bandwith

10.2 Gbps

Supported Resolutions

3840x2160/30P,3840*2160/60P(YUV 420), 4096*2160/60P(YUV 420)

Digital Audio Support

7.1 channel LPCM, 192 kHz, 24-bit audio capability

Connections

DVI Input / DVI Output

1x DVI-D 18+1 Male connector

Optical

1x SFP+ port

Cable

Fiber Cable

9/125μ Single-Mode Fiber:≤80Km(default 1.4km)

DDC Support

EDID Support

An EDID memory built into the Tx module can learn and store the display EDID info.

HDCP Pass-through Support

Does not support the HDCP and CEC

Mechanical

Construction

High-impact Alufer enclosure

Dimensions (L x W x H)

69mm x 42 mm x 18.2 mm

Net Weight

LNK-D4K-SM-S: 100 g              LNK-D4K-SM-R: 100 g

Application

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID 1

Ordering Information

Model

Description

LNK-D4K-SM-S

Mini 4KX2K DVI Fiber Sender  Manual EDID,DC5V1A

LNK-D4K-SM-R

Mini 4KX2K DVI Fiber Receiver  Manual EDID,DC5V1A
