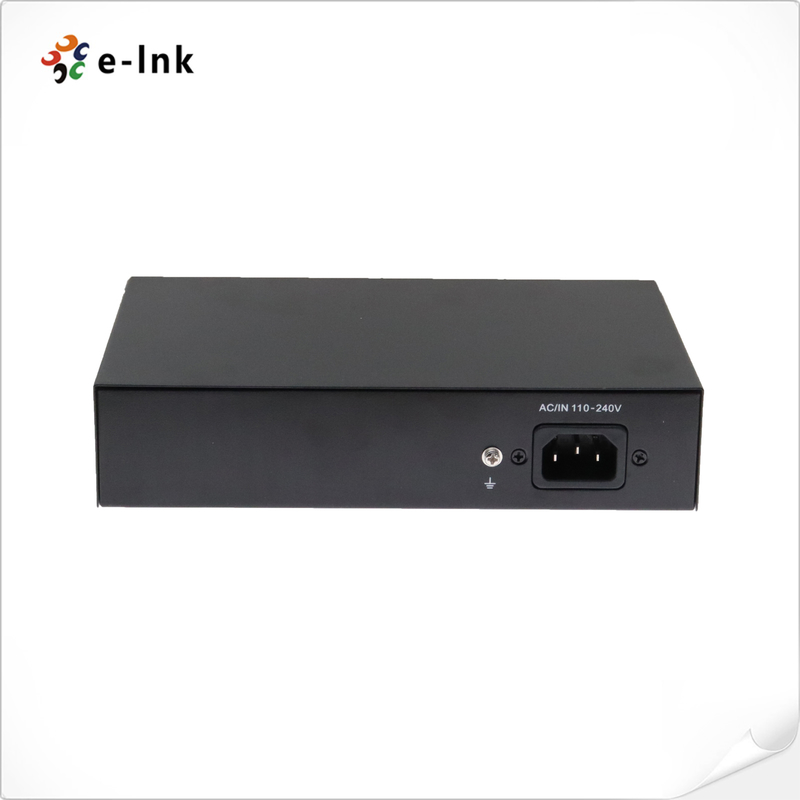

4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch

Name: 4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-2.5G-204P
Price: 293.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS and FCC

Model Number: LNK-2.5G-204P

Document: E-link LNK-2.5G-204P PoE Sw....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $29.9-559

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              4x2.5Gbps PoE Ports PoE Switch, 2 x10G SFP+ PoE Switch, 2.5G PoE Switch


Operating Temperature::	-10℃ To 55℃	Power Consumption:	5W
Weight:	0.7KG	Dimensions (W X D X H):	200 X 118 X 44mm

Operating Temperature::	-10℃ To 55℃
Power Consumption:	5W
Weight:	0.7KG
Dimensions (W X D X H):	200 X 118 X 44mm

Description

4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch

Product Advantages

· 4 x 2.5Gbps PoE Ports

· IEEE802.3af/af Standards

· 2 x 10G SFP+ Fiber Ports

Overview

LNK-2.5G-204P Series PoE Switch provides 4 x 2.5G PoE ports and 2 x 10Gigabit SFP+ optical ports, which can directly enjoy 2.5G high-speed transmission when connected with various 2.5G devices. It adopts the store-and-forward mechanism and integrates high-capacity cache internally, effectively reducing the data forwarding delay, and all ports can realize non-blocking line-speed forwarding.

Technical Indexes

Standards	IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3bz
PoE Ethernet Port	Connector: RJ45 Data rate: 100M/1G/2.5G Cable: CAT6 or higher Distance: ≤100 meter Standards: IEEE802.3af/at Power: Each port≤30W, all ports 75W Max PoE Output: DC 52V±5% PoE Power Pin: 1/2+,3/6-
Fiber Port	Connector: SFP+ Data rate: 10G Wavelength: 850nm/1310nm/1490nm/1550nm Fiber type: Single Mode 9/125μm, Multi Mode 50/125μm,62.5/125μm Distance: 550m ~ 100km
Backplane bandwidth	60Gbps
Forwarding method	10Base-tx: 14880pps/port; 100BASE-tx:148800pps/port 1000BASE-tx: 1488000pps/port 10000BASE-tx: 14880000pps/port
MAC address table	4K
Port function	power supply priority mechanism, fast and forwarding, MAC automatic learning and aging IEEE802.3X Full Duplex Flow Control and Backpressure Half Duplex Flow Control
Packet forwarding rate	44.64Mpps
Power	110-240V AC
Power consumption	5W
Operation Temperature	-10℃ to 55℃
Storage Temperature	-40℃ to 85℃
Relative Humidity	10% to 90% (non-condensation)
Size	200 x 118 x 44mm
Weight	0.7KG
Material	Metal

Ordering Information

Model	Description
LNK-2.5G-204P	4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch
