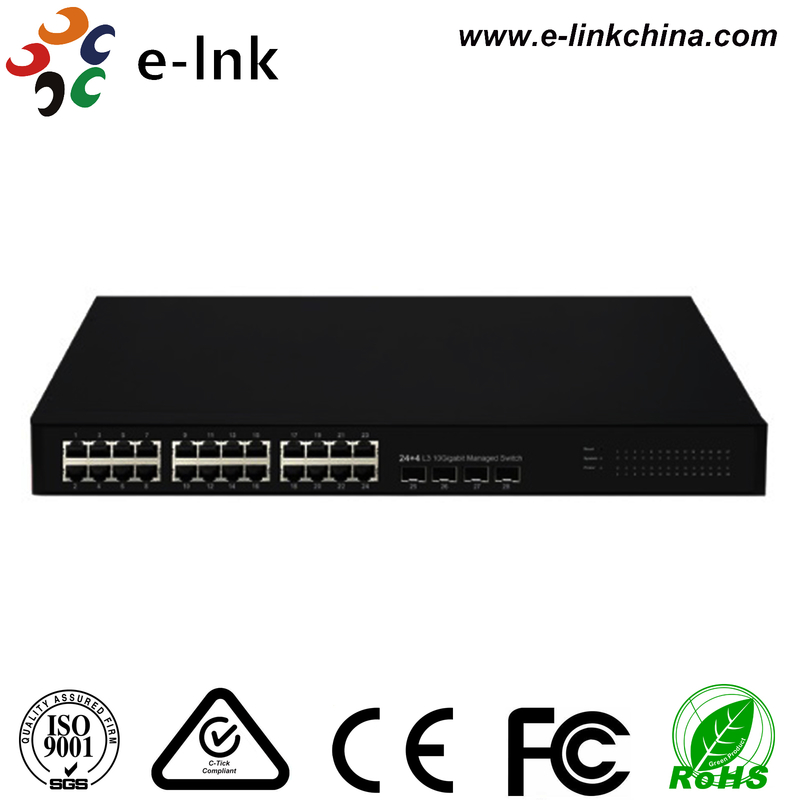

L3 Managed 24G + 4 10G SFP+ Ethernet Switch

Model

LNK-M24G4F: L3 24+4 10Gigabit SFP+ Ethernet Switch

Basic characteristics

Fixed port

24 10/100/1000Base-T Ethernet ports, 4 10G SFP+ ports

Backplane bandwidth

128Gbps

Packet forwarding rate

95.232Mbps

Processor

RISC 400MHz

Flash memory capacity

8MB

The memory capacity

128MB

Address table

16K

Product characteristics

Spanning tree

Support STP, RSTP, MSTP
Support PVST/PVST+

Flow control

Based on a standard IEEE 802.3x flow control
Using IEEE 802.1Qbb priority flow control
Support CAR function

Broadcast control

Restraining broadcast storm,

stop sending so long as reaching a critical point

multicast control

IGMP Snooping multicast message automatic monitoring

multicast routing

IGMP v1/v2/v3, MLDv2
PIM-SM, OLINK&PIM-DM
DVMRP (Distance Vector Multicast Routing Protocol)
GMRP (multicast dynamic registration protocol)

Port binding

Each group of a maximum of 8, while support 128 group
LACP dynamic or static polymerization

Port mirroring

Support based on flow classification mirroring and port mirroring

Stacked

Stacked 16 hard, soft stacking 32
Using clustering techniques, with a unified centralized management of IP address to do address resource saving

Routing management

Static routing
RIP v1/v2, OSPFv2, BEIGRP (compatible with Cisco EIGRP), BGPv4, ISIS, BGP
Anti virus intelligent routing function

Strategy routing

Support based on IP strategy routing

The proxy function

Support Proxy ARP, DNS Proxy

Redundancy backup

Support for VRRP, HSRP Hot Standby Router Protocol

Characteristics of DHCP

DHCP Server, DHCP Client and support DHCP relay

Function of NAT

Support the static or dynamic NAT address translation function

Network management

SNMP v1/v2/v3
RMON (1,2,3,9 group)
Telnet
WEB interface
Support for cluster management
Support SSH
Support for PDP (compatible with Cisco CDP.)
To support the fan, temperature, system log, hierarchical alarm

Physical characteristics

Appearance size

440x230x44(mm)

Power characteristic

AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup

Power

80W

Indicator lamp

Power indicator, indication of system, connecting / transceiver instructions

Environment humidity / temperature

0-50 ℃ operation,

-40-70 ℃ preservation,

0-90% no condensation
