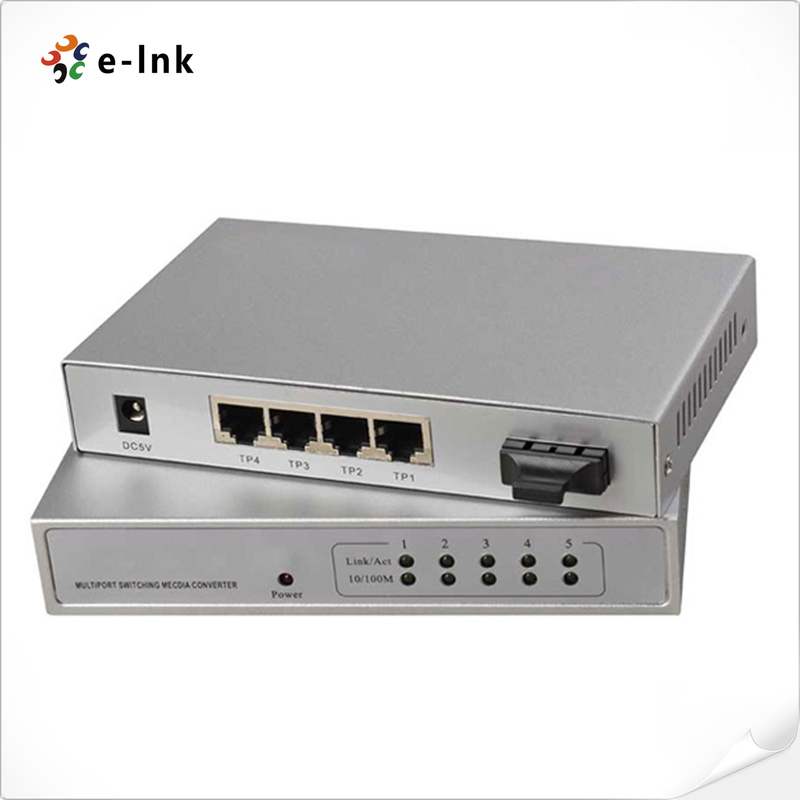

10/100/1000M Managed 1FX + 4TX Fiber Switch

Name: 10/100/1000M Managed 1FX + 4TX Fiber Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-M2100G-SFP
Price: 208.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS and FCC

Model Number: LNK-M2100G-SFP

Document: E-link 1000M Management 1FX....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $19.9-399

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              4TX Fiber Switch, 10/100/1000M Fiber Switch, 1FX Fiber Switch


Operating Temperature::	0 ℃ ~ 45 ℃	Dimensions:	158mm * 100mm * 28mm
Weight:	0.85Kg	Power Consumption::	Max.6W

Operating Temperature::	0 ℃ ~ 45 ℃
Dimensions:	158mm * 100mm * 28mm
Weight:	0.85Kg
Power Consumption::	Max.6W

Description

10/100/1000M Managed 1FX + 4TX Fiber Switch

Product Advantages

· Support 4 port 10/ 100/1000M auto-detect Half/Full duplex RJ45 ports and 1 fiber port.

· Support WEB-based network management.

· Support port VLAN and Tag VLAN. (8 Groups)

· Support data packet length up to 1552 bytes.

· Support MAC address auto-learning.

· Support IGMP Snooping.

· Support IEEE 802.1p priority tags.

· Support DSCP.

· Automatic MDI/MDI-X configuration.

· Support bandwidth control.

· Support for hardware Load Default button to restore the default value.

· Choice of fiber-connector from SC,FC,ST, LC, WDM, multi-mode / single-mode fiber /100Base-SX/ LX SFP.

Overview

This managed Gigabit Ethernet Optical Fiber Switch has one 1000M FX port and four 10/100/100M UTP ports. Customer can choose different FX specification according as his demand, such as multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.

Technical Indexes

Standards and Protocols Supported	IEEE802.3 , IEEE802.3u , IEEE802.3x, IEEE802.1Q
Wavelength	850nm/1310nm/1550nm
Port Number	5 ports
Ethernet port	4 RJ45
Optical port	1 SC (ST,FC optional) or 1 SFP
Distance	Dual Fiber MM: 2km Dual Fiber SM: 20/40/60/80/ 100km Single Fiber SM : 20/40/60/ 80km
MAC	2K
CPU	150Mhz or above
Memory	16MB or above
Input Voltage Range	5V/2A DC
Consumption	Max.6W
Operating Temperature	0 ℃ ~ 45 ℃
Storage Temperature	-40 ℃ ~ 70 ℃
Operating Humidity	10%~90% RH no condensing
Storage Humidity	5%~90% RH no condensing
Dimensions:	158mm * 100mm * 28mm

Application

10/100/1000M Managed 1FX + 4TX Fiber Switch 0
