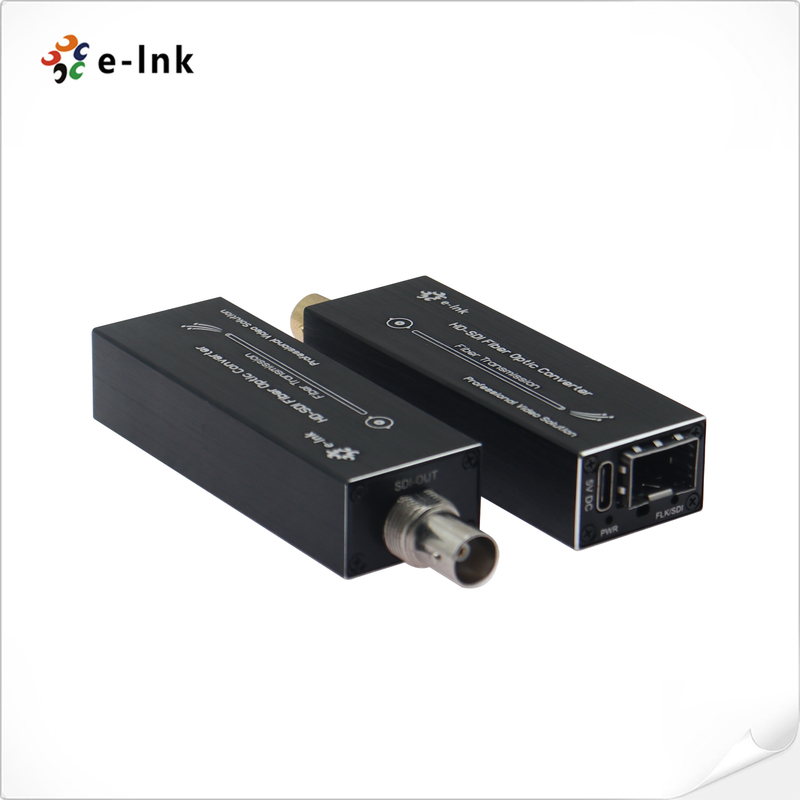

Mini HD-SDI over Fiber Extender

Name: Mini HD-SDI over Fiber Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-MHD
Price: 594.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-MHD

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Fiber Extender Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Keywords:	Fiber Extender	Operating Temperature:	-20℃～+70℃
Dimensions (LxWxH):	79 X 27 X 18 Mm	Consumption:	<3W
MTBF:	≥100000 Hours	Weight:	0.5KG/pair

Keywords:	Fiber Extender
Operating Temperature:	-20℃～+70℃
Dimensions (LxWxH):	79 X 27 X 18 Mm
Consumption:	<3W
MTBF:	≥100000 Hours
Weight:	0.5KG/pair

Description

Mini HD-SDI over Fiber Extender

Mini HD-SDI over Fiber Extender Advantages

► Each channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Terminal block power input; Hot swap and hot plug;

► Full digital non-compression broadcast level transmission;

► Super optic dynamic range and free of adjustment;

► Fiber optic WDM/CWDM/DWDM technique;

► industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

Mini HD-SDI over Fiber Extender Overview

LNK-MHD Series Mini HD-SDI Fiber Extender supports 1-channelHD-SDI Video (audio embedded) signal transmitted via fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for HD-SDI signal. With compact size, it can easily integrate in other devices. It’s widely used in surveillance and broadcasting area.

Mini HD-SDI over Fiber Extender Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 1.48Gb/s
Differential gain (10%～90% APL)	<1%
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
Video SDI standard	270Mbps (SD-SDI)
	1.485Gbps (HD-SDI)
Electrical
Power adaptor	5V DC, Type-C Interface
Power consumption	<3W

Mini HD-SDI over Fiber Extender Ordering Information

Model	Description
LNK-MHD-MM	Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-20	Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

Mini HD-SDI over Fiber Extender 0
