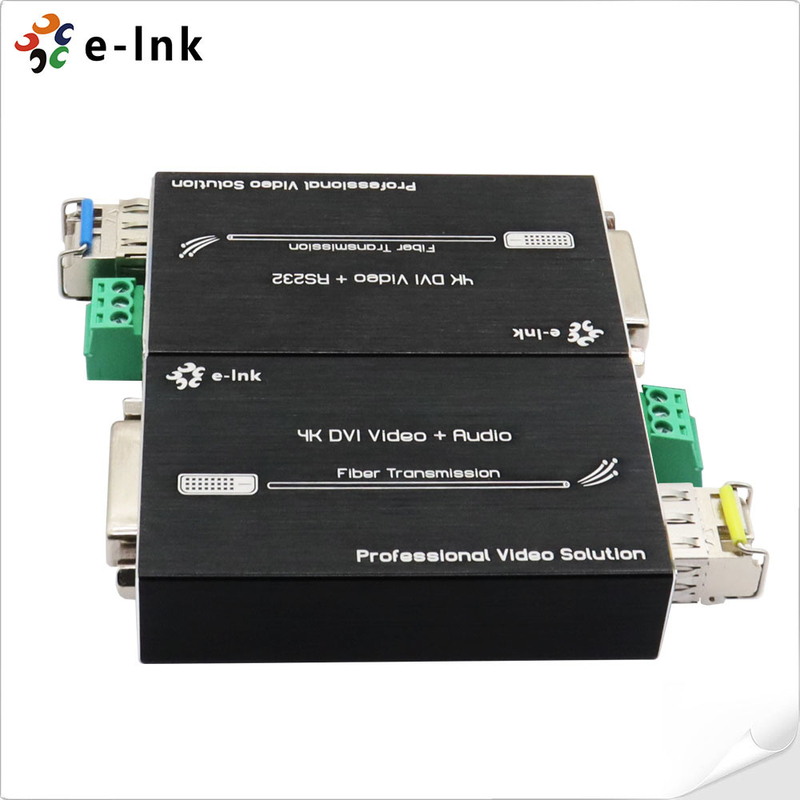

Mini 4K DVI Fiber Optic Extender with RS232

Name: Mini 4K DVI Fiber Optic Extender with RS232
Brand: E-link China Technology Co.,LTD
SKU: LNK-MDR4K Series 4K DVI Fiber Extender
Price: 424.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Model Number: LNK-MDR4K Series 4K DVI Fiber Extender

Document: E-link LNK-MDR4K Series Min....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: $79-769

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      DVI Fiber Optic Extender, Mini DVI Fiber Optic Extender, RS232 DVI Fiber Optic Extender


Connector:	DVI-D	Dimensions (WxDxH):	2.87 X 1.73 X 0.69in (73x44x17mm)
Operating Humidity:	5% To 90% RH (non-condensing)	Fiber Type:	SFP/LC
Power Supply:	5V DC (USB-C)	Power Dissipation:	<5W

Connector:	DVI-D
Dimensions (WxDxH):	2.87 X 1.73 X 0.69in (73x44x17mm)
Operating Humidity:	5% To 90% RH (non-condensing)
Fiber Type:	SFP/LC
Power Supply:	5V DC (USB-C)
Power Dissipation:	<5W

Description

Mini 4K DVI Fiber Optic Extender with RS232

Advantages

► DVI 1.0 and HDCP1.2 Support

► Uncompressed transmission, No delay, No losses

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Support Serial RS232 Signal

► Auto EDID, match different kind display device

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► Operating Case Temperature: -10~50°C

Overview

The LNK-MDR4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and RS232 signal over optical fiber up to distances of 80km at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Order Information

Model	Description
Model	Description
LNK-MDR4K-MM	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S20	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S40	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S80	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input


Mini 4K DVI Fiber Optic Extender with RS232

Application

Mini 4K DVI Fiber Optic Extender with RS232
