80~320VDC Power Input Industrial Gigabit PoE+ Injector

Name: 80~320VDC Power Input Industrial Gigabit PoE+ Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-INJ832
Price: 57.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC

Model Number: LNK-INJ832

Document: E-link LNK-INJ832 80~320VDC....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  Gigabit PoE+ Injector, 80~320VDC PoE+ Injector, Industrial Gigabit PoE+ Injector


Weight:	0.25Kg	Dimensions (WxDxH)::	95 X 70 X 30 Mm
Operating Temperature::	-40°C To 80°C (-40°F To 176°F)	Case:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount

Weight:	0.25Kg
Dimensions (WxDxH)::	95 X 70 X 30 Mm
Operating Temperature::	-40°C To 80°C (-40°F To 176°F)
Case:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount

Description

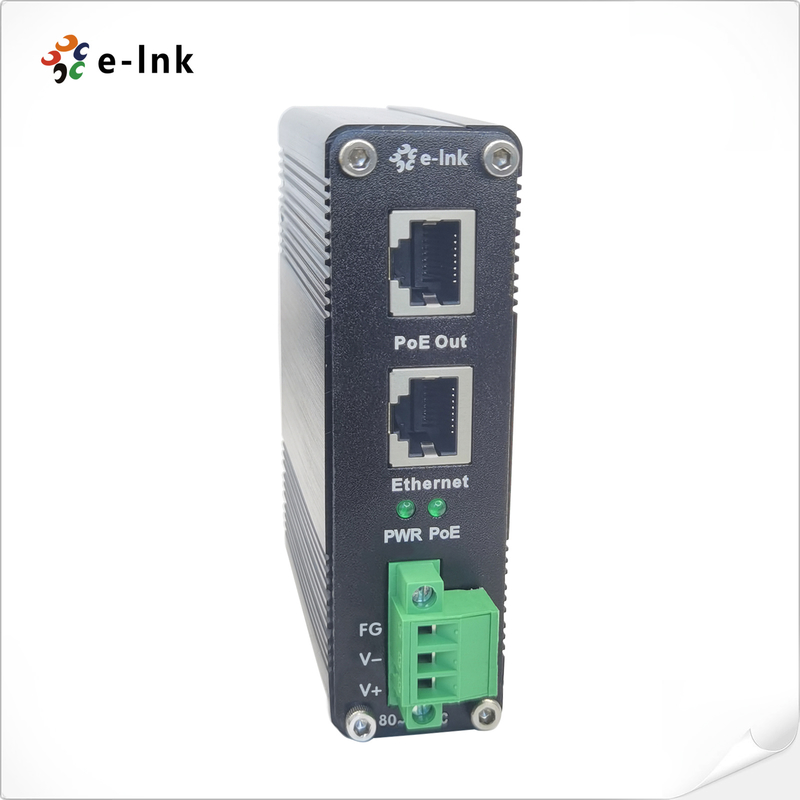

80~320VDC Power Input Industrial Gigabit PoE+ Injector

Product Advantages

► 80~320VDC wide-range input voltage

► Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN

► IEEE 802.3af/at compliant, supports a full 30 watt output

► Provides slim size with IP40 metal mechanism

► Support DIN-Rail & Wall-mount installation.

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

The LNK-INJ832 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3at.

Technical Indexes

Ordering Information

Model	Description
LNK-INJ832	80~320VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
