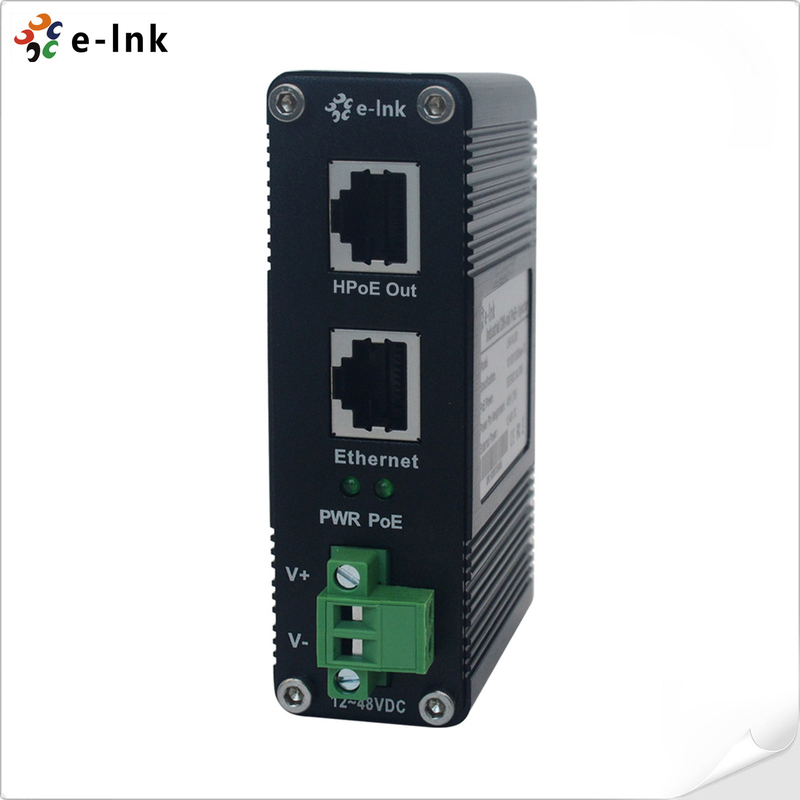

12~48V DC Power Input Industrial Gigabit 60W PoE Injector

Name: 12~48V DC Power Input Industrial Gigabit 60W PoE Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-INJ301-M12
Price: 57.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC

Model Number: LNK-INJ301-M12

Document: E-link LNK-INJ301-60 Indust....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Industrial Gigabit PoE Injector, 48V DC Industrial Gigabit PoE Injector, 48V DC Industrial PoE Injector


Weight:	0.25Kg	Dimensions (WxDxH)::	95 X 70 X 30 Mm
Operating Temperature::	-40°C To 80°C (-40°F To 176°F)	Case:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount	Max. Power Per Port::	60W Max Per Port (Alternative B Mode)

Weight:	0.25Kg
Dimensions (WxDxH)::	95 X 70 X 30 Mm
Operating Temperature::	-40°C To 80°C (-40°F To 176°F)
Case:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount
Max. Power Per Port::	60W Max Per Port (Alternative B Mode)

Description

12~48V DC Power Input Industrial Gigabit 60W PoE Injector

Product Advantages

► 12~48V DC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet Power Sourcing Equipment

► Support 10/100/1000Base-TX

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

► Small Size 95 x 70 x 30 mm

► Weight 0.25Kg

► Aluminum Alloy Metal Case

► Support DIN-rail mounting and wall mounting installation

Overview

The LNK-INJ301-60 product is a Hardened Gigabit 60W PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	65W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	60W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ301-60	12~48VDC Power Input Industrial Gigabit 60W PoE Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
