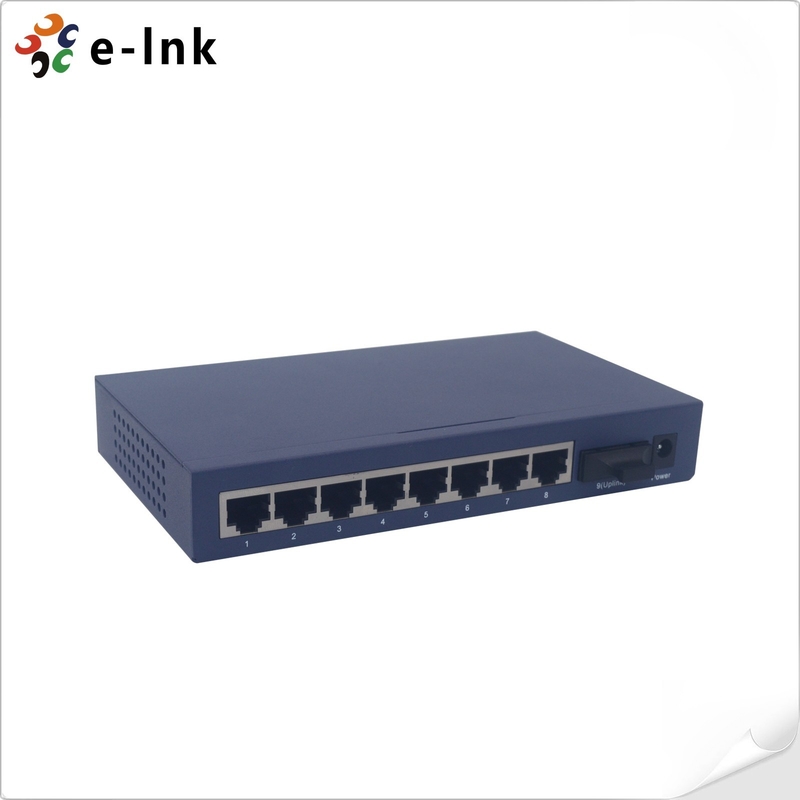

8 Ports PoE(250M) Fast Ethernet Switch

Name: 8 Ports PoE(250M) Fast Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-PS108
Price: 80.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE，FCC

Model Number: LNK-PS108

Document: E-link LNK-PS108 PoE Switch....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Weight:	500g	Operating Temperature:	0℃~55℃
CasingCasingCasingCasingCasing:	Aluminum Case	MAC:	2K
Dimension(LWH):	200mm×101.8mm×27mm

Weight:	500g
Operating Temperature:	0℃~55℃
CasingCasingCasingCasingCasing:	Aluminum Case
MAC:	2K
Dimension(LWH):	200mm×101.8mm×27mm

Description

8 Ports PoE(250M) Fast Ethernet Switch

Product Advantages

► Major ports: 1 pc 100Mbps uplink fiber port, 8 pcs 100Mbps down link Ethernet port, every port supports MDI/MDIX;

► Special function: One key CCTV model; 1～8 downlink ports can only communicate with uplink ports;

► Power input: DC48V～57V;

► Transmission Distance: 0～100m; fiber port 20km;

► Standard: Meet IEEE802.3, IEEE802.3u, IEEE802.3 af/at standards, PoE use End-Span, the spare cable can be of other use;

► Appearance: Delicate design and easy installation, configure the anti-theft lock hole, guard against theft

Overview

LNK-PS108 Series PoE Switch is a security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and Ethernet project security system. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability.

Technical Indexes

Item		Description
Power	Power Supply	Power Adaptor
	Voltage Range	DC48V~54V
	Consumption	＜5W
Ethernet	Speed	1～8 port:Default:10/100Mbps; CCTV:10Mbps; UPLINK:100Mbps
	Transmission Distance	1-8 port:Default:0～100m;CCTV:0~250m; UPLINK:20km
Network Switch	Ethenet Standard	IEEE 802.3/802.3u/802.3af/at
	Backplane Bandwidth	1.8G
	Packet Forwarding Rate	1.34Mbps
	Packet Buffer	768K
	MAC	2K
Status Indicator	Power Light	1pcs(Red)
	Ethernet Port Light	2pcs(Yellow&Green) on RJ45,yellow indicates PoE, green indicates Link/Act
	Fiber Light	1pcs(Green), green indicates Link/Act
	Surveillance Module Light	1pcs(Green), green indicates CCTV
Protection Level	Pluse Group	Level 2 Standard: IEC61000-4-4
	ESD	1a Contact Discharge Level 3 1b Air Discharge Level 3 Standard: IEC61000-4-2
	Anti-thunder Level	Level 3 Standard: IEC61000-4-5
Working Environment	Working Temperature	0℃~55℃
	Storage Temperature	-40℃~85℃
	Humidity(Non- condesing)	0~95%
Mechanical	Dimension(LWH)	200mm×101.8mm×27mm
	Out Shell	Galvanized Sheet
	Color	Black
	Weight	500g
Power/Distance 54V	Distance	100m	150m	200m	250m
	Power	26W	24W	23W	21W

Ordering information

Model	Description
LNK-PS108	1Fiber + 8RJ45 PoE+ Switch: 8x10/100M PoE+ (250m), 1XSC SM 20KM
