Industrial DIN-Rail 1~16Ch Contact Closure over Fiber Converter

Name: Industrial DIN-Rail 1~16Ch Contact Closure over Fiber Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-GY
Price: 399.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-GY

Document: E-link LNK-GY-K Series Indu....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $29-769

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      DIN-Rail fiber converter, 16Ch contact closure converter, industrial fiber optic converter


Working Temperature:	-40°C ~ 75°C	Dimensions:	133mm×40mm×120mm (H×W×D)
Installation:	35mm DIN-Rail, Wall Mounting	Weight:	685g
Linux Real TTY Drivers:	Linux 2.4.x, 2.6.x	Working Humidity:	5%~95 % (no Condensation)

Working Temperature:	-40°C ~ 75°C
Dimensions:	133mm×40mm×120mm (H×W×D)
Installation:	35mm DIN-Rail, Wall Mounting
Weight:	685g
Linux Real TTY Drivers:	Linux 2.4.x, 2.6.x
Working Humidity:	5%~95 % (no Condensation)

Description

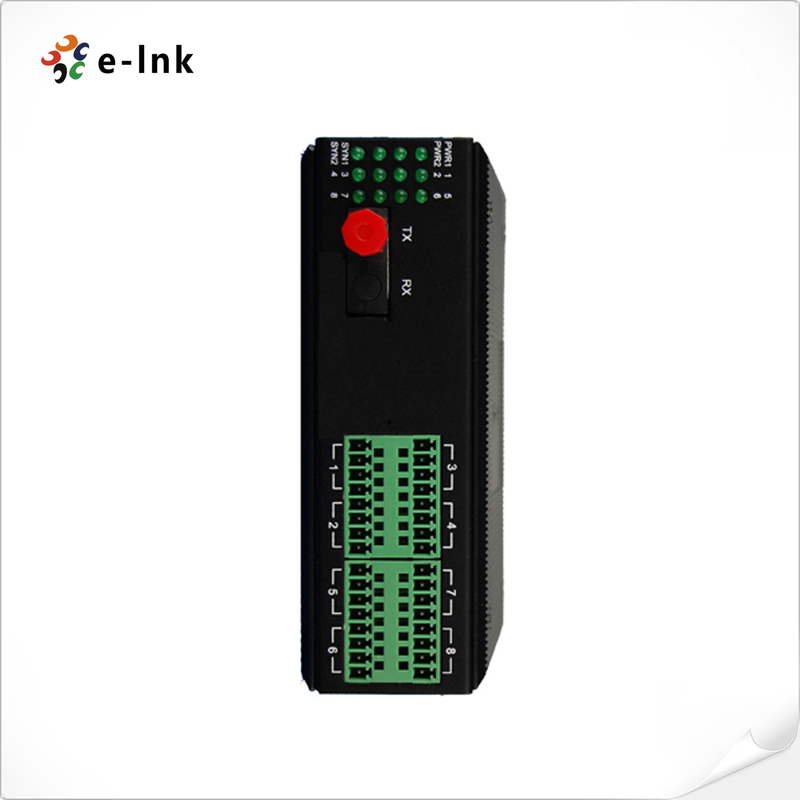

Industrial DIN-Rail 1~16Ch Contact Closure over Fiber Converter

Industrial DIN-Rail 1~16Ch Contact Closure over Fiber Converter

Product Advantages

► Integrated circuit based independent intellectual property rights

► Supports 16Ch one-way or 8Ch two-way contact closure

► Support Dry Contact and Wet Contact

► Each channel contact closure with LED indication for switch on and off

► Contact input open and close automatically detects

► Contact closure keep stable in the boot or no access condition, it will not be chaotic action

► Contact closure interface Lightning reached IEC61000-4-5 (8 / 20μS) differential mode: 6KV, impedance (2Ω); common mode: 6KV, impedance (2Ω) standard

Overview

The Industrial DIN-Rail 1~16Ch Contact Closure over Fiber Converter provides transmission of a contact closure signal over one optical fiber. The system comprises of a transmitter (TX) and a receiver (RX), each enclosed in a compact DIN-rail and wall mountable housing. This contact closure system is designed to operate over an extreme temperature range, providing reliability in harsh environments.

Technical Indexes

Fiber
Multi-mode Fiber:50/125um, 62.5/125um
Maximum transmission distance	2Km @ 62.5/ 125um multi mode
fiber, attenuation (3dbm/km)Wave Length	820nm
Transmitting power	-12dBm (Min) ~-9dBm (Max)
Receiver sensitivity	-28dBm (Min)
Link budget	16dBm
Fiber Type	FC/SC/ST/SFP (FC in default)
Single-mode Fiber:8/125um, 9/125um
Maximum transmission distance	20Km
Transmission distance	20Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length	1310nm
Transmitting power	-9dBm (Min) ~-8dBm (Max)
Receiver sensitivity	-27dBm (Min)
Link budget	18dBm
Fiber Type	FC/SC/ST/SFP (FC in default)
Contact Closure - Dry contact (in default)
Response time	<1ms
Contact output signal	30VDC/0.5A
Maximum switching frequency	50HZ
Contact Closure - Pulse Value/Wet contact
Interface type	Optical MOS Relay Interface
Response time	<5ms
Contact output signal	0-VCC/0.12A (VCC is the power supply voltage of the unit)
Maximum switching frequency	50HZ
Output Surge Protection	TVS + TSS Protection
Power Supply
Redundant dual power input	AC&DC9-48V power consumption <5W
Overload protection	Support
Reverse protection	Support
Redundancy protection	Support
Access terminal	4-pin 5.08mm pitch plug-in terminal
Working environment
Working temperature	-40°C ~ 75°C
Working Humidity	5%~95 % (no condensation)
Storage temperature	-40°C ~ 80°C
Mechanical:
Dimensions	133mm×40mm×120mm (H×W×D)
Casing	IP40 protection, Aluminum case
Installation	35mm DIN-Rail, Wall Mounting
Weight	685g

Ordering Information

Model	Description
LNK-GY-K01	Industrial DIN-Rail 1Ch Contact Closure over Fiber Converter: 1Ch Contact Closure (Dry Contact in default), FC Optical port, Single Mode Dual Fiber, 20KM, DC9-48V/AC9-48V Power Input, Operating Temperature -40°C ~ 85°C, standalone, Support DIN-Rail mounting and Wall mounting installation
LNK-GY-K02	Industrial DIN-Rail 2Ch Contact Closure over Fiber Converter: 2Ch Contact Closure (Dry Contact in default), FC Optical port, Single Mode Dual Fiber, 20KM, DC9-48V/AC9-48V Power Input, Operating Temperature -40°C ~ 85°C, standalone, Support DIN-Rail mounting and Wall mounting installation
LNK-GY-K04	Industrial DIN-Rail 4Ch Contact Closure over Fiber Converter: 4Ch Contact Closure (Dry Contact in default), FC Optical port, Single Mode Dual Fiber, 20KM, DC9-48V/AC9-48V Power Input, Operating Temperature -40°C ~ 85°C, standalone, Support DIN-Rail mounting and Wall mounting installation
LNK-GY-K08	Industrial DIN-Rail 8Ch Contact Closure over Fiber Converter: 8Ch Contact Closure (Dry Contact in default), FC Optical port, Single Mode Dual Fiber, 20KM, DC9-48V/AC9-48V Power Input, Operating Temperature -40°C ~ 85°C, standalone, Support DIN-Rail mounting and Wall mounting installation
LNK-GY-K16	Industrial DIN-Rail 16Ch Contact Closure over Fiber Converter: 16Ch Contact Closure (Dry Contact in default), FC Optical port, Single Mode Dual Fiber, 20KM, DC9-48V/AC9-48V Power Input, Operating Temperature -40°C ~ 85°C, standalone, Support DIN-Rail mounting and Wall mounting installation
