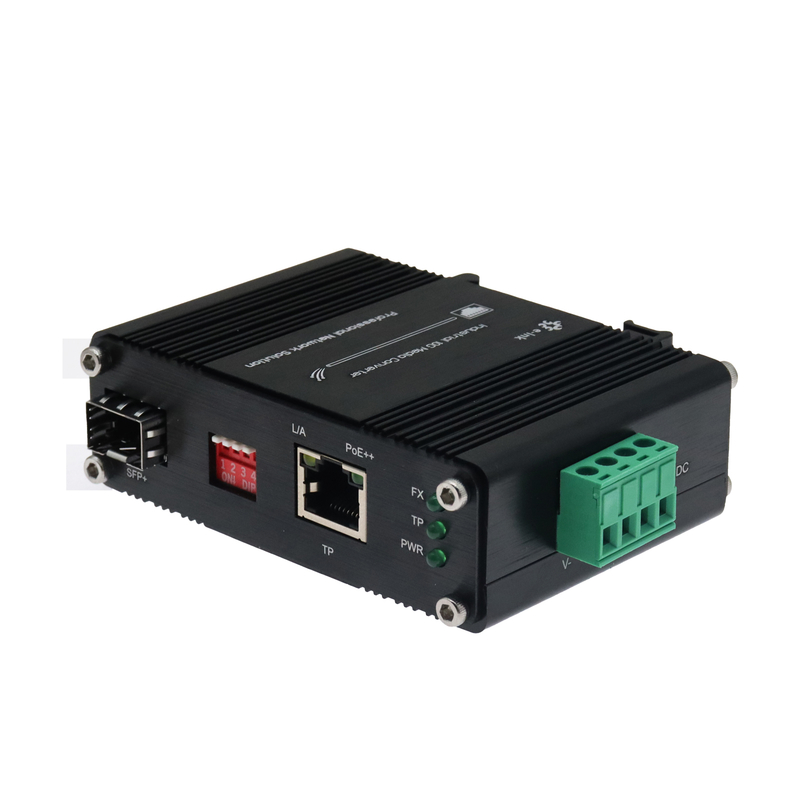

Industrial 10G PoE++ Media Converter 60W 802.3at to SFP+ Fiber DIN-Rail

Mini Industrial 10G/5G/2.5G/1G/100M IEEE802.3at 60W PoE to 10GBASE-X SFP+ Media Converter

Product Overview & Key Features:

✔️ High-Speed Multi-Gigabit Connectivity

• Supports 100M/1G/2.5G/5G/10GBASE-T Multi-Gigabit Ethernet over RJ45 copper interface

• Features a 10GBASE-X SFP+ fiber slot compatible with single-mode or multi-mode fiber modules

• Delivers non-blocking, wire-speed performance with low latency for real-time applications

✔️ High-Power PoE++ Capability

• IEEE 802.3at compliant delivers up to 60W of PoE++ power to connected devices

• Redundant power input (48-57VDC) with reverse polarity protection ensures continuous operation

• Advanced power management with overload and short circuit protection

✔️ Industrial Hardened Design

• IP40-rated metal housing provides protection against dust, moisture, and EMI/RFI interference

• Wide operating temperature (-40°C to 80°C) ensures reliability in extreme environmental conditions

• Compact, space-saving design optimized for industrial control cabinets and enclosures

✔️ Flexible Deployment Options

• DIN-rail and wall-mount installation for easy deployment in various industrial settings

• Plug-and-play operation requires minimal configuration for quick setup

• Extensive status indicators for real-time monitoring of power, link status, and data rates

Technical Specifications:

✔️ Multi-Gigabit Copper to Fiber Conversion

• 100M/1G/2.5G/5G/10GBASE-T RJ45 port with auto MDI/MDI-X crossover

• 10GBASE-X SFP+ fiber slot supports single-mode/multi-mode transceivers

• Auto-negotiation across all speeds (100Mbps to 10Gbps) with full/half duplex support

• Non-blocking wire-speed performance with <2μs latency

✔️ High-Power PoE++ Capability

• IEEE 802.3af/at compliant delivers up to 60W PoE++ power to connected devices

• 48-57VDC terminal block power input with reverse polarity protection

• Advanced power management with overload and short circuit protection

✔️ Network Management & Monitoring

• Comprehensive LED indicators for power, link status, speed, and PoE status

• Link fault pass-through (LFP) capability for network integrity

• Remote power cycling and reset functionality

✔️ Reliability & Safety Features

• Redundant power system design with over-temperature protection

• 100% full load burn-in testing for 72 hours

• CE, FCC, RoHS compliant for global market acceptance

Typical Applications:

• Industrial automation networks • Factory backbone connectivity

• Intelligent transportation systems • Traffic management systems

• Power utility communications • Renewable energy monitoring

• Outdoor wireless backhaul • Security surveillance systems

• 5G small cell networks • WiFi 6/6E access points
