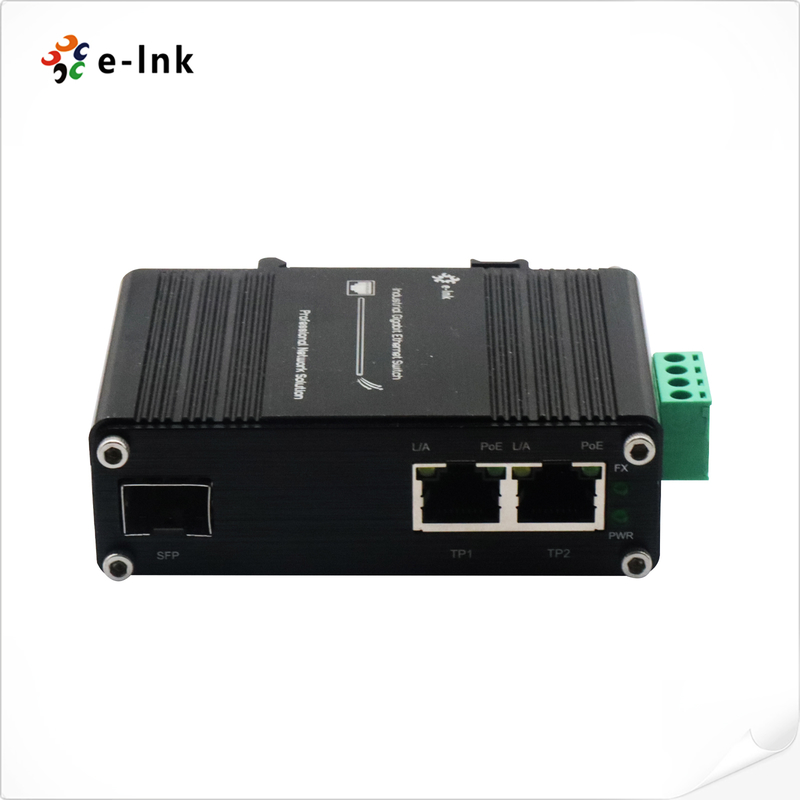

Industrial Media Converter 60W 2xRj45 Converter PoE++ to SFP Slot DIN Rail

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 60W

 PoE++ Media Converter

​

Product Overview:

The LNK-IMC1200GP60-SFP is a high-performance industrial media converter designed to deliver advanced network connectivity and power distribution in demanding environments. It features one 100/1000Base-X SFP fiber port that supports a wide range of pluggable SFP modules—including both single-mode and multi-mode fiber types with single or dual fiber cores—enabling customizable, long-distance optical communication with exceptional flexibility.

Equipped with two 10/100/1000BASE-T copper Ethernet ports, this converter provides high-power PoE++ support compliant with IEEE 802.3bt standards, delivering up to 60W per port to efficiently operate power-intensive devices such as PTZ cameras, wireless APs, and industrial VoIP systems.

Housed in a ruggedized metal casing, the device operates reliably across an extended temperature range of -40°C to 75°C and meets EN55022 EMI standards, ensuring stable performance in electrically noisy settings. It supports both half and full-duplex modes with auto-negotiation for seamless integration into diverse network topologies.

Designed for easy deployment, the converter offers DIN-rail mounting compatibility, making it ideal for industrial control cabinets, telecom racks, and smart grid applications.

Features Description:

• Dual Gigabit Copper Ports with Auto MDI/MDI-X: Two auto-sensing 10/100/1000BASE-T RJ45 interfaces provide seamless cable compatibility and eliminate crossover requirements in mixed-network environments.

• Multi-Rate SFP Fiber Slot with Auto-Detection: Features one dual-mode SFP port that automatically recognizes 100Base-FX or 1000Base-X fiber modules, supporting both single-mode and multi-mode transceivers for flexible fiber connectivity.

• Tri-Mode PoE/PoE+/PoE++ Compliance: Supports IEEE 802.3af (15.4W), IEEE 802.3at (30W), and high-power 60W PoE++ over all four pairs, enabling versatile device powering for access points, pan-tilt-zoom cameras, and industrial phones.

• Adaptive Duplex Operation & Auto-Negotiation: Automatically configures full/half-duplex modes and negotiates optimal transmission speeds for efficient bandwidth utilization across diverse network architectures.

• Energy Efficient Ethernet (EEE) Technology: Reduces power consumption by up to 80% during low-data activity periods while maintaining full compatibility with IEEE 802.3az standards.

• Industrial-Grade Terminal Block Power Input: Accepts 48-57VDC wide-range power supply through secure screw-terminal connections, ensuring stable operation in environments with voltage fluctuations.

• Flexible DIN-Rail & Wall-Mount Design: Enables quick installation in control cabinets, server racks, and compact industrial enclosures with universal mounting options.

• Extended Temperature Hardened Design: Operates reliably in extreme environments from -40°C to 75°C (-40°F to 167°F), making it suitable for unheated warehouses, outdoor cabinets, and harsh industrial settings.

Application Scenarios

• High-Power PoE++ Deployments: Supports power-intensive devices including PTZ cameras, 802.11ax wireless systems, and industrial IoT equipment with 60W PoE++ output per port

• Fiber-Optic Network Extension: Provides single-mode/multi-mode fiber connectivity for long-distance backbone links in campus networks, manufacturing plants, and transportation infrastructure

• Industrial Automation Systems: Delivers reliable connectivity for motor drives, PLC controllers, and HMI panels in EMI-intensive manufacturing environments

• Outdoor & Ruggedized Applications: Operates reliably in wide-temperature environments (-40°C to 75°C) for solar farms, railway communications, and intelligent transportation systems (ITS)

• Power Utility & Smart Grid Networks: Enables substation automation, grid monitoring, and distribution control with enhanced electrical isolation and surge protection

• IP Surveillance and Security Systems: Powers high-performance security devices including thermal cameras, access control systems, and intercoms over extended distances

• Wireless Carrier Infrastructure: Supports 4G/5G small cells, microwave backhaul, and WLAN deployments with fiber connectivity and remote powering capabilities

• DIN-Rail Industrial Enclosures: Facilitates space-efficient installation in control cabinets, distribution boxes, and modular industrial racks

Specifications

Order Information

Application Display Diagram
