Industrial Injector Gigabit 95W 802.3bt PoE++12~48VDC RJ45 Port

Name: Industrial Injector Gigabit 95W 802.3bt PoE++12~48VDC RJ45 Port
Brand: E-link China Technology Co.,LTD
SKU: LNK-INJ301-90
Price: 72.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-Link

Certification: ISO9001，ROHS，FCC，CE

Model Number: LNK-INJ301-90

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: US$65~US$79 / Pcs

Packaging Details: Industrial PoE Injector standard export package

Delivery Time: 3-5 Working Days

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: 4000 Pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Dimensions (WxDxH):	95 X 70 X 30 Mm	Weight:	0.25Kg
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)	Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount	Input Power:	12~48VDC

Dimensions (WxDxH):	95 X 70 X 30 Mm
Weight:	0.25Kg
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Input Power:	12~48VDC

Description

Industrial Injector Gigabit 95W 802.3bt PoE++12~48VDC RJ45 Port

Industrial Injector Gigabit 95W 802.3bt PoE++12~48VDC RJ45 Port

Features

1. 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

2. Support 95W LTPoE++ Power Sourcing Equipment

3. Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

4. Support 10/100/1000Base-TX

5. Extensive LED indicators for PoE diagnostics

6. 12~48V DC wide range power input with power booster function

7. Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

8. Supports DIN-Rail and Wall-mount installation

Overview

The LNK-INJ301-90 product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	100W Max.
Power over Ethernet:
Standard:	IEEE 802.3bt 4-pair Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
PoE Budget:	Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC)

Ordering Information

Model	Description
LNK-INJ301-90	Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input
Mounting Options	Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	Power Supply is to be purchased separately.

Pictures

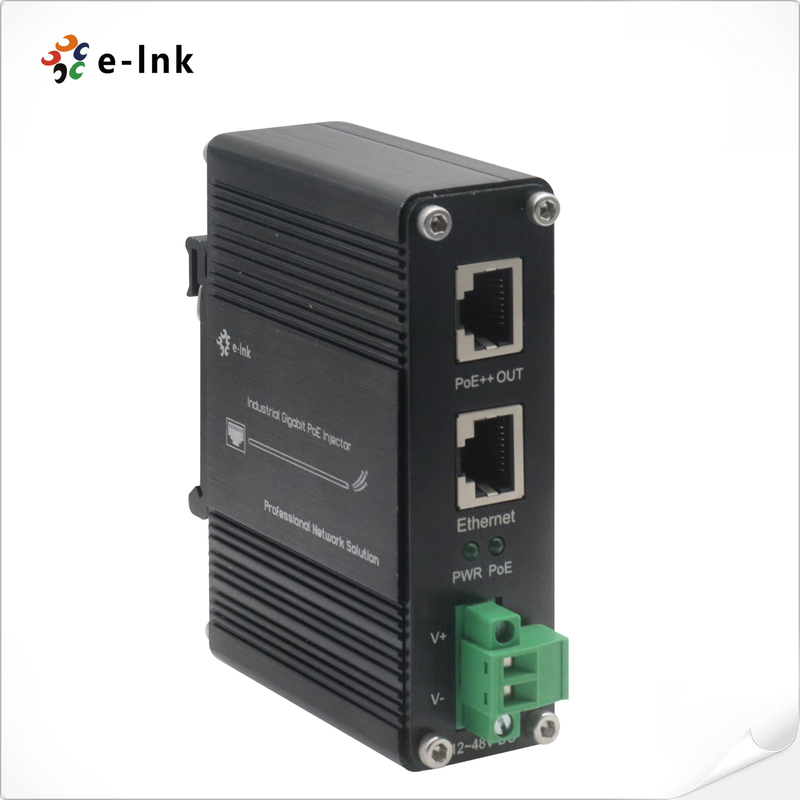

Industrial Injector Gigabit 95W 802.3bt PoE++12~48VDC RJ45 Port 0

Industrial Injector Gigabit 95W 802.3bt PoE++12~48VDC RJ45 Port 1

Industrial Injector Gigabit 95W 802.3bt PoE++12~48VDC RJ45 Port 2

Industrial Injector Gigabit 95W 802.3bt PoE++12~48VDC RJ45 Port 3

Industrial Injector Gigabit 95W 802.3bt PoE++12~48VDC RJ45 Port 4
