Industrial 10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function

Product Overview:

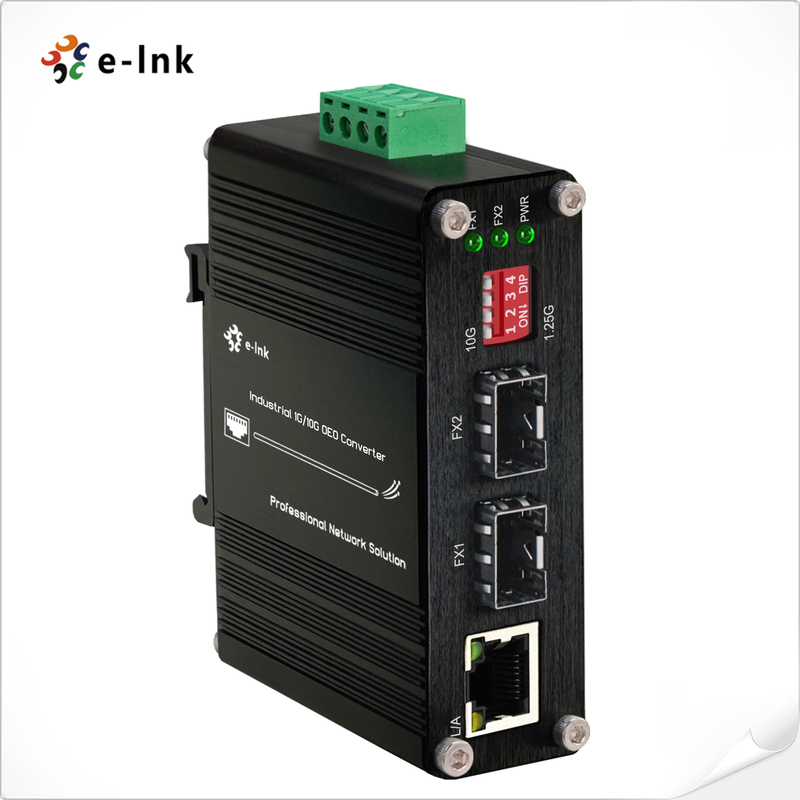

The ETH-IMC2402-OEO Series is an industrial-grade 1G/10G SFP+ to SFP+ Optical-Electrical-Optical (OEO) Converter designed for high-speed network extension and media conversion in demanding environments. This versatile device functions as both a 3R (Reamplify, Reshape, Retime) fiber repeater for long-distance 10Gbps transmission and a 1G Ethernet media converter, ensuring signal integrity across extended network segments.

Supporting multiple protocols including SDH/SONET STM-64/OC-192, 10G Fiber Channel, and 10G Ethernet, this converter is ideal for network backbone applications in SAN, LAN, and MAN infrastructures. It features flexible optical wavelength conversion (1310nm/1550nm/CWDM/DWDM) and loop-back functionality, making it suitable for telecommunications rooms, data centers, and R&D laboratories.

With a wide operating temperature range of -40°C to 80°C and robust industrial design, this converter reliably extends fiber optic connections up to 120km while providing seamless conversion between fiber and copper interfaces. Its advanced signal regeneration capabilities ensure optimal performance in harsh environmental conditions, making it an essential solution for modern high-speed network infrastructure deployments.

Product Features:

✅ Advanced 3R Signal Regeneration: Features Reamplify, Reshape, and Retiming (3R) technology to ensure signal integrity and minimize data loss over extended transmission distances.

✅ Transparent Low-Latency Transport: Provides transparent protocol conversion with very low delay, ideal for real-time applications and high-speed data networks.

✅ Hot-Pluggable SFP+ Design: Supports hot-swappable SFP+ modules with comprehensive status LED indicators for easy installation and real-time monitoring.

✅ Flexible Wavelength Support: Compatible with ITU-T prescribed DWDM/CWDM wavelengths and features Digital Diagnostic Monitoring (DDM) for precise fiber management.

✅ Advanced Network Testing: Supports Loop-back functionality and Jumbo Frame transmission for efficient network diagnostics and optimized data throughput.

✅ Dual-Rate Fiber Flexibility: DIP switch enables seamless switching between 1.25G and 10G fiber data rates, providing versatile deployment options.

✅ Multi-Function Media Conversion: Operates as both a 10G OEO converter and 1G Ethernet media converter, supporting copper-to-fiber and fiber-to-fiber conversion.

✅ Rugged Industrial Design: IP40-rated aluminum housing ensures reliable operation in harsh environments with superior EMI protection.

✅ Flexible Installation Options: Supports DIN-rail and wall-mount installation for easy deployment in industrial cabinets and space-constrained environments.

✅ Extended Temperature Operation: Maintains stable performance across -40°C to 80°C temperature range, suitable for extreme environment applications.

Application Scenarios

• Telecommunications Backbone Networks: Provides 10G signal regeneration and wavelength conversion for SDH/SONET STM-64/OC-192 networks in metropolitan area networks (MAN) and wide area networks (WAN) with 3R functionality ensuring signal integrity.

• Data Center Interconnectivity: Enables long-distance fiber connections between data centers using DWDM/CWDM wavelengths, supporting jumbo frames and low-latency transmission for storage area networks (SAN) and server farms.

• Industrial Automation Backbones: Extends 10G industrial Ethernet networks in manufacturing facilities with IP40 protection and wide-temperature operation (-40°C to 80°C) for harsh environment connectivity.

• Fiber Network Monitoring and Testing: Utilizes loop-back functionality and DDM support for network diagnostics and performance monitoring in telecommunications rooms and carrier infrastructure.

• Long-Haul Transmission Systems: Facilitates optical signal regeneration for distances up to 120km in campus networks, intelligent transportation systems, and utility communications with transparent protocol conversion.

• Hybrid Network Migration: Serves as dual-rate media converter between 1G Ethernet copper and 10G fiber networks, supporting seamless network upgrades and heterogeneous network integration.

• Mobile Network Infrastructure: Supports 5G front-haul and backhaul connections with hot-swappable SFP+ flexibility and precise timing synchronization for cellular network deployments.

Technical Indexs

Performance Data	Technical Indexes
Equipment function	3R Repeater
Transmission Speed	10G: 8.5Gb/s-11.7Gb/s
Protocols	8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS
Interface Type	SFP+ to SFP+
Transmission Distance	SFP+ module: up to 80km
Maximum Packet Forwarding Rate	14,880,950/S
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
MTBF	> 200,000 hrs
Ethernet Media Converter Specifications
Standards	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3x Full-duplex flow control
Work Mode	10/100/1000BASE-T to 1000BASE-SX/LX
Port Type	SFP to RJ45
Network Cables	Twisted-pair 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module)
Electrical and Mechanical
Input Power	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption	8W Max
Protection
Power Input Overload	Automatic Resettable
Reverse Polarity	Present
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	1.25G/10G	ON - 1.25~8.5G	OFF - 10.3G or 14.025G
	SW 2	Reserved	ON - Reserved	OFF - Reserved
	SW 3	Reserved	ON - Reserved	OFF - Reserved
	SW 4	Reserved	ON - Reserved	OFF - Reserved
LED Indicators:
PWR	Power Status
FX1	SFP Port-1
FX2	SFP Port-2
L/A	TP LINK/ACT
Dimensions (WxDxH)	95 x 70 x 30 mm
Weight	0.25Kg
Casing	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Orrdering Information

Application I: 1G/10G OEO Converter (3R Repeater)

Application II: fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter
