10/100M PoE Injector IEEE802.3at 30W
10/100M PoE Injector IEEE802.3at 30W
10/100M PoE Injector advantages
► Up to 30W of PoE Power
► Compliant with IEEE802.3af/at Standard
► Support 10/100Base-T
► Compliant with Limited Power Source (LPS)
► High Efficiency > 85%
► Low No Load Power Consumption < 0.5W
► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)
► Over-Voltage/Load/Temperature & Short Circuit protections
► Plug & Play, no configuration required
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non-standard Ethernet Terminals
► Injects 48V DC through a CAT 5 cable, use all 2 pairs into remote devices
such as wireless AP, IP phone, web camera and other functions
10/100M PoE Injector Overview
LNK-POE200AT 30W – 48V Gigabit PoE Injector is a long-distance driving, fast network performing,
strong PoE Output IEEE802.3af/at certified midspan. It is a single port indoor PoE injector that can
provide up to 30W based on the IEEE 802.3af/at standard.
The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras,
IP videophones, thin clients and other power Ethernet end terminals with 30W of power. The solutions
support IEEE 802.3af/at powered devices and are also backward compatible and safe to use with any
IEEE 802.3af/at terminal. With plug and-play installation, they are easy and cost effective to implement
leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future
proof network.
10/100M PoE Injector Technical Indexes
| Ethernet |
| Standards: |
IEEE 802.3 10Base-T Ethernet |
| |
IEEE 802.3u 100Base-TX Fast Ethernet |
| Processing Type: |
Forward |
| |
Half-duplex, Full-duplex |
| Forward Filter Rate: |
148,800pps (100Mbps) |
| Cabling: |
10/100Base-T: Cat5 or above |
| Maximum Distance: |
IEEE802.3af/at PoE (30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |

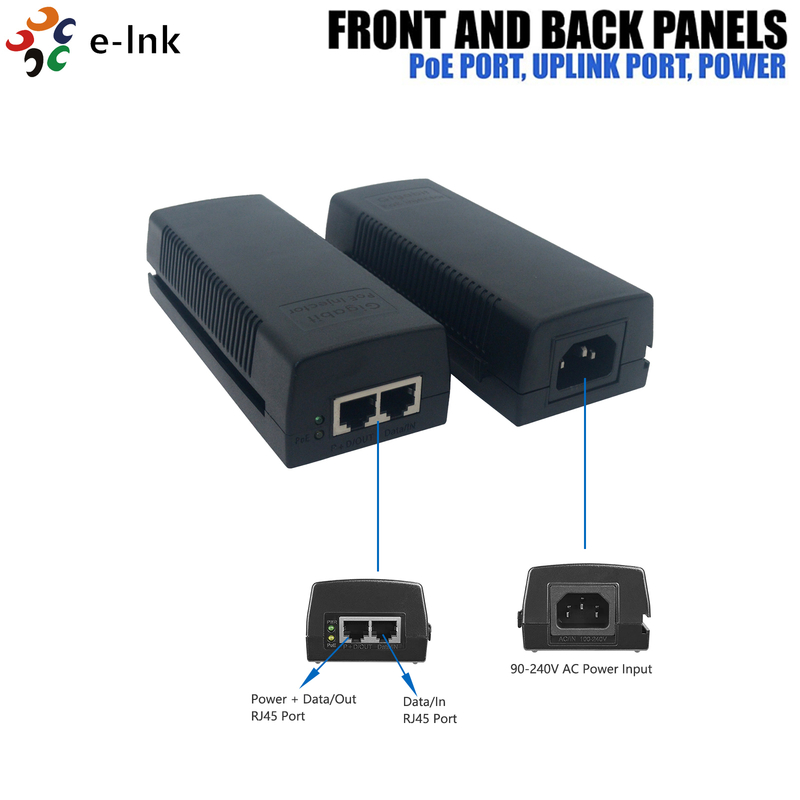

| Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port
POE: 1 x RJ-45 STP, “Data + Power” Output Port
AC Connector: 1 x AC Input power socket, IEC-60320 C13
|
| Environmental |
| Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
| Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF: |
>200,000hrs |
| Electrical and Mechanical |
| Input Voltage Range: |
100-240V AC @50/60Hz. |
| Output Voltage: |
DC 48V |
| Power Consumption: |
30 watts max. |
| PoE (Power over Ethernet) |
| Standard: |
IEEE 802.3af |
| |
IEEE 802.3at |
| Port: |
RJ45 |
| Pin Assignment |
Data provide over pairs 1/2(+) and 3/6(-)
Power over spare pairs 4/5(+) and 7/8(-)
|
| PoE Power Output |
DC 48V/30-watt PoE via 2-pairs |
| LED Indicators |
| Power: |
Power Status |
| PoE: |
PoE Status |
| Dimensions (W×D×H): |
145 x 58 x 39mm |
| Weight: |
0.25Kg |
| Casing: |
Plastic Case |
| Mounting Options: |
Desktop |
| Regulatory Approvals |
| ISO9001 |
| FCC part 15, Class A |
| EN55022:2006+A1: 2007 Class A |
| Surge Protection: |
| RJ45: 1KV |
| Power: 500W |
| ESD: 4KV/8KV |
10/100M PoE Injector Application
10/100M PoE Injector Ordering Information
| Model |
Description |
| LNK-POE200AT |
PoE Injector with Power Cord: 10/100Mbps, IEEE 802.3af 30W |
