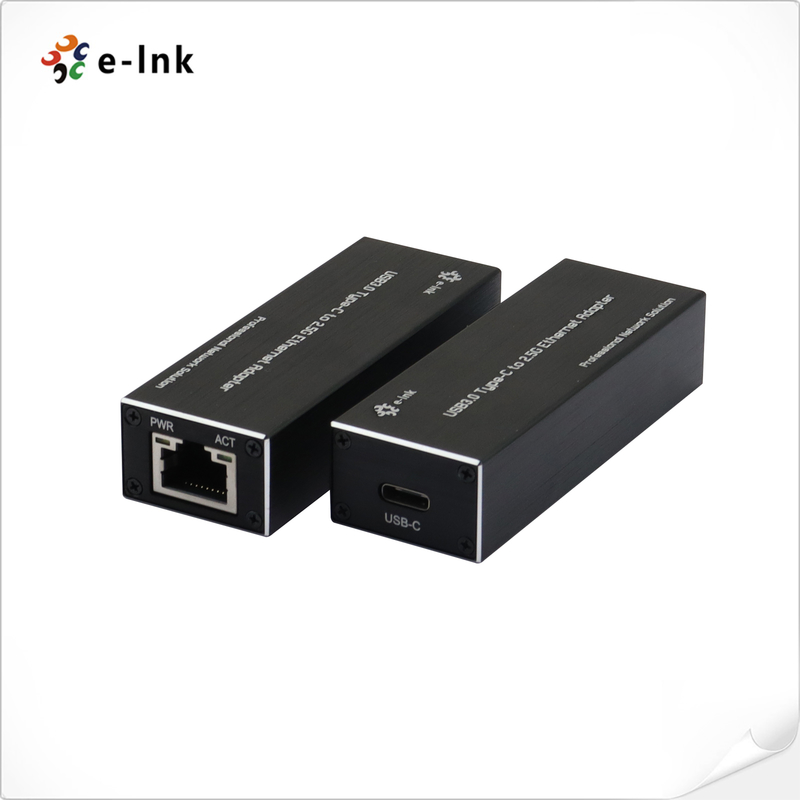

Micro Mini USB 3.0 to 2.5G Ethernet NIC Network Adapter

Name: Micro Mini USB 3.0 to 2.5G Ethernet NIC Network Adapter
Brand: E-link China Technology Co.,LTD
SKU: LNK-IPE104-90
Price: 57.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: FCC Class A, CE, RoHS

Model Number: LNK-IPE104-90

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Size:	78 X 27 X 18 Mm	Operating Temperature:	0°C ~ 60°C (32° ~ 140°F)
Weight:	46g	Mounting Options:	Desktop
Casing:	Aluminum Case

Product Size:	78 X 27 X 18 Mm
Operating Temperature:	0°C ~ 60°C (32° ~ 140°F)
Weight:	46g
Mounting Options:	Desktop
Casing:	Aluminum Case

Description

Micro Mini USB 3.0 to 2.5G Ethernet NIC Network Adapter

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)

Product Advantages

► 1 x 10/100/1000M/2.5Gbps RJ45 Slot + 1 x TYPE-C USB3.0 Slot

► Supports Gigabit networking over USB 3.0

► IEEE 802.3, 802.3u, 802.3ab, 802.3bz (10BASE-T, 100BASE-TX, 1000BASE-T, 2.5G BASE-T) compatible

► Powered directly from the USB ports

► Crossover Detection & Auto-Correction (Auto MDIX)

► IEEE 802.1Q VLAN Tagging support

► Jumbo Frame support

► Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload

► Activity and Link LED indicators

► Compact, lightweight design for maximum portability

Overview

E-link LNK-TCU2500 Series USB-C Network Interface Card designed for Laptop/PC/Tablet that with Type-C interface and need to access Fast and Stable internet through UTP Cable. With this USB-C LAN Card, Network Connection is more stable and quicker than Wifi access. It can offer 2.5Gbps Internet access, It provides up to 2.5Gbps full-duplex bandwidth capacity. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking for users in a standard-based environment.

Technical Indexes

Specifications
Standards:	IEEE 802.3 10BASE-T
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000BASE-T Gigabit Ethernet
	IEEE 802.3bz2.5GBASE-T Gigabit Ethernet
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.1q VLAN tagging
Chipset ID:	Realtek RTL8156B
Network Transfer Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
	3,720,000pps (2.5Gbps)
Jumbo Frame Support:	9K max.
Other:	Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
Software
OS Compatibility:	Windows® XP, Vista, 7, 8, 8.1, 10, 11 Windows® Server 2008 R2, 2012, 2012 R2, 2016, 2019 MacOS 10.8 to 10.15, VLAN tagging is currently not supported in macOS Linux Kernel up to 5.17 UEFI UNDI
Interface
USB:	1x USB-C 3.0
RJ45:	1 x RJ-45 10/100/1000M/2.5Gbps LAN port
Electrical and Mechanical
Power:	USB Bus Powered
Power Consumption:	5W Max.
LED Indicators:
L/A:	Link/Activity
Dimensions (LxWxH):	78 x 27 x 18 mm
Weight:	46g
Casing:	Aluminum Case
Mounting Options:	Desktop
Environmental
Operating Temperature:	0°C ~ 60°C (32° ~ 140°F)
Storage Temperature:	-10° ~ 70°C (14° ~ 158°F)
Relative Humidity:	5% to 90% non-condensing
MTBF	> 100,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

Ordering Information

Model	Description
LNK-IPE104-90	Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
