8-Port 60W PoE++ Injector Support IEEE802.3af/at PD

Name: 8-Port 60W PoE++ Injector Support IEEE802.3af/at PD
Brand: E-link China Technology Co.,LTD
SKU: LNK-PSE80GH
Price: 151.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, ROHS, FCC

Model Number: LNK-PSE80GH

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $4.9-299

Packaging Details: HDMI Fiber PoE Injector Standard Carton Packaging

Delivery Time: 1-3 working days

Payment Terms: T/T,Western Union,,PayPal

Supply Ability: 1000/Month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      8-port PoE++ injector with 60W power, PoE injector adapter IEEE802.3af/at compliant, 60W PoE++ injector for PD devices


Input ::	176-265Vac 4.0A 50/60Hz	Output::	55VDC 1100mA
Power Pins::	4/5(+), 7/8(-) & 3/6(+),1/2(-)	Safety Approvals:	CE, FCC
Storage Temperature::	-20℃ To 70℃	Size::	435mm X 225mm X 44.5mm

Input ::	176-265Vac 4.0A 50/60Hz
Output::	55VDC 1100mA
Power Pins::	4/5(+), 7/8(-) & 3/6(+),1/2(-)
Safety Approvals:	CE, FCC
Storage Temperature::	-20℃ To 70℃
Size::	435mm X 225mm X 44.5mm

Description

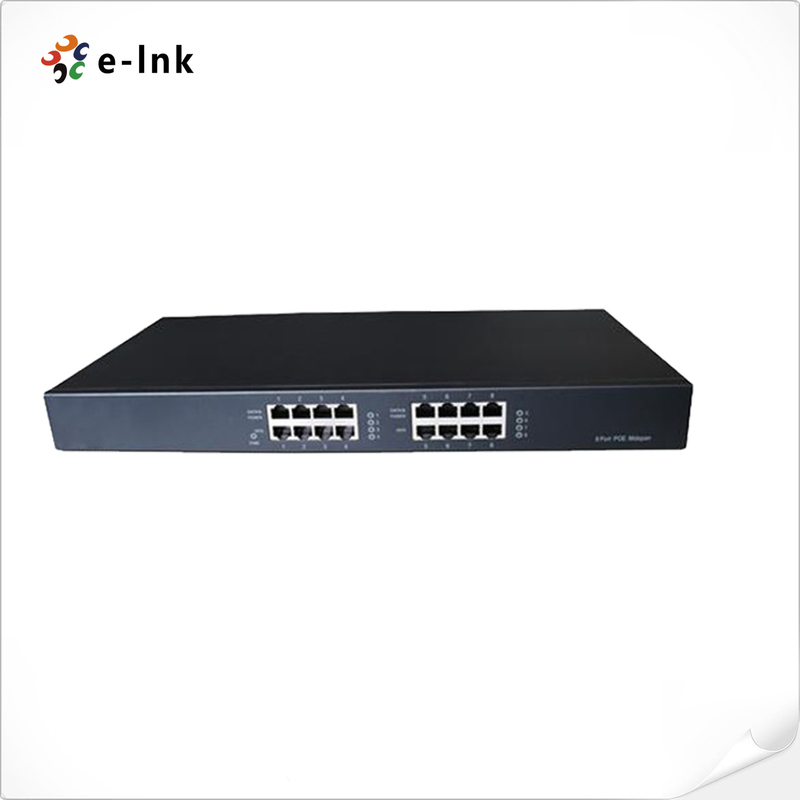

8-Port 60W PoE++ Injector Support IEEE802.3af/at PD

8-Port 60W PoE++ Injector

Model : LNK-PSE80GH

Overview

The LNK-PSE80GH/LNK-PSE801GH series is an economical 8-Port 60W PoE++ Injector (PoE midspan),

featuring a high-impact metal case for enhanced durability in indoor deployments. As a dedicated 8-Port

60W PoE++ Injector, it integrates 8 independent power-data transmission ports, each delivering up to 55

VDC at 1.1A (equivalent to ~60W output, aligning with PoE++ high-power specifications) to remote powered

devices (PDs), while supporting 10/100/1000Mbps gigabit data speeds for seamless high-bandwidth communication.

This 8-Port 60W PoE++ Injector excels in powering both standard and high-power PDs: it fully supports 30W

PoE+ (IEEE 802.3at) devices and is backward compatible with IEEE 802.3af equipment, while its 60W PoE++

capability caters to power-hungry terminals like 4K network cameras with AI analytics, dual-band WiFi 6E access

points, enterprise IP videophones with touchscreens, and industrial IoT gateways. The LNK-PSE801GH model,

tailored for indoor use, operates with a wide input voltage range of 176-265Vac, adapting to fluctuating mains

power in diverse environments.

A core safety advantage of the 8-Port 60W PoE++ Injector lies in its built-in intelligent detection chip: it automatically

detects and classifies PDs before powering on, refusing to supply power until a standard-compliant device is identified

—eliminating risks of damage from mismatched equipment or short circuits. It supports long-distance power-data co-

transmission up to 100 meters via Cat5e/Cat6 cables, leveraging existing Ethernet infrastructure to avoid extra power

wiring costs.

Designed for flexible deployment, this 8-Port 60W PoE++ Injector supports plug-and-play operation with

three installation modes: desktop, rack-mounted, or wall-mounted—suited for network cabinets, office corners,

or wall-mounted surveillance setups. Whether deployed in medium-sized enterprise wireless networks, retail

store security systems, or school campus communication clusters, it balances 60W high-power output, 8-port

density, and gigabit transmission to deliver a cost-effective, future-proof PoE solution.

Features

► 8 ports, total output 480W, per port 60W

► Active PoE Midspan, IEEE802.3at, with detection chip

► Support IEEE802.3af/at PD

► Stand-alone 8-port PoE Midspan, ideal for deployment of IP camera and Wireless network upgrades

► Can detect the PD if support IEEE802.3af/at standard with detection chip inside. If yes, then output 55VDC; or stop work to protect the PD from destroy

► Delivering up to 60W of power per port

► IEEE802.3at compliant and is ideal for deployments Ethernet end-devices are being deployed

Technical Indexes

Parameter	Specifications
Standard	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at RoHS Compliance WEEE Compliance
Input & Output	Input :176-265Vac 4.0A 50/60Hz Output: 55VDC 1100mA Power Pins: 4/5(+), 7/8(-) & 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps
Working Environment	Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters
AC Surge Protection	1.0KV (5P/5N) L-N 1.2/50 (8/20) Tr/Th us 2.0KV (5P/5N) L-PE 1.2/50 (8/20) Tr/Th us N -PE
Mechanical Characteristics	Case: Metal
	Color: Black
	Mounting: Rack-mounted / Wall-mounted
	IP Rated: IP20
	Size: 435mm X 225mm X 44.5mm
	Weight: 3.5kg
Safety Approvals	CE, FCC
EMI	FCC CFR47 Part 15, EN55024, EN55032
EMS	IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity	IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall)
LED Indicator	Power Indicator: Green PoE Load Indicator: Green

Ordering Information

Model	Decription
LNK-PSE801GH	8-Port 60W High PoE Injector: 55VDC/60W per port/1000Mbps/4,5(+), 7,8(-)&3,6(+),1,2(-)

Application

8-Port 60W PoE++ Injector Support IEEE802.3af/at PD
