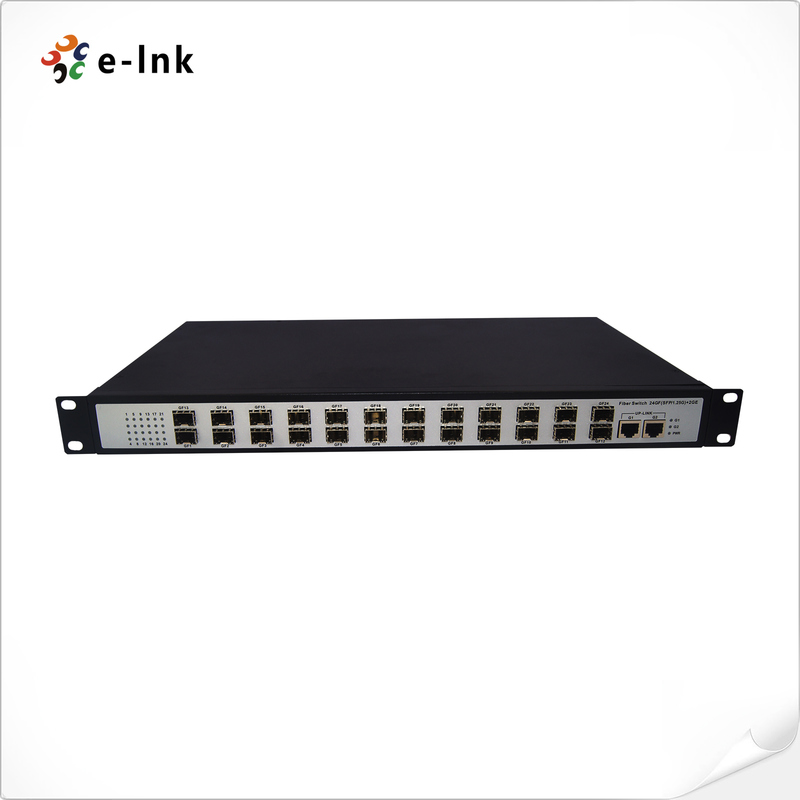

Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Switch

Name: Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-FS242
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-FS242

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Working Temperature:	-10°C To 60°C	Storage Temperature:	-40°C To 85°C
Humidity:	5% To 95% Non-condensing	Dimension:	485 X 235 X 45 Mm
Weight:	2560g	Casing:	Metal Case, IP40 Protection

Working Temperature:	-10°C To 60°C
Storage Temperature:	-40°C To 85°C
Humidity:	5% To 95% Non-condensing
Dimension:	485 X 235 X 45 Mm
Weight:	2560g
Casing:	Metal Case, IP40 Protection

Description

Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Switch

Advantages

► 24x100Base-FX SFP Ports + 2x10/100/1000Base-TX Ports

► Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDI-X at TX

► Supports external 100BASE SFP hot swap

► Supports 8K MAC address

► 1M bits frame buffer memory

► 19-inch 1U Rack

► Operating Temperature: -10°C to 60°C

► 110~240VAC Power Inputs

► Aluminum Case

► Lightning Protection Design

► 3-Year Warranty

Overview

Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Fiber Switch

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE802.3u 100BASE-FX
	IEEE802.3ab 1000BASE-T
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Processing Type:	Store-and-Forward
Max Packet Length:	1522 Bytes
Address Table Size:	8K MAC Addresses
RJ45 Port	2*10/100/1000Base-T(X)
Optical Port:	24*100Base-X SFP
Environmental
Operating Temperature:	-10°C to 60°C
Storage Temperature:	-40°C to 85°C
Relative Humidity:	5% to 95% non-condensing
Electrical and Mechanical
Input Power:	110~220VAC
Power Consumption:	25W Max. ( Off-load)
Power Consumption:	40W Max. (Full load)
Dimensions (WxDxH):	485 x 235 x 45 mm
Weight:	2560g
Casing:	Metal Case, IP40 protection
Regulatory Approvals
ISO9001
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV
