3G-SDI Fiber Converter HD-SDI 80km 1000M Optical Transmission

Model: LNK-HD-110 & LNK-3G-110 Series

 Product Description & Overview

The 3G/HD-SDI to Fiber Converter provides a reliable and high-performance solution for transmitting

professional broadcast video over long distances. This system is designed to support a single channel

of 3G-SDI or HD-SDI video with embedded audio, along with a reversed RS422/485 data channel for

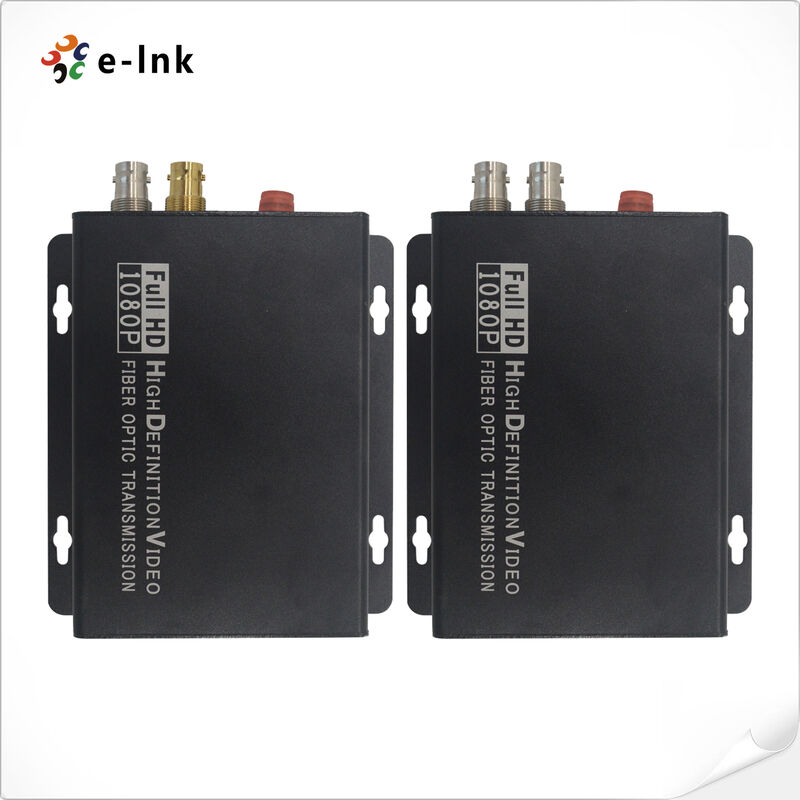

control signals, all through a single optical fiber. The package includes a matched transmitter and

receiver pair, engineered to deliver pristine 1080P video quality while ensuring full compatibility with

SMPTE standards for uncompressed digital video transport.

With its advanced all-digital fiber optic transmission technology, this converter guarantees signal

integrity by eliminating electromagnetic interference, ground loops, and common issues associated

with traditional copper cabling. The integrated local loop-through output allows for immediate on-site

signal monitoring, enabling technicians to verify video quality and system status without disrupting

the main transmission path. This feature is particularly valuable in live production environments

where real-time verification is crucial for maintaining broadcast reliability.

This versatile converter is ideal for a wide range of professional applications, including broadcast

studio links, outside broadcast (OB) vehicles, sports venue production, and high-security surveillance

systems. Its robust design and plug-and-play operation make it equally suitable for permanent

installations and mobile setups. By converting electrical SDI signals to a robust optical format,

the system provides a future-proof foundation for expanding video networks, offering broadcasters,

integrators, and production teams a dependable method to extend signal reach without compromising

on the broadcast-quality performance required in today's demanding video landscape.

Key Features Bullets

• High-Capacity Embedded Audio
  Supports 8-channel embedded audio per SDI channel for integrated broadcast audio-video transmission.

• Intelligent Signal Integrity Management
  Automatic cable equalization ensures optimal performance and maintains signal integrity over distance.

• Precision Multi-Rate Clock Recovery
  Automatic reclocking across 270 Mbps, 1.48 Gbps, and 3 Gbps data rates for stable signal regeneration.

• Professional Camera System Compatibility
  Direct plug-and-play operation with industry-standard HD-SDI and 3G-SDI camera systems.

• Flexible Long-Haul Transmission
  Supports distances from 10 km to 80 km, adaptable for various application requirements.

• Robust Power & Maintenance Design
  Terminal block power input with hot-swap and hot-plug support for uninterrupted operation.

• Broadcast-Grade Video Quality
  Full digital non-compression transmission ensures studio-level, lossless video quality.

• Advanced Optical Performance
  Superior optical dynamic range with no manual adjustment required for optimal clarity.

• High-Density Wavelength Multiplexing
  Supports fiber optic WDM, CWDM, and DWDM techniques for efficient bandwidth utilization.

• High-Speed Optical Data Link
  1000M optical fiber transmission provides a future-ready backbone for network upgrades.

• Industrial-Grade Environmental Resilience
  Ultra-broad operating temperature range from -40℃ to +85℃ for deployment in extreme conditions.

Technical Specifications & Indexes

Ordering Information

Application Scenarios

• Professional broadcast studio and OB van links

• Long-distance live event production systems

• High-resolution security and surveillance networks

• Sports venue and stadium video distribution

• Industrial monitoring with HD video feedback
