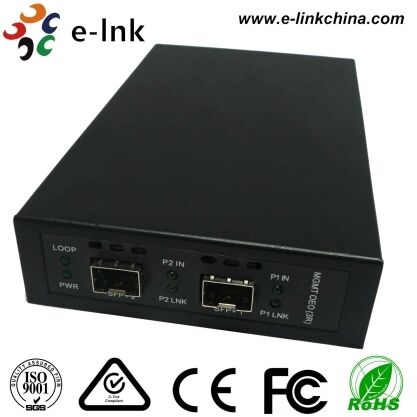

125M~4.25G OEO Converter (3R Repeater)

Name: 125M~4.25G OEO Converter (3R Repeater)
Brand: E-link China Technology Co.,LTD
SKU: LNK-OEO-FG
Price: 185.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-OEO-FG

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $170-200

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,L/C,Paypal,Alibaba

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Operating Temperature::	0 To 50℃	Maintaining Temperature:	-10~70ºC
Equipment Function:	3R Repeater	Power Requirement:	AC 220V OR -48V
Power:	≤ 3W	Size:	156mm （ W ）× 128mm （ D ）× 32mm （ H ）

Operating Temperature::	0 To 50℃
Maintaining Temperature:	-10~70ºC
Equipment Function:	3R Repeater
Power Requirement:	AC 220V OR -48V
Power:	≤ 3W
Size:	156mm （ W ）× 128mm （ D ）× 32mm （ H ）

Description

125M~4.25G OEO Converter (3R Repeater)

125M~4.25G OEO Converter (3R Repeater) Advantage

► Support 2U Rack(16 Slots )and independent use

► support network management(Web SNMP, Console),

► Support in-band management

► support ITUT prescribed DWDM/CWDM wavelength

► transmission rate:125Mbps~4.25Gbps

► 3R function.

► Support Jumbo Frame

► Transparent Transport and very low delay

► support DMI function for SFP fiber module

► support Loopback test function

► Support PRBS Generator and checker

► support hot plugging

► Full State Led display

► Easy installation

125M~4.25G OEO Converter (3R Repeater) Overview

E-link Standalone 125M~4.25G OEO Converter (3R Repeater) with SFP Slot to SFP Slot, , which uses optical -electricity – optical conversion principle to realize optical signal regeneration , enabling of the optical signal amplification and regeneration, re-timing and wavelength conversion , with coarse / dense wavelength division multiplexing together to realized WDM transmission . It is now possible to quickly improve communication capacity , expand the bandwidth on present network , while using low-cost, high cost-effective solutions to manage and run the system , easy operation.

125M~4.25G OEO Converter (3R Repeater) Technical Indexes

Performance Data	Technical Indexes
Equipment function	3R Repeater
Access Type / Transmission Speed	Fast Ethernet	125Mbps
	STS-3/STM-1	155.52Mbps
	ESCON/SBCON	200Mbps
	STS-12/STM-4	622.08Mbps
	1×Fiber Channel	1.0625Gbps
	Gigabit Ethernet	1.25Gbps
	2×Fiber Channel	2.125Gbps
	STS-48/STM-16	2.48832Gbps
	2.5 InfiniBand or PCI Express	2.5Gbps
	4×Fiber Channel	4.25Gbps
Interface Type	SFP to/from SFP
Transmission Distance	Up to SFP module ( Max 80Km )
Local SFP	Support SFP/CWDM/DWDM,Specific optical parameters please refer different modules's parameters
Remote SFP	Support SFP/CWDM/DWDM,Specific optical parameters please refer different modules's parameters
power requirement	Rack-mountable : AC 85 ～ 220V OR DC -48V dual-supply,optional Standalone: AC 220V OR -48V Power consumption: ≤ 3W
Work environment	Operating Temp: 0 ～ 50 ℃ Storage Temp: -10 ～ 70 ℃ Humidity: 5%~90% ( non-condensing )
Dimension	Card : 115mm ( W )× 78mm ( D ) Standalone : 156mm ( W )× 128mm ( D )× 32mm ( H )

125M~4.25G OEO Converter (3R Repeater) Ordering Information

Model	Description
LNK-OEO-FG	125M~4.25G OEO Converter (3R Repeater)
