Mini HD-SDI over Fiber Extender

Name: Mini HD-SDI over Fiber Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-MHD Series
Price: 32.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-Link

Certification: ISO9001，ROHS，FCC，CE

Model Number: LNK-MHD Series

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: $25~39 / Pcs

Delivery Time: 3-5 Working Days

Payment Terms: T/T

Supply Ability: 3000 Pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Color:	Black	MOQ:	1 Pair
Warranty:	3 Years

Color:	Black
MOQ:	1 Pair
Warranty:	3 Years

Description

Mini HD-SDI over Fiber Extender

Features

► Each channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Terminal block power input; Hot swap and hot plug;

► Full digital non-compression broadcast level transmission;

► Super optic dynamic range and free of adjustment;

► Fiber optic WDM/CWDM/DWDM technique;

► Industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

Overview

LNK-MHD Series Mini HD-SDI Fiber Extender supports 1-channelHD-SDI Video (audio embedded) signal transmitted via fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for HD-SDI signal. With compact size, it can easily integrate in other devices. It’s widely used in surveillance and broadcasting area.

Odering information

Model	Description
LNK-MHD-MM	Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-20	Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

Technical indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 1.48Gb/s
Differential gain (10%～90% APL)	<1%
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
Video SDI standard	270Mbps (SD-SDI)
	1.485Gbps (HD-SDI)
Electrical
Power adaptor	5V DC, Type-C Interface
Power consumption	<3W
LED Indicator
SDI	SDI video
P/T	Power Supply
Mechanical
Dimensions (LxWxH)	79 x 27 x 18 mm
Weight	0.5KG/pair
Casing	Aluminum Case
Mounting Options	Desktop
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Operating humidity	5%~90% non-condensing
Storage humidity	5% ~ 90% non-condensing
MTBF	≥100000 hours

Pictures

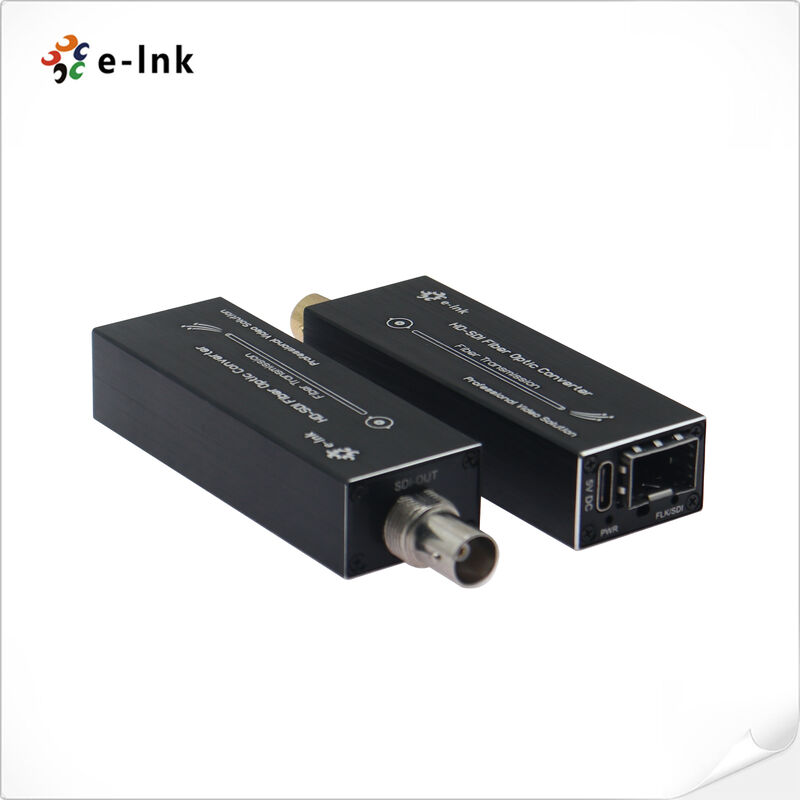

Mini HD-SDI over Fiber Extender 0

Mini HD-SDI over Fiber Extender 1
