AI Smart Managed 60W Industrial PoE++ Injector with 9–54V Voltage Booster for Harsh Environments

Name: AI Smart Managed 60W Industrial PoE++ Injector with 9–54V Voltage Booster for Harsh Environments
Brand: E-link China Technology Co.,LTD
SKU: LNK-AINJ301M60
Price: 49.99 USD
Availability: InStock

Product Details

Place of Origin: Guangdong

Brand Name: E-link

Certification: CE、Fcc、ROHS

Model Number: LNK-AINJ301M60

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 49.99

Packaging Details: carton box

Delivery Time: 3-7days

Payment Terms: T/T,Western Union

Supply Ability: 10000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          60W Industrial PoE++ injector, PoE++ injector with voltage booster, Industrial PoE injector for harsh environments


Ports:	≤ 8,24,5,10,12	Input Voltage:	9–54V
PoE Power Output:	60W Max	Operating Temperature:	-40°C ~ +75°C
Dimensions:	98 X 67 X 46 Mm	Weight:	300g
Lightning Protection:	6KV Full-port

Ports:	≤ 8,24,5,10,12
Input Voltage:	9–54V
PoE Power Output:	60W Max
Operating Temperature:	-40°C ~ +75°C
Dimensions:	98 X 67 X 46 Mm
Weight:	300g
Lightning Protection:	6KV Full-port

Description

AI Smart Managed 60W Industrial PoE++ Injector with 9–54V Voltage Booster for Harsh Environments

AI Smart Managed 60W Industrial PoE++ Injector | 9–54V Voltage Booster IEEE802.3af/at/bt Gigabit PoE Injector

Key Features

9-54V wide DC input with built-in voltage booster
Single 10/100/1000Mbps Gigabit PoE++ injector port
Fully compliant with IEEE 802.3af/at/bt, max 60W PoE budget
AI intelligent management via Android App & PC Web UI
Onboard LED screen for real-time voltage, current & temperature readout
Switchable PoE Mode A/B, support scheduled PoE & system reboot
6KV full-port lightning surge protection
Industrial wide temperature range: -40°C ~ +75°C
Compact IP40 aluminum alloy housing
DIN-rail mounting bracket included
Dual redundant forwarding with auto link recovery
Customized hardware compatible with Starlink Gen2/Gen3

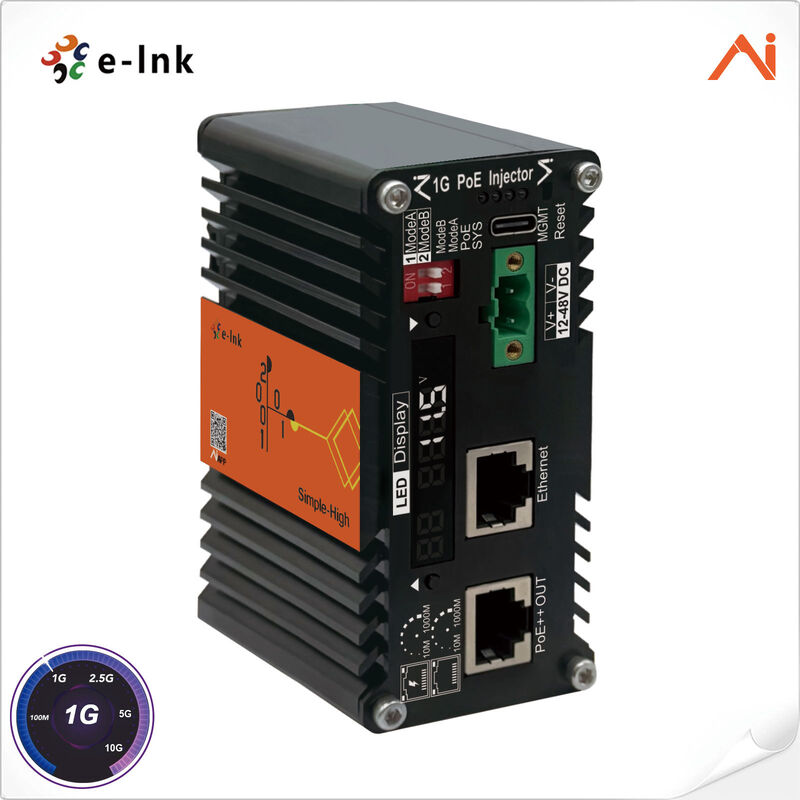

Product Overview

The LNK-AINJ301M60 Mini Industrial PoE++ Injector adopts self-developed AI management system paired with an internal boost circuit, accepting 9-54V wide-range DC input while delivering full 60W IEEE 802.3af/at/bt compliant PoE++ power. Users can track operational metrics and adjust device parameters through Android App or web dashboard, including live LED data display, PoE Mode A/B toggle and timed automatic reboot functions.

Fitted with IP40 compact aluminum shell, 6KV all-port surge defense and dual redundant link recovery hardware, this unit maintains consistent performance across -40°C to +75°C extreme temperatures for industrial field and outdoor networking projects. Special customized models matching Starlink Gen2 and Gen3 terminals are supplied on demand.

Key Selling Points

3-in-1 Visual Intelligent Monitoring with Onboard LED Screen

Equipped with E-link self-developed AI intelligent management system, this unit supports equipment status monitoring via three access channels: Android mobile APP, PC Web UI and built-in LED screen, with no extra test tools required. The LED screen allows one-click access to real-time operating parameters including voltage, current, internal temperature, Ethernet port link speed and PoE output power. The lightweight intuitive graphical UI lowers operation barriers, enabling field maintenance staff without professional network expertise to rapidly complete on-site debugging and troubleshooting.

9-54V Wide-Voltage Booster & Industrial-Grade Rugged Protection

Built-in voltage booster module accepts full 9~54V DC wide input. It delivers stable 60W PoE++ power complying with IEEE802.3bt standard regardless of 12V/24V/48V input power supply. The device features an IP40-rated aluminum alloy housing, 6KV lightning surge protection on all ports, and stable operation under extreme temperatures ranging from -40°C to 75°C. Adopting dual redundant mode with auto-recovery function, it ensures 24/7 non-stop stable transmission. Customized versions compatible with Starlink Gen2 and Gen3 terminals are available on demand.

Applications

Intelligent Manufacturing & Industrial Automation: Ideal for interconnection of factory automation equipment. It supplies stable power and data transmission to industrial cameras, sensors and PLCs, and supports real-time monitoring of network status to guarantee smooth data exchange on production lines.
Power & New Energy Sites: Suitable for solar power stations, wind farms and energy storage systems. Its 9-54V wide DC input is compatible with battery power, delivering reliable PoE power and data transmission for surveillance cameras and cluster communication terminals.
Rail Transit, Tunnel & Mining Projects: Equipped with wide temperature tolerance (-40°C ~ +75°C) and 6KV full-port lightning surge protection, it realizes steady power and data transmission for tunnel monitoring, underground mining video surveillance and railway signal equipment.
Smart City & Outdoor Starlink Deployment: Perfect for outdoor cabinets, roadside monitoring and field base stations with stable 60W PoE++ power supply. Customized versions compatible with Starlink Gen2 and Gen3 terminals are available for outdoor satellite network deployment.

PoE Standards Parameters

PoE Standards	Input (V)	Current (A)	Output (V)	Power (W)	PoE Pin	Mode
IEEE802.3af/at/bt	9-12	5	48V	60	1/2(+),3/6(-); 4/5(+),7/8(-)	Mode A&B
IEEE802.3af/at/bt	19-24	5	48V	60	1/2(+),3/6(-); 4/5(+),7/8(-)	Mode A&B
IEEE802.3af/at/bt	48-54	5	48V	60	1/2(+),3/6(-); 4/5(+),7/8(-)	Mode A&B
Starlink PoE Gen2	48-56	2.67	56	150	1/2(+),3/6(-); 4/5(+),7/8(-)	-
Starlink PoE Gen3	48-56	3.57	56	200	1/2(+),3/6(-); 4/5(+),7/8(-)	-

Technical Specifications

Access Mode:

10/100/1000BASE-T RJ45 to 10/100/1000BASE-T RJ45 PSE IEEE802.3af/at/bt

Ethernet Standards:

IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Switching Capacity:

10 Gbps/non-blocking

PC Support:

MacOS and Windows with Microsoft Edge 89+, Google Chrome 89+, Opera 75+

Mobile App Support:

Android Mobile Phone and Android Tablet (iOS not supported)

Ethernet Port:

1-Port 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X

PoE Standard:

IEEE 802.3af/at/bt PoE++ PSE (af: 15.4W, at: 30W, bt type3: 60W)

PoE Power Output:

60 Watts max.

Input Power:

9~54V DC, 2-pin terminal block

Power Consumption:

5W Max. (When PoE not used)

Dimensions (W x D x H):

98 x 67 x 46 mm

Weight:

300g

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Regulatory Approvals:

ISO9001, CE, FCC Part 15 Class A, RoHS

Ordering Information

Model	Description
LNK-AINJ301M60	Industrial AI Smart Managed 1-Port 10/100/1000BASE-T RJ45 to 1-Port 10/100/1000BASE-T IEEE802.3bt 60W PoE++ Injector, 9V to 54V DC power input, with Voltage Booster.

Mounting Options: Default DIN-Rail bracket included.

Power Options: 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block. Power Supply is to be purchased separately.
