Highlight:
Fiber Port Alarm: |
Support |
Scheduled Reset: |
Support |
Dimensions (W X D X H): |
93 X 71 X 29 Mm |
Mounting Options: |
Desktop Or Mounted On Standard 14 Slots Rack |
Weight: |
100g |
Input Power: |
44~58V DC, 5.5 X 2.1 Mm Power Socket / External AC-to-DC Adapter |
Casing: |
Aluminum Case |
Service Board Status: |
Temperature Voltage Current |
PoE Budget: |
Up To 95W PoE Budget (44-58V DC) |
Operating Temperature: |
-20°C To 70°C (-20°F To 162°F) |

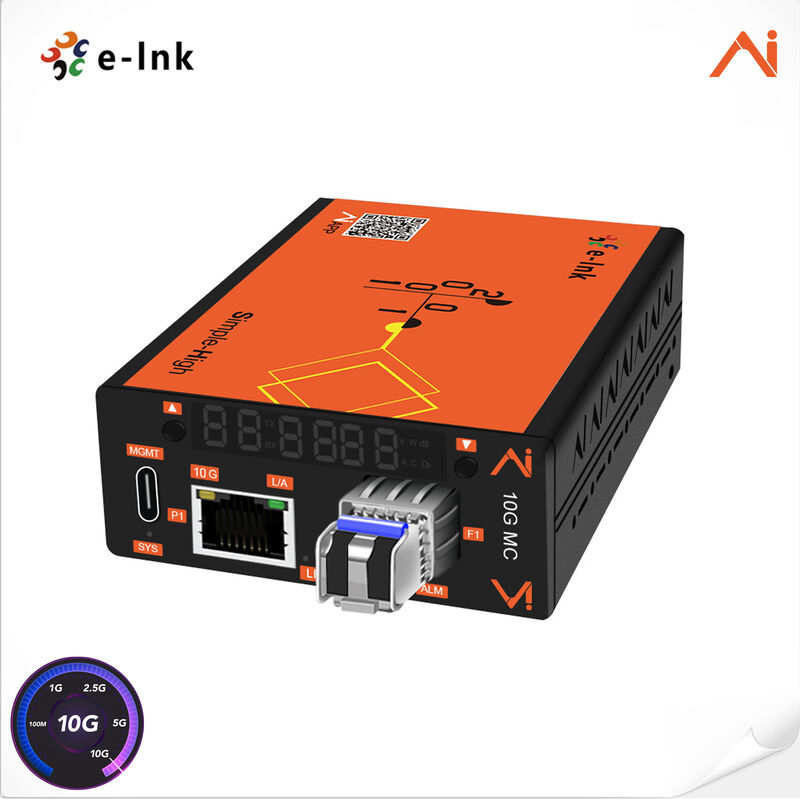

AI Smart Managed 10G/5G/2.5G/1G/100M RJ45 to 10G SFP+ Fiber Media Converter
AI Smart Managed 10G/5G/2.5G/1G/100M RJ45 to 10G SFP+ Fiber Media Converter Overview
The LNK-AI10GM-SFP AI Smart Managed Media Converter is an innovative, independently developed AI-driven device from E-link, designed for high-speed 10G network environments. It enables intuitive management and real-time monitoring through a mobile app or web interface, eliminating the need for external test equipment. Users can access key operational data including power status, SFP+ and Ethernet port conditions, and comprehensive SFP+ module diagnostics such as optical power, wavelength, transmission distance, data rate, and temperature.
Featuring a complete set of functions, streamlined operation, multiple real-time alert mechanisms, and efficient maintenance workflows, this converter significantly reduces both installation complexity and long-term operational costs. It delivers a high-performance, cost-effective line management solution tailored to the demands of high-bandwidth, AI-driven networks.
The converter is widely suitable for a variety of demanding applications, including forest fire prevention systems, water area monitoring, highways, urban roads, rail transit networks, high-end office buildings, petrochemical facilities, and communication and monitoring for automated equipment.
AI Smart Managed 10G/5G/2.5G/1G/100M RJ45 to 10G SFP+ Fiber Media Converter Features
► E-link's newly self-developed mobile APP and PC-based intelligent Web management.
► One-click screen display: System current, voltage, temperature; Optical module transmit power, receive power; Ethernet/Fiber port rates, etc.
► APP/Web management functions: Graphical interface presenting detailed device information; SFP module information and DDM data; User-defined optical power thresholds; User-defined scheduled reboot, etc.
► It moves away from traditional complex management interfaces by featuring a lightweight interface with highlighted key parameters, facilitating on-site debugging and maintenance by non-professionals.
► Ethernet port:
1 x 10M/100M/1000M/2.5G/5G/10G RJ45
► Fiber port: 1 x 1000M/2.5G/5G/10G SFP/SFP+
AI Smart Managed 10G/5G/2.5G/1G/100M RJ45 to 10G SFP+ Fiber Media Converter Technical Indexes
|
AI Smart Managed 10G/5G/2.5G/1G/100M RJ45 to 10GBASE-X SFP+ Fiber Media Converter
|
|
Access Mode
|
10G/5G/2.5G/1G/100M RJ45 to 10GBASE-X SFP+
|
|
Ethernet
|
|
Standards:
|
IEEE 802.3u 100BASE-TX Ethernet standard compliant
|
|
IEEE 802.3ab 1000BASE-T Ethernet standard compliant
|
|
IEEE 802.3bz 2.5G/5GBASE-T Ethernet standard compliant
|
|
IEEE 802.3an 10GBASE-T Ethernet standard compliant
|
|
IEEE 802.3ae 10Gbps Ethernet standard compliant
|
|
Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
|
|
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
|
|
Processing Type
|
Store-and-Forward
|
|
Forward Filter Rate
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
3,720,000pps (2500Mbps)
|
|
7,440,000pps (5GMbps)
|
|
14,880,000pps (10GMbps)
|
|
Fabric
|
20Gbps
|
|
Max Packet Length
|
16K Bytes
|
|
Address Table
|
9K entries, automatic source address learning and aging
|
|
AI Smart Managed Functions
|
|
Service Board Status
|
Temperature
|
|
|
Voltage
|
|
Current
|
|
RJ45 Port Status
|
Link Status
|
|
|
Rate
|
|
LFP Status
|
|
PSE Supply Voltage
|
|
PSE Power Consumption
|
|
Power Pin Assignment
|
|
SFP Port Status
|
Link Status
|
|
|
PN/SN
|
|
TX Power
|
|
RX Power
|
|
All DDM Information
|
|
DIP Switch
|
Dip1
|
LFP
|
|
|
Dip2
|
5G
|
|
Dip3
|
2.5G
|
|
Dip4
|
1.25G
|
|
Fiber Port Alarm
|
Support
|
|
|
Scheduled Reset
|
Support
|
|
|
Interface port
|
|
Ethernet Port
|
10G/5G/2.5G/1G/100M/10M BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X
|
|
Cable: Cat 3/4/5/6/7 UTP Cable
|
|
SFP Port
|
1 x 1000M/2.5G/5G/10G SFP/SFP+
|
|
Cable:
Multi-Mode: 50/125um or 62.5/125um fiber optic cable, distance: 550m/2km;
Single Mode: 9/125um fiber optic cable, distance: 20/40/80/100/120/160/200km
|
|
Electrical and Mechanical
|
|
Input Power
|
5~58V DC, 5.5 x 2.1mm Power Socket
|
|
|
External AC-to-DC Adapter
|
|
Power Consumption
|
3W Max.
|
|
Dimensions (W x D x H)
|
93 x 71 x 29 mm
|
|
Weight
|
100g
|
|
Casing
|
Aluminum Case
|
|
Mounting Options
|
Desktop or mounted on standard 14 slots rack
|
|
LED Indicators
|
|
SYS
|
Blink(green): Running
|
|
Blink(orange): USB data transmission
|
|
P1 10G
|
On: Link up 10G
|
|
Off: No link or Link up 10M/100M/1000M/2.5G/5G
|
|
P1 L/A
|
Solid On: Ethernet port link established
|
|
Blinking: Data transmission
|
|
Off: Ethernet port no link
|
|
F1 L/A
|
Solid On: SFP port link established
|
|
Blinking: Data transmission
|
|
Off: SFP port no link
|
|
F1 ALM
|
Red LED Solid On: Received optical power below threshold
|
|
Orange LED Solid On: Received optical power near threshold
|
|
Off: Received optical power normal
|
|
Environmental
|
|
Operating Temperature
|
-20°C to 70°C (-20°F to 162°F)
|
|
Storage Temperature
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC Part 15 Class A, RoHS
|
AI Smart Managed 10G/5G/2.5G/1G/100M RJ45 to 10G SFP+ Fiber Media Converter Application
AI Smart Managed 10G/5G/2.5G/1G/100M RJ45 to 10G SFP+ Fiber Media Converter Ordeing Information
|
Model
|
Description
|
|
LNK-AI10GM-SFP
|
1 x 1000M/2.5G/5G/10G Base-X SFP+ to 1 x 10/100M/1000M/2.5G/5G/10G BASE-T AI Smart Managed Fiber Media Converter, Include AC-DC Power Adapter
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page.
|
|
► SFP module is to be purchased separately.
|
