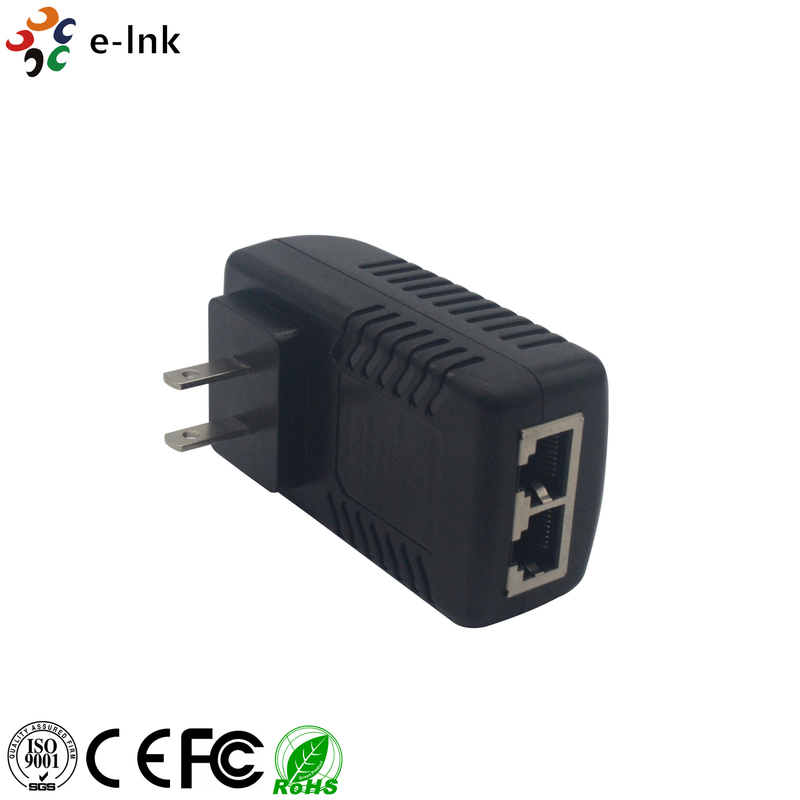

24VDC@2A 48W POE Adapter/Injector

Name: 24VDC@2A 48W POE Adapter/Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE-24-48W
Price: 57.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC

Model Number: LNK-POE-24-48W

Document: LNK-POE-24-48W Series PoE A....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              48W PoE Injector, 2A PoE Injector, Injector Adapter


Operating Temperature::	0~55℃	Operating Humidity ::	90% ,No Condensation;
Case:	Metal Case	Safety Standard:	CE/LVD

Operating Temperature::	0~55℃
Operating Humidity ::	90% ,No Condensation;
Case:	Metal Case
Safety Standard:	CE/LVD

Description

24VDC@2A 48W POE Adapter/Injector

Product Advantages

· Up to 48W of PoE Power

· Supports 10/100M or 10/100/1000M LAN environment

· Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)

· 1 x 10/100Mbps or 10/100/1000Mbps Auto-MDIX Data In port

· 1 x 10/100Mbps or 10/100/1000Mbps PoE Auto-MDIX Data Out port

· Power port

· Power LED indicator

Overview

The LNK-POE-24-48W & LNK-24-48W series Power over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.

Technical Indexes

Ethernet power supply (POE)
POE characteristic	*PoE Power(max):30W
POE characteristic	*one port support POE power supply
Power supply way	*Spare Part to 4/5(+), 7/8(-)
Power supply way	*Data Part to 1/2(+), 3/6(-)
Port and Performance
Port	2 Ethernet front-end ports
Port parameters	*Electrical interface : RJ45
Port parameters	*Cable type :5 kinds of shielded twisted-pair cable(UTP) or higher level
Transmission rate	LNK-POE-24-48W: 10/100Mbps LNK-POE-24-48W-G: 10/100/1000Mbps
Protocol standard	*IEEE802.3 i 10 BASE-T;
	*IEEE802.3 u 100 BASE-TX;
	*IEEE 802.3ab Gigabit Ethernet
	*IEEE802.3 x Flow Control;
LED indicator	Every port : rate, link indicator
Environment and Specification
Environment condition	*Operating Temperature :0~55℃; Storage Temperature : -20~70℃
Environment condition	*Operating Humidity : 90% ,No condensation; Storage Humidity :95%,No condensation
Safety standard	CE/LVD
Other Characteristic
Input Power	110-220V AC
Output Voltage	24VDC @ 2A
Electromagnetic compatibility	*CE Class B
	*FCC Part 15 , Class B
	*VCCI Class B
	*C-Tick

Ordering Information

Model

Description

LNK-POE-24-48W

PoE Adapter, 10/100Mbps, 24VDC @ 1.25A Output Voltage,

30W PoE Power, Input Power 110-220V AC

LNK-POE-24-48W-G

PoE Adapter, 10/100/1000Mbps, 24VDC @ 1.25A Output Voltage,

30W PoE Power, Input Power 110-220V AC
