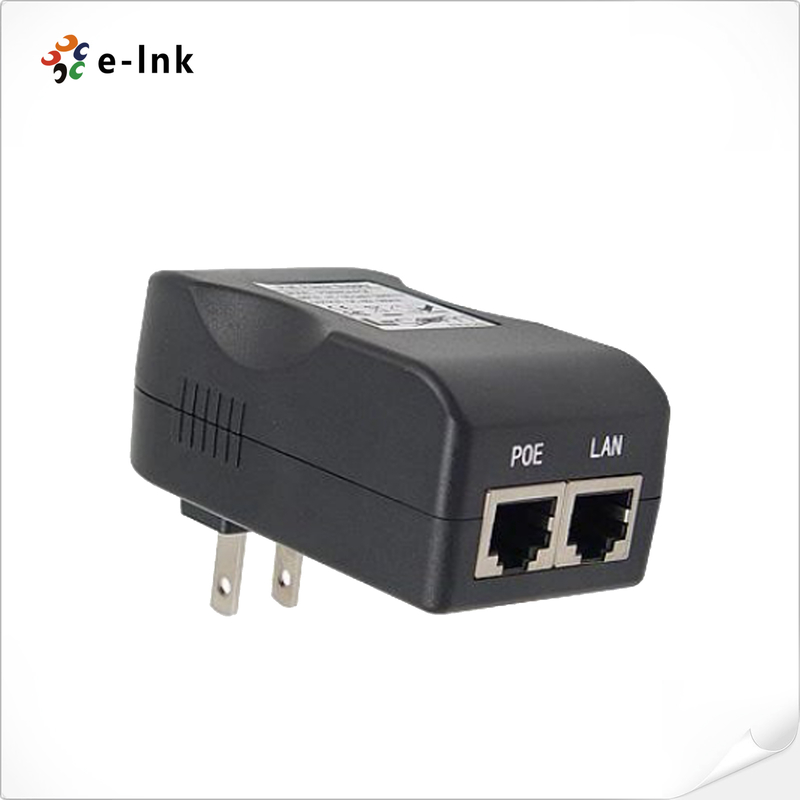

Wall Mount Passive POE Injector

Name: Wall Mount Passive POE Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE200W
Price: 57.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC

Model Number: LNK-POE200W

Document: E-link LNK-PSW Series PoE I....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Wall Mount Passive POE Injector, Passive POE Injector, Wall Mount POE Injector


Operating Temperature::	0 To +40°C (32°F To 104°F)	Size (LxWxH)::	84×47×31mm
Case:	Metal Case	Weight:	120g
Humidity:	Max. 95% RH(non-condensing)	Output Power:	24W/48W Optional

Operating Temperature::	0 To +40°C (32°F To 104°F)
Size (LxWxH)::	84×47×31mm
Case:	Metal Case
Weight:	120g
Humidity:	Max. 95% RH(non-condensing)
Output Power:	24W/48W Optional

Description

Wall Mount Passive POE Injector

95W SFP PoE Injector

Product Advantages

► Compact wall mount design

► No additional power cables required

► Built in protection circuits

► Supports 10/100M or 10/100/1000M LAN environment

► Plug & Play

► No configuration required

► Reduced Installation cost

► Safe and Reliable Power to WLAN Access Points

► Automatic Detection and Protection of Non–standard Ethernet Terminals

Overview

E-link wall mount PoE injector is completely self-contained, a separate power supply and injector is not required. It can be plugged directly into a wall electrical outlet, eliminating the need for additional power cables. The compact size makes it ideal for crowded equipment enclosures.

Technical Indexes

Parameter	Specifications
Data Rate	10/100Mbps 10/100/1000Mbps
Connectors	2xRJ45 Jacks
Input Power	90-240V AC ,50-60Hz
Output Voltage	12V/24V/48V/52V/56VDC optional
Output Current	0.5A/0.8A/0.9A/1.0A/2.0A Optional
Output Power	24W/48W optional
Wiring	• Data provide over pairs 1/2(+) and 3/6(-)
Wiring	• Power over spare pairs 4/5(+) and 7/8(-)
LED Display	YES
Over Load Protection	115%-150% of Rated Power
Operating Temperature	0 to +40°C (32°F to 104°F)
Operating Humidity	Max. 95% RH(non-condensing)
Dimension (LxWxH)	84×47×31mm
Weight	120g

Ordering Information

Model	Decription
LNK-POE200W	Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3af 15.4W
LNK-POE200WT	Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3at 30W
LNK-POE300W	Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3af 15.4W
LNK-POE300WT	Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3at 30W
